CENTURION SYSTEMS D2 Turbo Installation Manual page 28

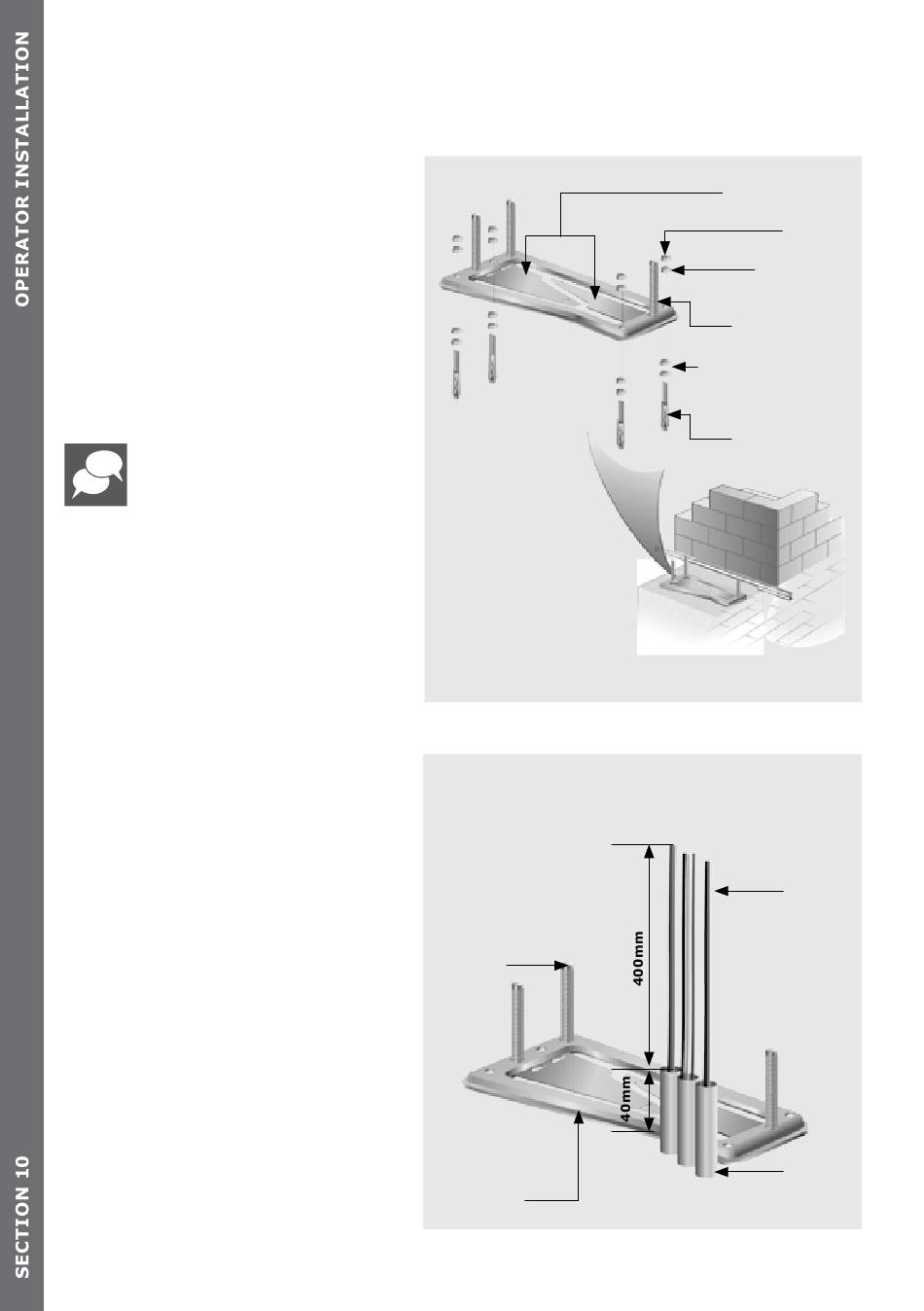

Fit the mounting studs to the
foundation plate and secure in place
with the stud locknuts.
Do not bend out the anchor
brackets.
Route Cables and Secure
Foundation Plate
Route cables as determined in
Section 7, Cabling Requirements.
Make sure that all cables and
conduits protrude at least 400mm
above the foundation plate once
installed.
Securely concrete or bolt the
foundation plate in position.
M10
gearbox
mounting
bolts
Foundation
plate
page 28
Anchor brackets
M10 nut
M10 washer
M10 gearbox
mounting bolts
Use two M12 plated
nuts as spacers
M10 x 95
expansion stud
FIGURE 20
Cables
Conduit
FIGURE 21
