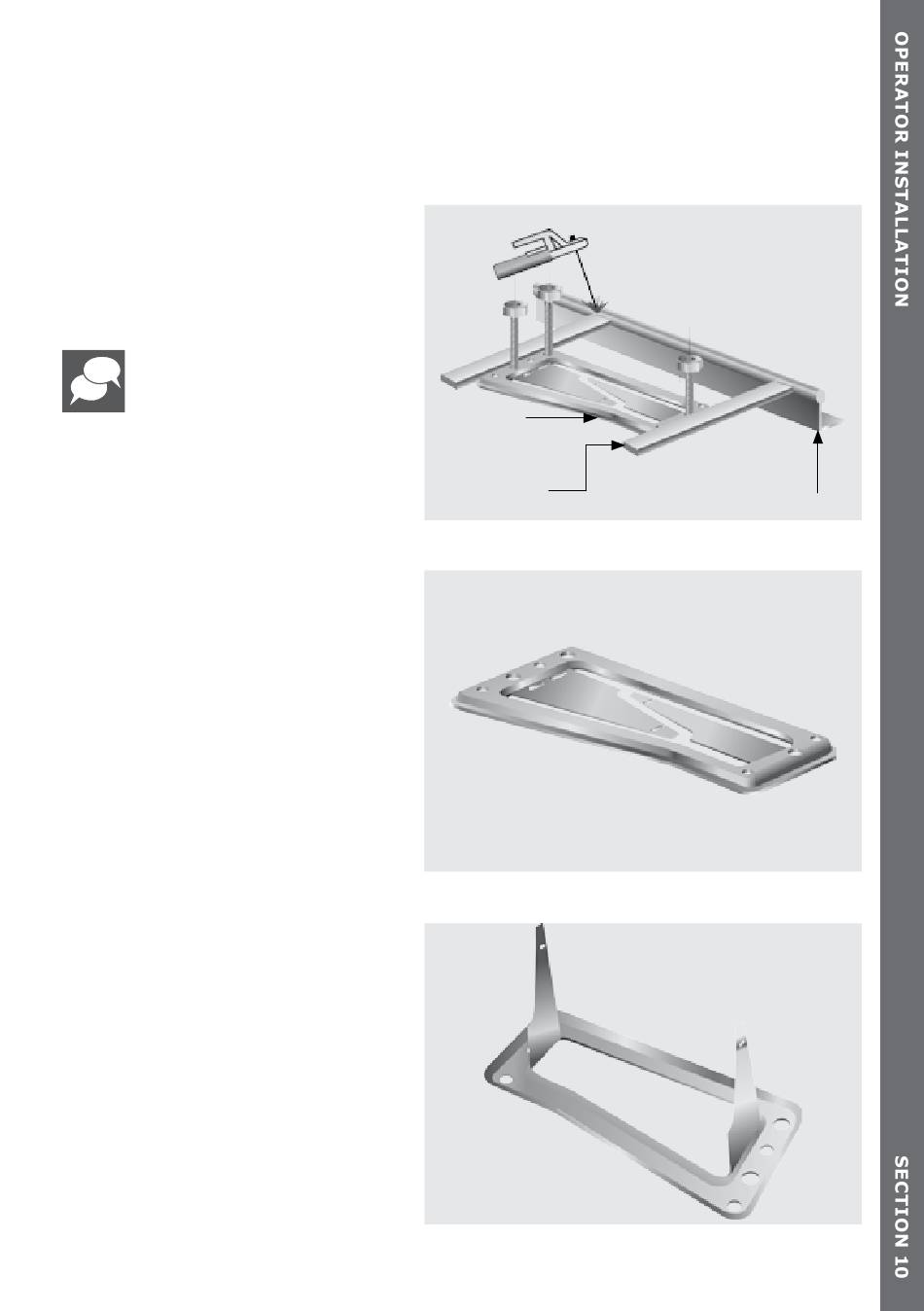

10.1. Foundation plate installation

When using a concrete
foundation it is
recommended that the
foundation plate is welded
to the rail/track of the
gate using short length
of flat bar, as in Figure
11. This makes it possible
to complete the whole
mechanical and electrical
installation, without having
to wait for the concrete to
set. After completing the
installation the concrete can
be poured and the operator
left in the Manual Mode until
the concrete has set.
The foundation plate can either be
set into a concrete foundation, as
in Figures 12 to 18, or bolted down
onto an existing concrete plinth as
shown in Figure 19 and 20.
If the D2 Turbo is being used to
replace a D3 gate operator,
refer to Figures 22 to 27.
Option 1: Cast foundation plate
into concrete
Bend the anchor brackets outwards
as shown in Figure 13.
www.CentSys.com
Foundation
plate
Flat bar welded
to foundation
plate and rail
page 25
Gate rail
FIGURE 11
FIGURE 12
FIGURE 13
