CENTURION SYSTEMS D2 Turbo Installation Manual page 39

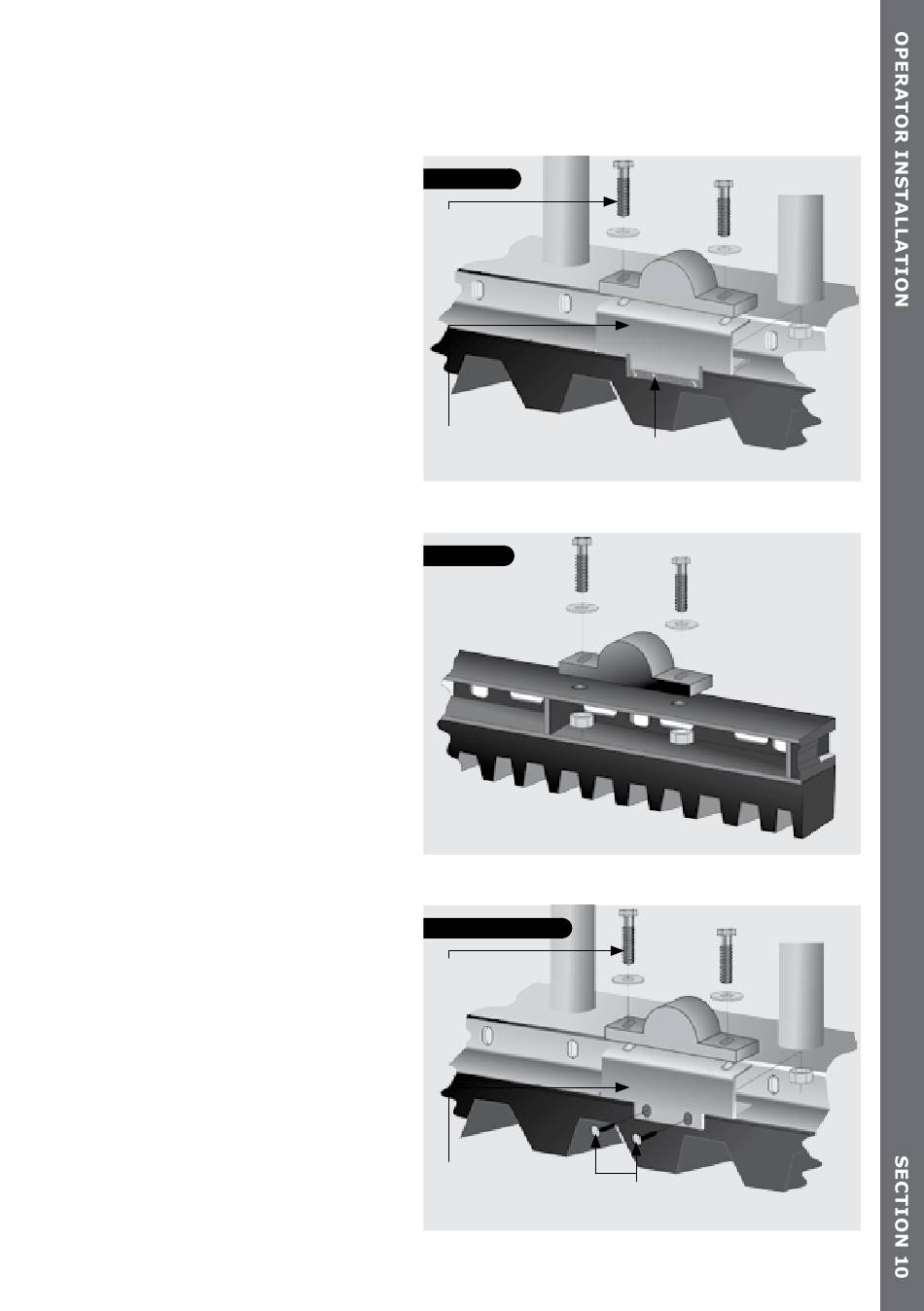

For the steel rack, mount the origin
marker onto the rack using the
bracket provided.
Weld the bracket to the rack.
Bolt the origin marker onto the
bracket using the fasteners provided.
With RAZ rack the origin marker
mounts directly on top of the rack
without a bracket.
Drill mounting holes directly into the
rack and bolt into position.
File away the front lip of the rack if
you need to move the origin marker
closer to the operator as the gate
slides past.
With Nylon Angle rack it is necessary
to use the bracket provided.
It is preferable to use self-tapping
fasteners to secure the bracket into
the side of the nylon rack as shown.
Make a small tack weld to secure the
back of the bracket onto the angle
iron section of the rack.
Bolt the origin marker onto the
bracket using the fasteners provided
www.CentSys.com
Steel rack
Bolt using
fasteners
provided
Origin
marker Weld mounting bracket
bracket provided to steel rack
RAZ rack
Nylon angle rack
Bolt using
fasteners
provided
Origin
marker
screw into side of the
bracket
nylon rack
page 39
FIGURE 51
FIGURE 52
FIGURE 29.
FIGURE 53
