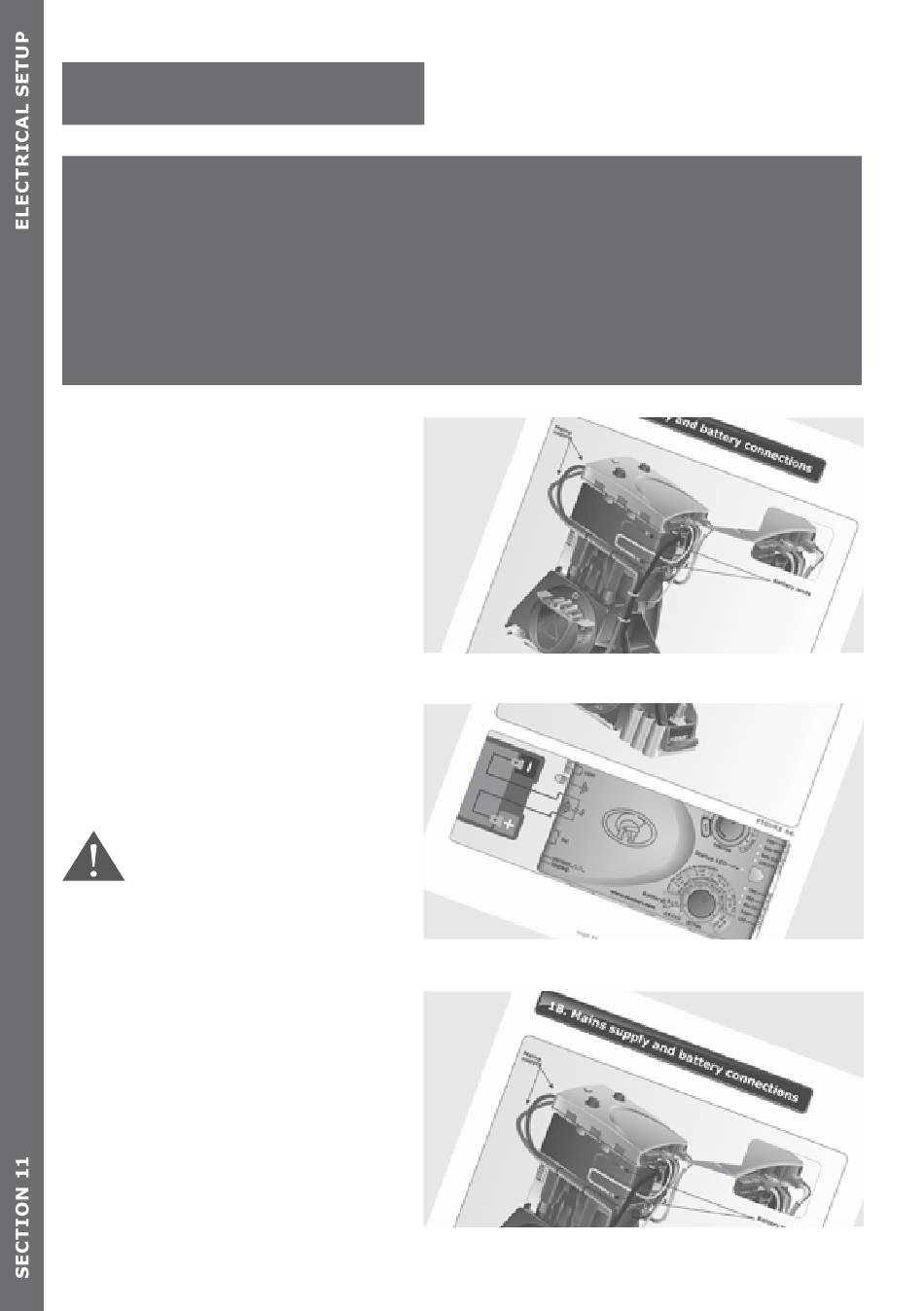

11. Electrical Setup
1. Always check that the circuit breaker in the electrical panel is in the
OFF position, and that all high-voltage circuits (more than 42.4V) are
completely isolated from the mains supply before doing any work.
2. Ensure that all low-voltage systems (less than 42.4V) are suitably
protected from damage, by disconnecting all sources of power such as
chargers and batteries before doing any work.
3. All electrical work must be carried out according to the requirements of
all applicable local electrical codes. (It is recommended that a licensed
electrical contractor perform such work)
11.1. Connect all Wiring
Connect all cables as required to the
control card, according to the wiring
diagrams from page 43.
Check that the battery is connected
to the controller. Refer to page 49.
Ensure that the battery
polarity is correct.
Ensure that the controller is
effectively earthed for improved
lightning protection as shown on
page 50.
page 42
FIGURE 57
FIGURE 58
FIGURE 59
