10.4.1. Steel rack
Fit the rack using the steel angle
brackets provided.
Brackets must be spaced no more
than 300mm apart.
When joining the different lengths of
steel rack, a simple way of ensuring
correct pitch spacing, is to clamp
a small off-cut between the two
pieces.
10.4.2. RAZ rack
Fix the RAZ rack to the side of the
gate using the TEK Screws provided.
Use the vertical slots in order to
allow for adjustment.
Use at least three TEK screws per
half metre section of rack.
TEK screw
(Self drilling and tapping)
page 36
±300mm

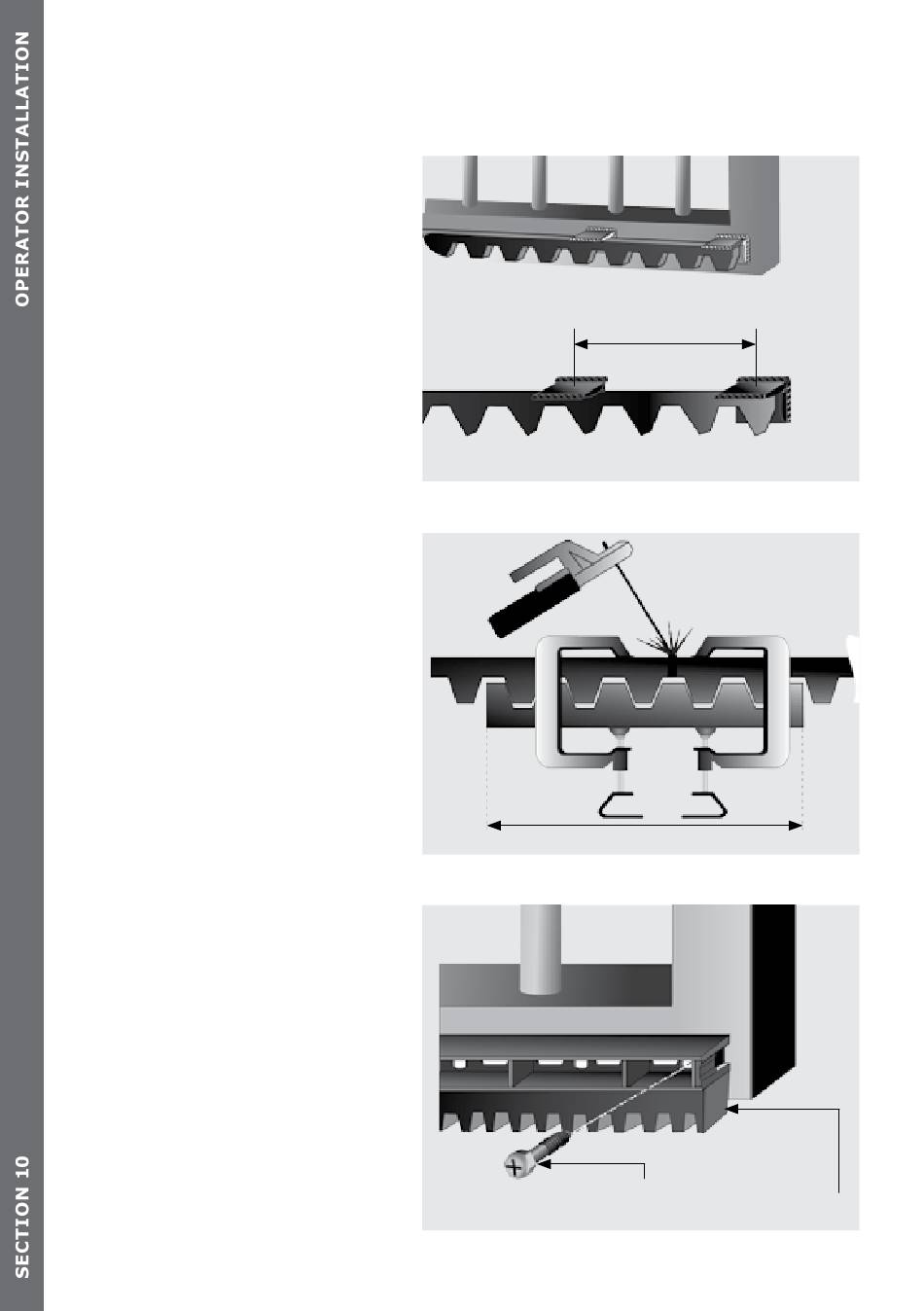

FIGURE 42
±300mm
FIGURE 43
FIGURE 29.
RAZ rack
FIGURE 44
