CENTURION SYSTEMS D2 Turbo Installation Manual page 30

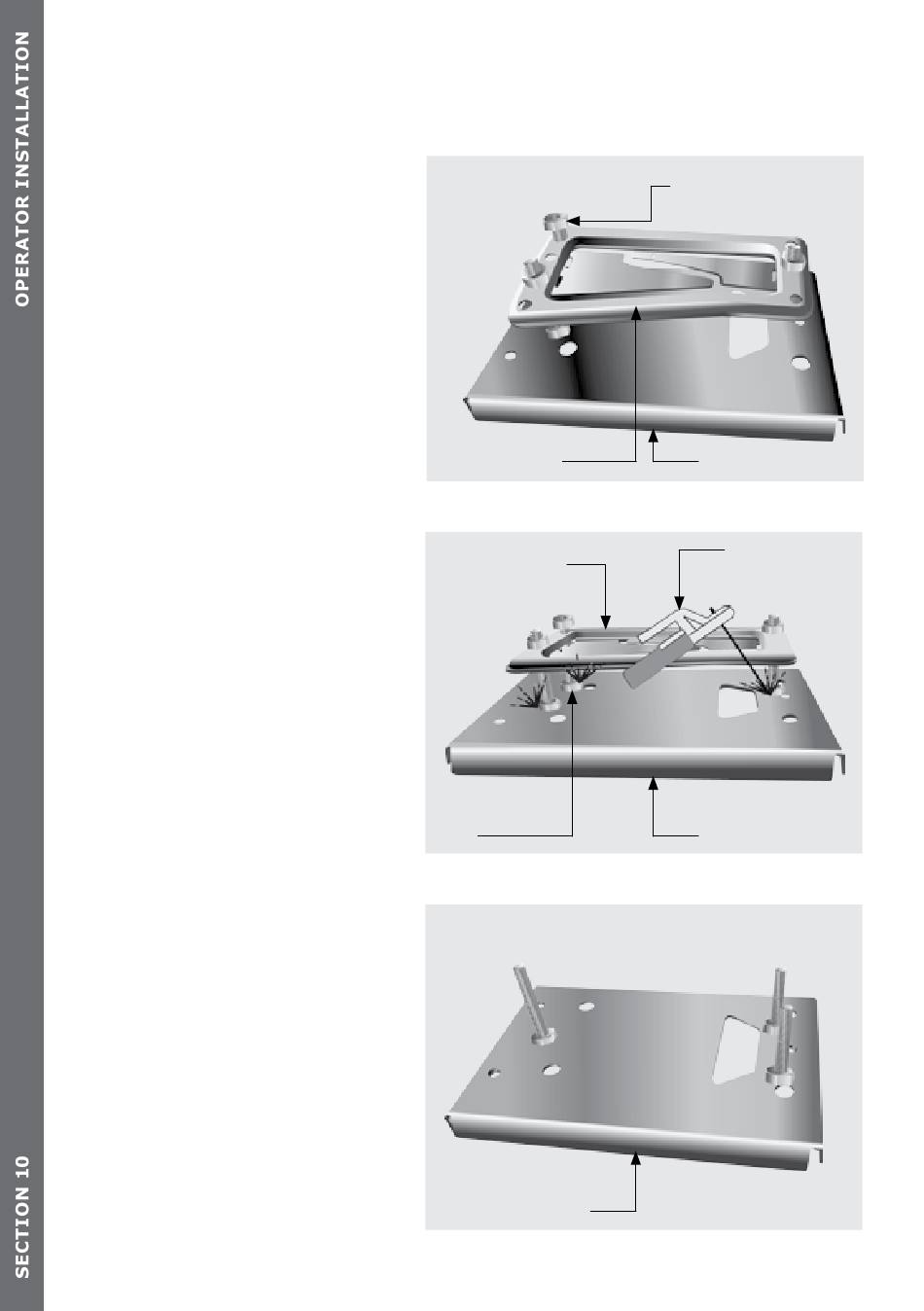

Use the supplied full-height
hold-down nuts to temporarily
secure the plate in place from
above as shown in Figure 24.
Place the D2 Turbo foundation plate
onto the existing D3 plate in the
optimum position.
Carefully tack-weld the head of
each individual mounting stud onto
the D3 foundation plate.
Remove the hold-down nuts and lift
the D2 Turbo foundation plate off of
the mounting studs.
D2 Turbo
foundation plate
D2 Turbo
foundation plate
Mounting
stud
D3 foundation plate
page 30
Orange
height-adjustment nuts
D3 foundation plate
FIGURE 25
Weling machine
D3 foundation plate
FIGURE 26
FIGURE 27
