Courtesy (Pillar) Light Timer (Optional Feature) - CENTURION SYSTEMS D2 Turbo Installation Manual

Courtesy (Pillar)
Light Timer (optional
feature)
Courtesy (Pillar) Lights can be
connected through the D2 Turbo/D2
Turbo Low-Voltage controller if an
adequate power supply is available
at the gate. The lights will switch on
every time the gate is given a signal
to operate (the trigger could be a
remote control button, or the gate
pushbutton on an intercom).
The lights will stay on for a fixed
period of two minutes, then
automatically turn off.
The purpose is to bathe your entrance with light when you open the gates and increase
your security as you drive into your property – it also saves electricity as the lights only
come on when you use the gate motor.
Using the Pedestrian Opening feature will cause the Courtesy (Pillar) Lights to flash three
times before the gate opens.
The cabling that supplies the input voltage to the D2 Turbo must be suitably
sized to carry the additional load of the Courtesy (Pillar) Lights.
Courtesy (Pillar) Lights
act as Warning Light
These modes replace the standard
Courtesy Light feature.
Pre-flashing Modes
Depending on your requirements
or local regulations, your gate
automation system can provide for
two different safety Pre-flashing
Modes which will activate the gate's
Pillar Lights if fitted and connected
to the D2 Turbo controller.
Pre-flashing Mode A
With Pre-flashing Mode A activated, the Pillar Light Relay will only activate during gate
movement.
page 64

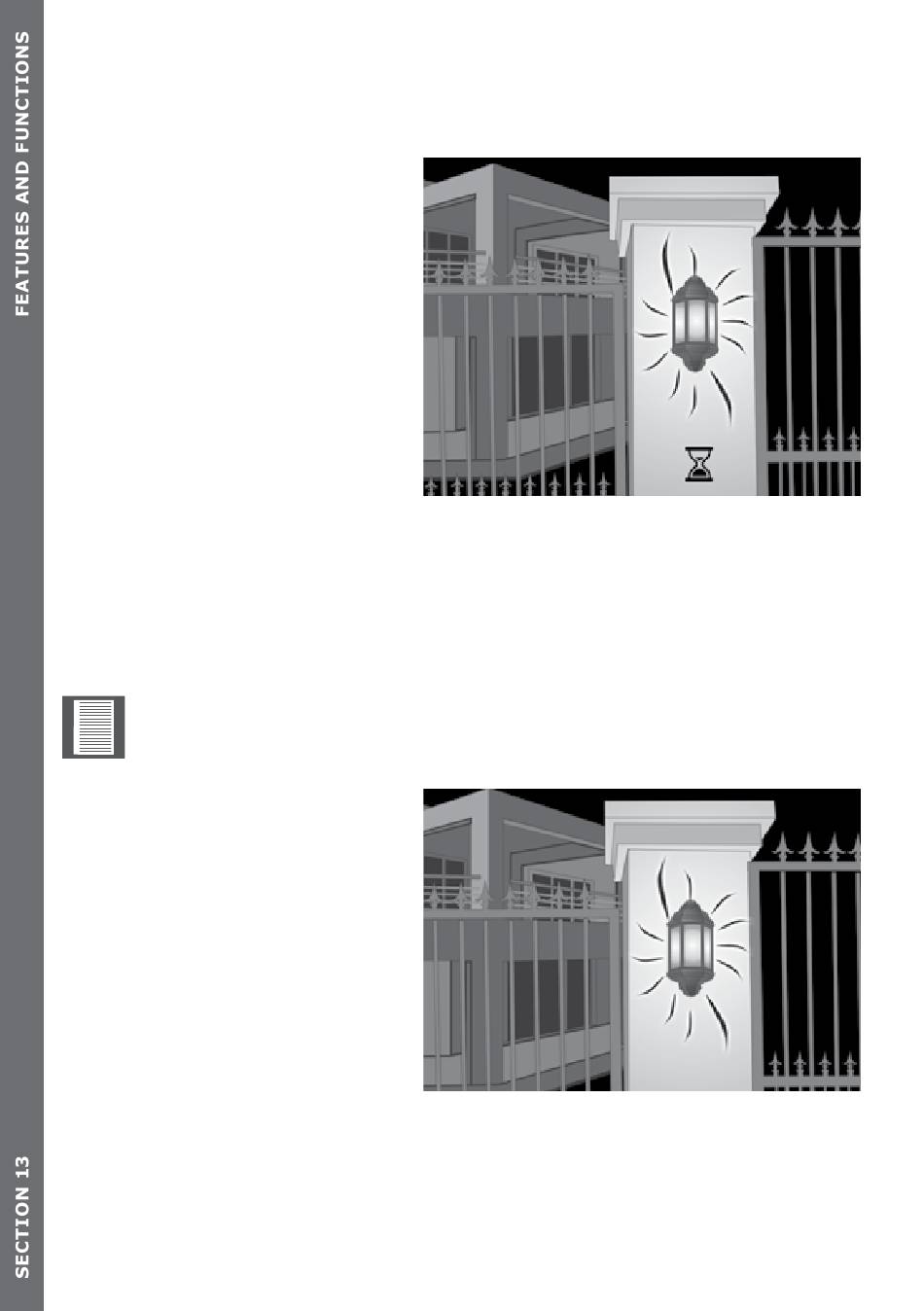

FIGURE 89
