CENTURION SYSTEMS D2 Turbo Installation Manual page 29

Option 3: Retrofitting D2 Turbo
to an existing D3 foundation
plate.

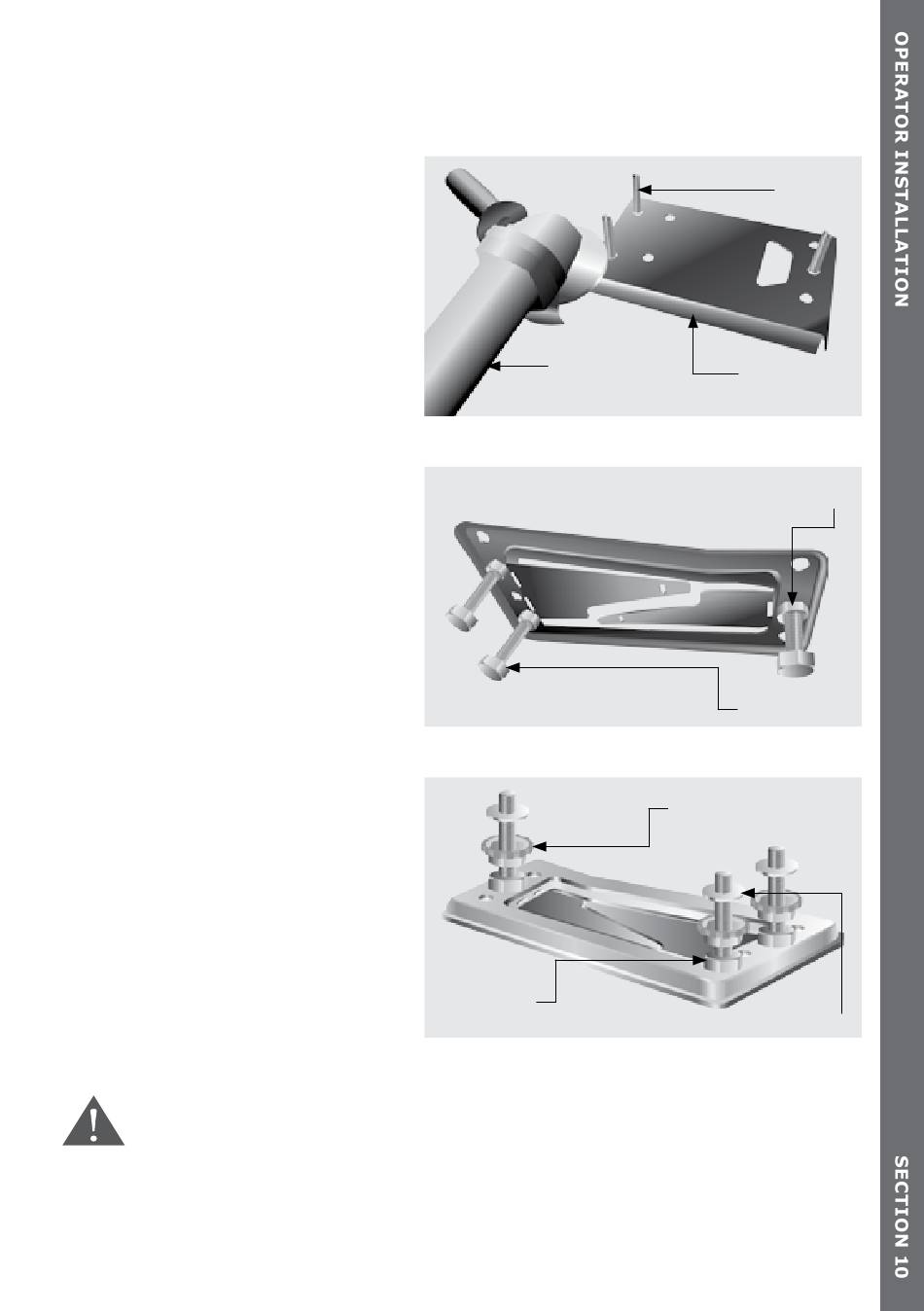

Grind off the existing mounting
studs from the D3 foundation plate
as shown in Figure 22.
Fit the three mounting studs to
the D2 Turbo foundation plate
and secure in place using the stud
locknuts supplied with this kit.
The half-height nuts should be used
on the underside of the plate as
shown in Figure 23, as these will
later be used for height adjustment.
However, if space allows
– i.e. there will be sufficient
clearance between the rack and the
pinion once the operator has been
mounted – the orange
height-adjustment nuts may be used
Do not attempt to mount the gearbox without using either the half-height nuts
or the orange jacking nuts as doing so will result in the gearbox being damaged
when the hold-down nuts are tightened.
