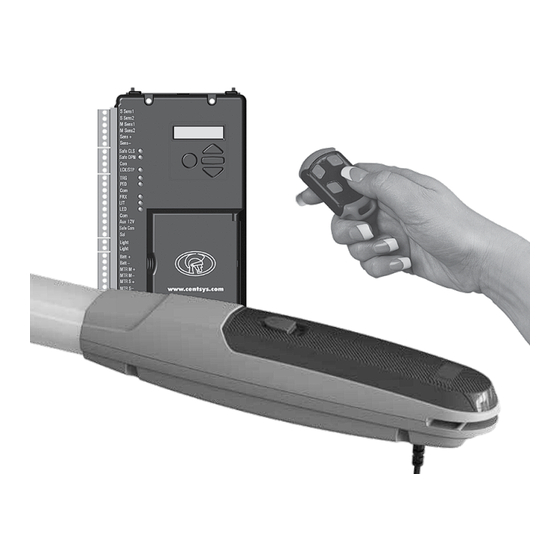

CENTURION SYSTEMS V400 Mechanical Installation Manual

Linear swing gate operator
Hide thumbs
Table of Contents

Advertisement

Quick Links

SWING GATE OPERATOR
V400 & V500
LINEAR SWING GATE OPERATOR
MECHANICAL INSTALLATION MANUAL
Centurion Systems (Pty) Ltd
page 1
www.CentSys.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V400 and is the answer not in the manual?

Questions and answers

Related Manuals for CENTURION SYSTEMS V400

Summary of Contents for CENTURION SYSTEMS V400

  • Page 1 SWING GATE OPERATOR V400 & V500 LINEAR SWING GATE OPERATOR MECHANICAL INSTALLATION MANUAL Centurion Systems (Pty) Ltd page 1 www.CentSys.com...
  • Page 2 Americas, Australia and the Pacific Centurion Systems (Pty) Ltd reserves the right to make changes to the products described in this manual without notice and without obligation of Centurion Systems (Pty) Ltd to notify any persons of any such revisions or changes. Additionally, Centurion Systems (Pty) Ltd makes no representations or warranties with respect to this manual.

  • Page 3: Table Of Contents

    Contents SAFETY page 5 IMPORTANT SAFETY INSTRUCTIONS FIRST General Description page 8 Icons Used in this Manual page 9 Specifications page 10 page 10 3.1. Physical Dimensions page 11 3.2. Technical Specifications 3.3. V-Series Controller page 12 3.4. Lightning Protection page 12 page 12 3.5.
  • Page 4 FAST TRACK Mechanical Setup These quick steps are for the experienced installer who needs a checklist to get a standard installation up and running in the minimum of time. Detailed installation features and functions are referred to later in this manual. STEP Gather Required Tools and Equipment STEP...

  • Page 5: Safety First Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS ATTENTION To ensure the safety of people and possessions, it is important that you read all the following instructions. Incorrect installation or incorrect use of the product could cause serious harm to people. The installer, being either professional or DIY, is the last person on the site who can ensure that the operator is safely installed, and that the whole system can be operated safely.
  • Page 6 Always check the obstruction detection system, and safety devices for correct operation • Neither Centurion Systems (Pty) Ltd, nor its subsidiaries, accepts any liability caused by improper use of the product, or for use other than that for which the automated system was intended •...
  • Page 7 This section has been left blank intentionally. www.CentSys.com page 7...

  • Page 8: General Description

    1. General Description The V400/V500, available in two models with actuation strokes of 400mm and 500mm, respectively, has been designed to automate a wide variety of swing gates, from single light- domestic gates to heavy industrial double swing gates. The fail-safe and fully-redundant Position and Collision Detection System has been designed and tested to set the standard in safety of operation and to provide an unparalleled level of reliability and durability in operation.

  • Page 9: Icons Used In This Manual

    2. Icons Used in this Manual This icon indicates tips and other information that could be useful during the installation. This icon denotes variations and other aspects that should be considered during installation. This icon indicates warning, caution or attention! Please take special note of critical aspects that MUST be adhered to in order to prevent injury.

  • Page 10: Specifications

    3. Specifications 3.1. Physical Dimensions 1370mm extended 970mm retracted 400mm extended piston stroke Ø100mm FIGURE 1. V 400 OVERALL DIMENSIONS 1570mm extended 1070mm retracted 500mm extended Ø100mm piston stroke FIGURE 2. V 500 OVERALL DIMENSIONS page 10 www.CentSys.com...

  • Page 11: Technical Specifications

    3.2. Technical Specifications - V400/V500 V400 V500 Input voltage 90V - 240V AC ± 10%, 50/60Hz Motor voltage 12V DC Motor power supply Battery-driven (standard capacity - 7Ah) Battery charger 1.8A @ 13.8V Current consumption (Mains) 170mA Current consumption (motor at rated load)

  • Page 12: V-Series Controller

    3.3. V-Series Controller Maximum motor current per channel 15A (fused) Maximum input voltage 14.4V DC Standby current draw 48mA Maximum solenoid current draw 2A DC Maximum auxillary output current 3A (Resettable Electronic Fuse) Collision detection Current sense and redundant-optical Position and trajectory control Redundant optical Temperature range -20°C to +60°C...

  • Page 13: Allowable Gate Mass

    3.6. Allowable Gate Mass Ensure that the gate leaf meets Wind Load Specifications Maximum allowable gate mass for the V400 operator Gate Up to Up to Up to Up to Up to Up to swing 1.5m 2.5m 3.5m angle 90°...

  • Page 14: Allowable Wind Load

    3.7. Allowable Wind Load Wind speeds for which operator will still operate the gate. (V400 or V500 operators) For a 25% covered gate: (Palisades, etc.) x 1.8 metre high Value of Individual gate leaf lengths: A or B dimension Up to...

  • Page 15: Product Identification

    4. Product Identification FIGURE 3. KIT IDENTIFICATION 1. Gate Bracket pin 7. Gate operator keys 2. 14mm snap ring 8. Stainless steel cap screw M5 x 25 3. Swing gate operator 9. Origin clamp (complete assembly) 10. M5 barrel nut 4.

  • Page 16: V-Series Wall Box

    4.1. V-Series Wall Box FIGURE 4. V-SERIES WALL BOX INCLUDING CHARGER AND CONTROLLER 1. 12V 7.2Ah Battery 4. V-Series Electrical Setup & Commissioning Guide 2. V-Series Controller with built-in receiver 5. Charger 3. V-Series User Guide 6. Code-hopping remote controls 1.

  • Page 17: Required Tools And Equipment

    5. Required Tools & Equipment Screwdrivers 6mm Phillips 3.5mm Flat Pliers Hammer Electric drilling machine Spanners 17mm/15mm preferably socket set Connector Crimping tool block and Pin lugs G-clamps Hole saw Allen key 20mm Angle grinder Pin punch Measuring tape Ø12mm masonry drill bit for wall mount bracket Ø6.5mm steel drill bit for gate bracket...

  • Page 18: Preparation Of Site

    6. Preparation of Site 6.1. General Consideration for the Installation Always recommend the fitment of additional safety equipment such as safety edges and Safety Beams (i5 or Photon), for additional protection against entrapment or other mechanical risks. Check that no pipes or electrical cables are in the way of the intended installation. Check that enough space is available for the gate operator with the gate in the required open position (see Figure 6).

  • Page 19: Determine Gate Opening Angle

    6.2. Determine Gate Opening Angle Use this procedure to accurately determine the gate opening angle: 6.2.1. Step 1 Close the gate and measure a Mark the ground Wall distance of one metre from the 1 metre centreline of the gate hinge. Gate in closed Make a mark on the ground.

  • Page 20: Key Terms Used In This Section

    200mm Gate swing angle Gate in open position Side wall FIGURE 7. SIDE WALL LIMITATION FOR INWARD OPENING GATE Wall minimum of 200mm Operator Pillar Maximum Swing Gate Angle V400 75mm 90° V500 55mm 90° TABLE 9 page 20 www.CentSys.com...

  • Page 21: Pillar Hinge Depth Limitation - Inward Opening

    Gate in closed position Pillar maximum Gate swing angle Gate in open position ° FIGURE 8. PILLAR HINGE DEPTH LIMITATION FOR 90 INWARD OPENING GATE Operator Pillar Maximum Swing Gate Angle V400 165mm 90° V500 245mm 90° TABLE 10 www.CentSys.com page 21...

  • Page 22: Wall Bracket Mounting Methods

    6.6. Wall Bracket Mounting Methods The following recommended methods may be used to install the operator. Pillar 6.6.1. Through-wall Applications: • Pre-fabricated walling Wall Bracket • For heavy gates operating frequently Through-wall bolt FIGURE 9 Pillar 6.6.2. Chemical anchors Applications: •...
  • Page 23 6.6.4. Sleeve anchors Applications: • Lighter gates Pillar • Domestic Wall Bracket Sleeve anchor FIGURE 12 6.6.5. Rawl bolts Applications: • Lighter gates Pillar • Domestic Wall Bracket Rawl bolt FIGURE 13 www.CentSys.com page 23...

  • Page 24: Strength Of The Gate And Gate Bracket

    6.7. Strength of the Gate and Gate Bracket Gate 6.7.1. Welding Applications: • Domestic • Medium gates Gate Bracket • Frequent use Welding machine FIGURE 14 6.7.2. Through-bolts Gate Through-bolts (high-tensile) Applications: • Domestic • Light gates • Infrequent use Gate Bracket TEK screws and mild steel bolts are not recommended.

  • Page 25: Cabling Requirements

    7. Cabling Requirements Control Control Mains Mains isolator isolator switch switch 350mm cable loop FIGURE 16. CABLING REQUIREMENTS Legend 1. 90V - 240V AC Mains cable via Mains isolator switch (3 core LNE 0,5mm or low-voltage 16V AC battery charger supply (2 core 1,5mm²).

  • Page 26: Critical Installation Checklist

    8. Critical Installation Checklist The following is a list of critical requirements that must be adhered to in order to ensure reliable operation of your operator(s): • Ensure that the Wall Bracket is securely anchored • Make sure that the operator’s maximum stroke is being utilised •...

  • Page 27: Operator Installation - Inward Opening Gates

    21. Solar Panel Wiring 9. Operator Installation - Inward Opening Gates Figure 17 illustrates the values corresponding to the Inward Opening Gate Installation Tables. Wall Gate in closed position Swing Gate operator The length of the wall bracket should equal B minus E. When looking at the example above, the wall bracket should measure 240mm (B) - 160mm (E) = 80mm (wall bracket length) FIGURE 17.
  • Page 28 Depth of gate hinge A-Value B-Value to pillar <165mm 145mm 240mm <175mm 130mm 250mm TABLE 11 V400 Inward Opening Gate Geometry Tables: 90° Inward Opening Gate E-Value Depth of gate hinge A-Value B-Value to pillar <120mm 195mm 200mm <130mm 180mm 210mm <140mm...
  • Page 29 110° Inward Opening Gate E-Value Depth of gate hinge A-Value B-Value to pillar 211mm 120mm 203mm 130mm Pillar can’t interfere 195mm 140mm with gate 191mm 145mm TABLE 14 1. Optimum Installation 120° Inward Opening Gate E-Value Depth of gate hinge A-Value B-Value to pillar...
  • Page 30 V500 Inward Opening Gate Geometry Tables: 90° Inward Opening Gate E -Value Depth of gate hinge A-Value B-Value to pillar <140mm 275mm 230mm <150mm 260mm 240mm <160mm 250mm 250mm <170mm 235mm 260mm <180mm 220mm 270mm <190mm 205mm 280mm <200mm 195mm 290mm <215mm 180mm...
  • Page 31 110° Inward Opening Gate E-Value Depth of gate hinge A-Value B-Value to pillar 260mm 160mm 250mm 170mm Pillar can’t interfere 240mm 180mm with gate 235mm 190mm 225mm 200mm TABLE 18 1. Optimum Installation 120° Inward Opening Gate E-Value Depth of gate hinge A-Value B-Value to pillar...
  • Page 32 9.2. Step 2 Determine a suitable height for the Wall Bracket. Ensure that this mounting height will allow the Gate Bracket to be securely mounted to the Gate Leaf. Take care to make sure the operator is mounted level. Gate Gate Bracket position FIGURE 18.
  • Page 33 9.5. Step 5 Fit the Gate Bracket to the operator Gate Bracket and secure it with a snap ring. As additional security to the snap ring, fit a padlock and the optional padlock shield. Origin clamp Padlock Snap ring Operator FIGURE 21 9.6.
  • Page 34 9.8. Step 8 Gate in closed position Manually release the operator using the key provided with the kit, and Wall swing the gate to the desired open position. Operator Slide the origin clamp along the G-clamp piston tube, right up to the end to the operator.
  • Page 35 Attach warning labels to the inside and outside of the gate as shown. FIGURE 26 The Mechanical part of the installation is now complete. www.CentSys.com page 35...

  • Page 36: Operator Installation - Outward Opening Gates

    V400 Outward Opening Gate: Gate in open position Gate opening angle Gate in closed position Operator Make up bracket to suit FIGURE 27. V400 OUTWARD OPENING GATE V400 Outward Opening Geometry Tables: Gate Opening Angle 90° 220mm 170mm 100° 210mm 150mm 110°...
  • Page 37 V500 Outward Opening Gate: Gate in open position Gate opening angle Gate in closed position Operator Make up bracket to suit FIGURE 28. V500 OUTWARD OPENING GATE V500 Outward Opening Geometry Tables: Gate Opening Angle 90° 280mm 205mm 100° 265mm 180mm 110°...
  • Page 38 10.2. Step 2 Determine a suitable height for the Wall Bracket. Ensure that this mounting height will allow the Gate Bracket to be securely mounted to the Gate Leaf. Take care to make sure the operator is mounted level. Gate Gate Bracket Position FIGURE 29.
  • Page 39 10.5. Step 5 Fit the Gate Bracket to the Operator. Gate Bracket Origin clamp Operator FIGURE 32 10.6. Step 6 Wall Fit the motor end of the operator to the Wall Bracket. Support the operator to prevent damage Operator Wall Bracket FIGURE 33 10.7.
  • Page 40 10.8. Step 8 G-clamp or spot weld Manually release the operator using the key provided with the kit, and swing the gate to the desired open position. Gate in open position FIGURE 35 10.9. Step 9 If the gate opening angle is sufficient and the operator is utilising the majority of its stroke, then secure the Gate Bracket using the most appropriate means.
  • Page 41 Attach warning labels to the inside and outside of the gate as shown. FIGURE 37 The Mechanical part of the installation is now complete. www.CentSys.com page 41...
  • Page 42 Notes page 42 www.CentSys.com...
  • Page 43 Notes www.CentSys.com page 43...
  • Page 44 The CENTURION and CENTSYS logos, all product and brand names in this document that are accompanied by the TM symbol are trademarks of Centurion Systems (Pty) Ltd, in South Africa and other territories; all rights are reserved. We invite you to contact us for further details.
