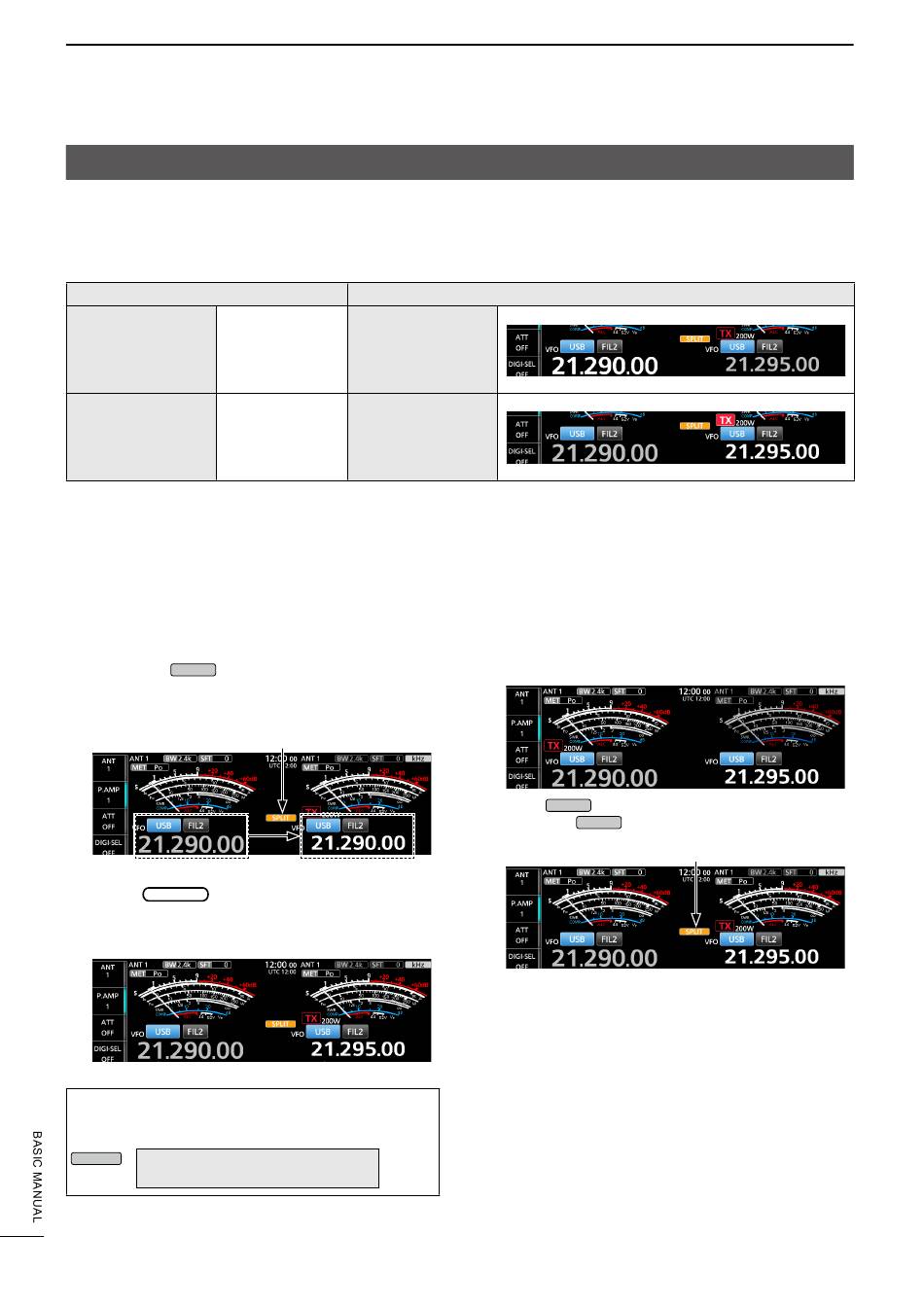

Split frequency operation

Split frequency operation enables you to transmit and
receive on different frequencies on the Main and the
Sub bands.
The other station
USB mode
Transmit frequency
21.29000 MHz
USB mode
Receive frequency
21.29500 MHz

D Using the Quick Split function

The Quick Split function enables you to automatically
equalize the frequency and mode of the Main band to
the Sub band, and activate the Split function.
1. Set the Main band's receive frequency and
operating mode.
(Example: 21.29000 MHz in the USB mode)
2. Hold down for 1 second.
SPLIT
• The Quick Split function is turned ON, and the Main
band settings are set to Sub band.
3. Rotate to set the Sub band's transmit
MAIN DIAL
frequency.
(Example: 21.29500 MHz in the USB mode)
TIP: You can select whether or not to display the
F-INP screen when turning ON the Quick Split
function.
» SET > Function > SPLIT >
MENU
Display Keypad on Quick SPLIT
Your station
Main band
Receive frequency
Sub band
Transmit frequency
Displayed
There are 2 ways to use Split frequency operation.
• Use the Quick Split function.
• Use the receive and transmit frequencies set to the
Main and Sub bands.
D Using the receive and transmit
frequencies set to Main and Sub bands
1. Set the Main band's receive frequency and
operating mode.
(Example: 21.29000 MHz in the USB mode)
2. Touch the Sub band's frequency readout to select
the Sub band, and then set the receive frequency
and the operating mode.
(Example: 21.29500 MHz in the USB mode)
3. Push .
SPLIT
L Pushing
SPLIT
4. Touch the Main band's frequency readout to
return to receive on the Main band.
L The Split frequency operation is ready.
4-10
turns the Split function ON or OFF.
Displayed
