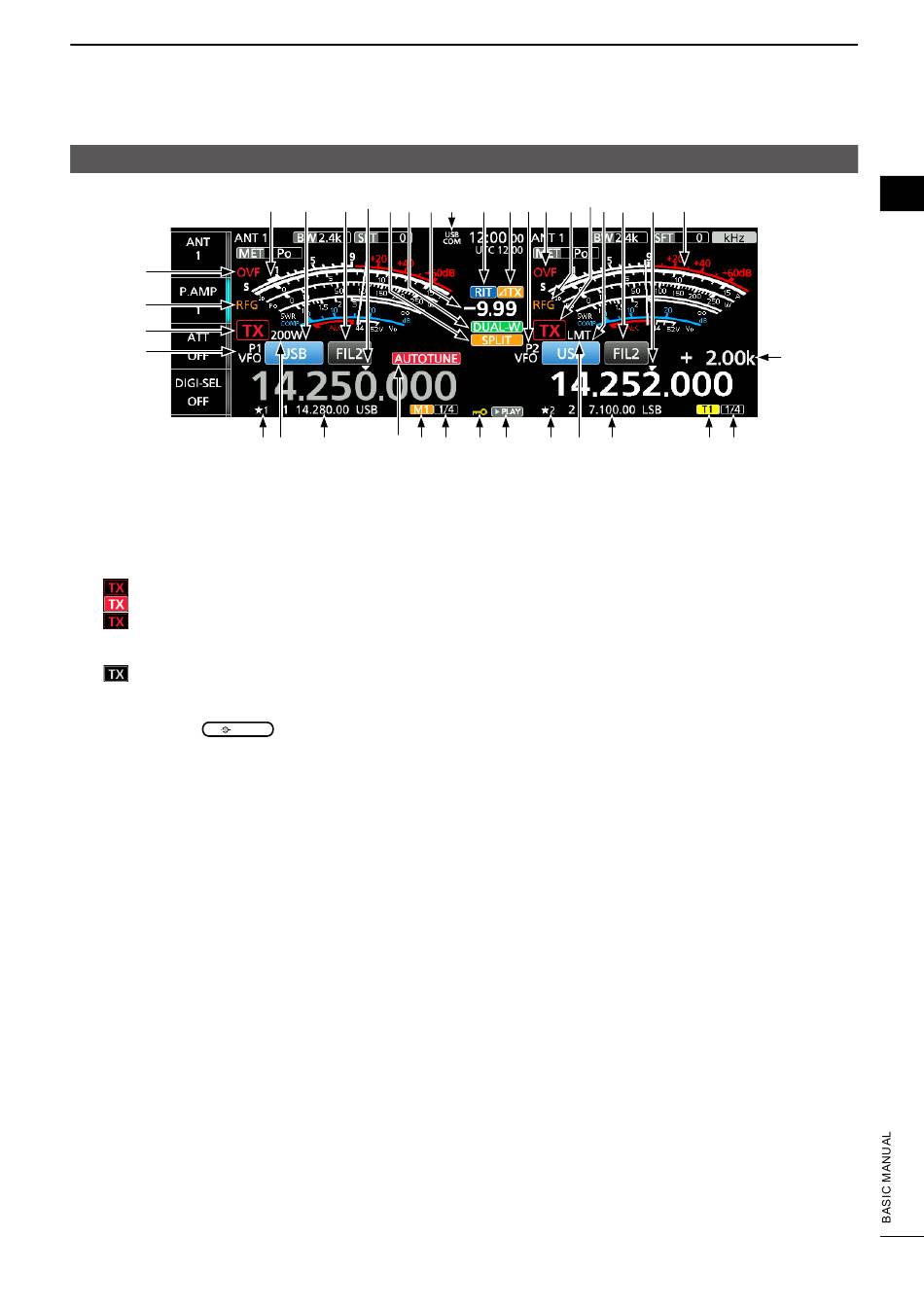

Touch screen display (Main screen)
25
24
23
22
22 VFO/MEMORY ICONS (p. 3-1)
Displays "VFO" when the VFO mode is selected,
and displays the selected memory channel number
when the Memory mode is selected.
23 TX STATUS INDICATOR
Displays the transmit status.
• is displayed on the band used for transmit.
• is displayed while transmitting.
• (with a dotted line) is displayed when the selected
frequency is outside of the band edge frequency
range.
• (Grayed out) is displayed when transmission is
inhibited.
24 RF GAIN ICON (p. 3-8)
Displayed when
AF RF/SQL
counterclockwise from the 11 o'clock position to
decrease the RF gain.
25 OVF ICON (p. 3-8)
Displayed when an excessively strong signal is
received.
26 METER INDICATOR (p. 3-11)
Displays the S, Id, Po, SWR, COMP, ALC, and Vd
meters.
27 MODE INDICATOR (p. 3-4)
Displays the selected operating mode.
28 IF FILTER INDICATOR (pp. 4-4, 4-5)
Displays the selected IF filter number.
L A dot "·" is displayed on the IF Filter Indicator when
you change the IF passband width.
29 QUICK TUNING ICON (p. 3-5)
Displayed when the Quick Tuning Step function is ON.
30 SPLIT ICON (p. 4-10)
Displayed when the Split function is ON.
31 DUALWATCH ICON (p. 3-2)
Displayed when the Dualwatch function is ON.
32 RIT/∂TX FREQUENCY READOUT
Displays the shift offset frequency for the RIT or
∂TX functions.
33 USB CONNECTION INDICATOR (p. 13-5)
Displayed when an external USB Host device, such
as a PC, is connected to [USB B] on the controller.
26 27 28 29 30 31 32
41 40 39 44 38
(outer) is set
33 34 35 22 25 24 2327
37 43 42 41 40 39
34 RIT ICON (p. 4-1)
Displayed when the Receive Increment Tuning
(RIT) function is ON.
35 ∂TX ICON
Displayed when the ∂TX function is ON.
36 FREQUENCY OFFSET READOUT
Displays the frequency offset between transmit
and receive when the split function is ON and
monitoring the transmit frequency.
37 1/4 ICON (p. 3-5)
Displayed while the 1/4 Tuning function is ON.
38 M1~M8/T1~T8 ICONS
• "M1" ~ "M8" is displayed while the Keyer memory
transmission using an external keypad or keyboard
is enabled, and transmitting the memory contents.
• "T1" ~ "T8" is displayed while the Voice TX
memory transmission using an external keypad
or keyboard is enabled, and transmitting the
Voice TX memory contents.
39 MEMORY CHANNEL/VFO READOUT (p. 3-1)
Displays the selected memory channel contents in
the VFO mode, and displays the VFO contents in
the Memory mode.
40 RF POWER INDICATOR/LMT ICON/INH ICON
Displays the transmit output power. (p. 3-10)
L "LMT" is displayed if the power amplifier temperature
becomes extremely high, and the Protection function
is activated after transmitting continuously for a long
period of time.
L "INH" is displayed while the Transmitter Lockout
function is activated.
41 SELECT MEMORY CHANNEL ICON
Indicates that the displayed memory channel is
assigned as a Select Memory channel (★1~★3).
42 PLAY ICON
Displayed while playing the recorded voice audio.
43 DIAL LOCK INDICATOR (p. 3-9)
Displayed while the Lock function is ON.
44 AUTO TUNE ICON (p. 4-11)
Displayed when the Auto Tuning function is ON.
