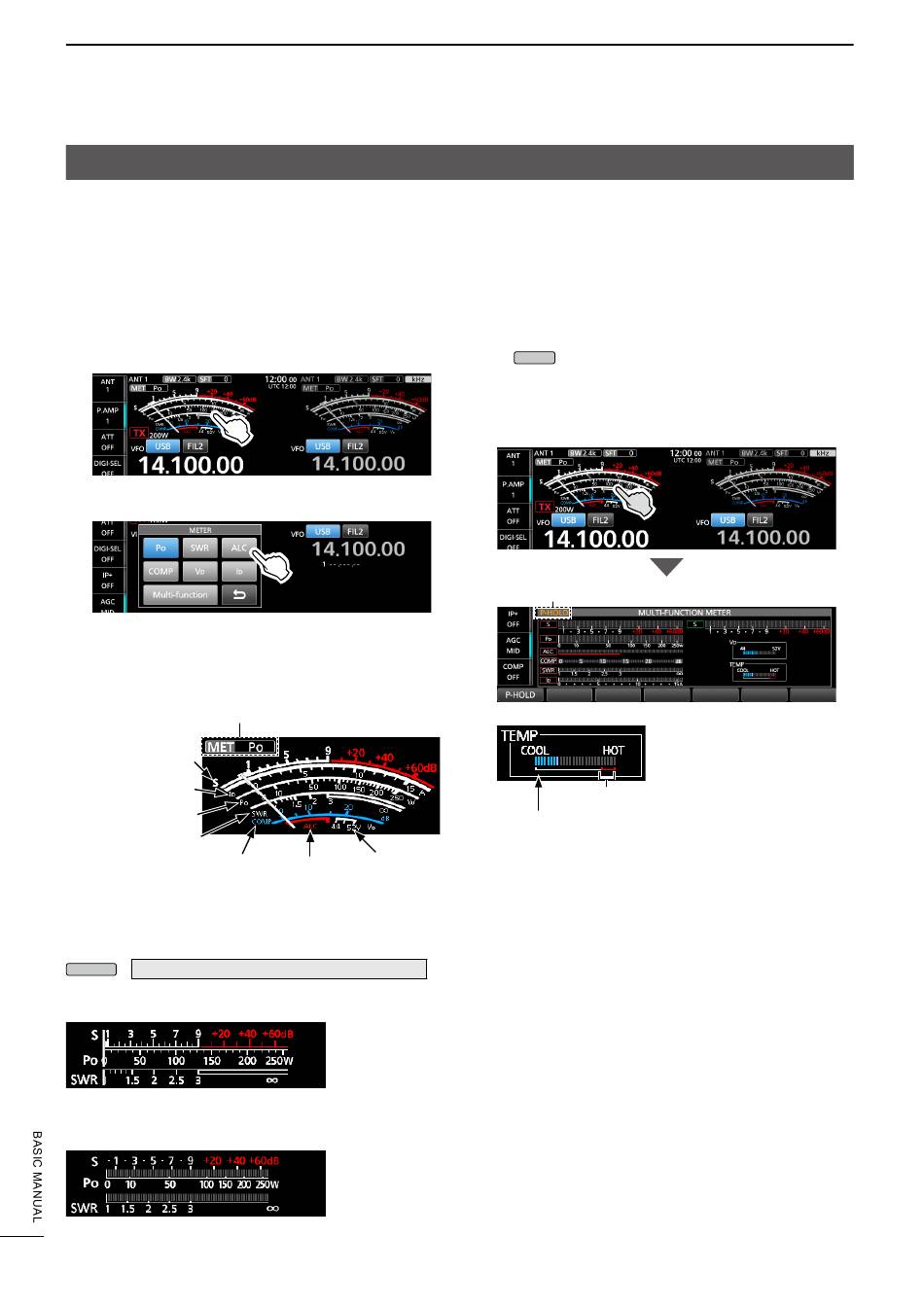

Meter display on the Main screen

D Selecting the Meter display

You can display one of the 6 different transmit
parameters (Po, SWR, ALC, COMP, Vd, and Id) for
your convenience.
L See "Touch screen display (Sub screen)" for details about
the Meter display on the Sub screen. (p. 1-10)
1. To select the displayed parameter, touch the
meter.
2. Touch the key to display one of the meters.
(Example: ALC)
L Touching [Multi-function] displays the Multi-function
meter.
L You can also select the displayed parameter on the
QUICK MENU screen.
The selected meter's icon is displayed.
Signal strength
Id
Power level
SWR
Compression level

D Selecting the Meter type

You can select the Meter type in the following setting.
»
SET > Display > Meter Type (Normal Screen)
MENU
When selecting "Edgewise"
When selecting "Bar"
Vd
ALC level
3-11

D Multi-function meter

You can simultaneously display all the parameters.
L The TEMP meter is also displayed on the Multi-function
meter.
z Touch the currently displayed parameter for 1
second to display the Multi-function meter.
L To close the MULTI-FUNCTION METER screen, push
.
EXIT
z While the Multi-function meter is displayed, touch
[P-HOLD] to turn the Peak Level Hold function ON
or OFF.
Displayed when Peak Hold function is ON.
Power down transmission zone
Displays the temperature of the final
amplifier MOS-FETs.
S: Displays the receiving signal strength level.
Po: Displays the relative RF output power.
SWR: Displays the SWR of the antenna at the
selected frequency.
ALC:
Displays the ALC level. When the meter
movement shows the input signal level
exceeds the allowed level, the ALC limits
the RF power. In such case, decrease the
microphone gain level.
COMP: Displays the compression level when the
speech compressor is used.
Vd:
Displays the drain voltage of the final amplifier
MOS-FETs.
Id: Displays the drain current of the final amplifier
MOS-FETs.
TEMP: Displays the temperature of the final amplifier
MOS-FETs.
