Icom IC-7760 Basic Manual page 13

Front panel (Controller/RF deck)
17 VOICE MEMORY RECORD KEY
z Push to save the previously received signal for
the preset time period set in REC Time using the
Instant Replay function.
z Hold down for 1 second to start recording a QSO
audio onto an SD card.
18 VOICE MEMORY PLAY BACK KEY
z Push to play back the last 5 seconds of the
Instant Replay memory.
z Hold down to play back all of the Instant Replay
memory.
19 AUTO TUNE KEY
AUTO TUNE
In the AM or CW mode, push to automatically tune
the operating frequency to a close-by signal.
20 MAIN DIAL
MAIN DIAL
Rotate to change the operating frequency.
21 FRICTION ADJUSTER
Slide to adjust the friction of
22 SUB DISPLAY KEY
SUB DISP
Push to change the information displayed on the
Sub screen.
23 SPEECH/LOCK KEY
SPEECH
z Push to announce the operating frequency or
mode.
z Hold down for 1 second to electronically lock
. (p. 3-9)
MAIN DIAL
24 RIT KEY (p. 4-1)
RIT
Push to turn the Receiver Incremental Tuning (RIT)
function ON or OFF.
25 RIT/∂TX CONTROL
RIT/ TX
Rotate to shift the receive or transmit frequency
up to ±9.99 kHz without changing the transmit or
receive frequency.
26 CLEAR KEY
CLEAR
Push to clear the RIT or ∂TX shift frequency.
27 ∂TX KEY
TX
Push to turn the ∂TX function ON or OFF.
28 TWIN PASSBAND TUNING CONTROL
(p. 4-4)
TWIN PBT
CLR
z Rotate to adjust the IF filter's passband width.
z Hold down for 1 second to clear the PBT settings.
29 TWIN PBT INDICATOR (p. 4-4)
Lights white when you change the IF passband
width.
30 SPLIT KEY (p. 4-10)
SPLIT
Push to turn the Split function ON or OFF.
31 DUALWATCH KEY
DUAL-W
Push to turn the Dualwatch function ON or OFF.
REC
PLAY
(p. 4-11)
.
MAIN DIAL
(p. 1-10)
(p. 3-2)
1-2
PANEL DESCRIPTION
32 MULTI-FUNCTION CONTROL
z Push to open the Multi-function menu for various
adjustments. (p. 1-8)
z Rotate to adjust the value that is assigned to
. (p. 1-9)
MULTI
33 MAIN/SUB CHANGE KEY
Push to toggle the frequency, mode, and selected
memory channel between the Main and Sub band.
34 MEMO PAD KEY
MPAD
z Push to sequentially call up the contents in the
Memo Pads.
z Hold down for 1 second to save the displayed
contents into the Memo Pad.
35 MAIN/SUB INDICATOR (p. 3-2)
The indicator of the selected band lights white.
36 TRANSMIT FREQUENCY CHECK KEY
z Hold down to temporally open the squelch and
cancel the noise reduction and RIT function.
z While the Split or ∂TX function is ON, or using
a repeater, hold down to monitor the transmit
frequency.
37 NOTCH KEY (p. 4-6)
NOTCH
Push to select the Notch function type.
38 TIMER KEY
TIMER
Push to turn the Sleep Timer or Daily Timer function
ON or OFF.
39 AUDIO PEAK FILTER/TWIN PEAK FILTER KEY
APF/TPF
z In the CW mode, push to turn the Audio Peak
Filter ON or OFF. (p. 4-13)
z In the RTTY mode, push to turn the Twin Peak
Filter ON or OFF.

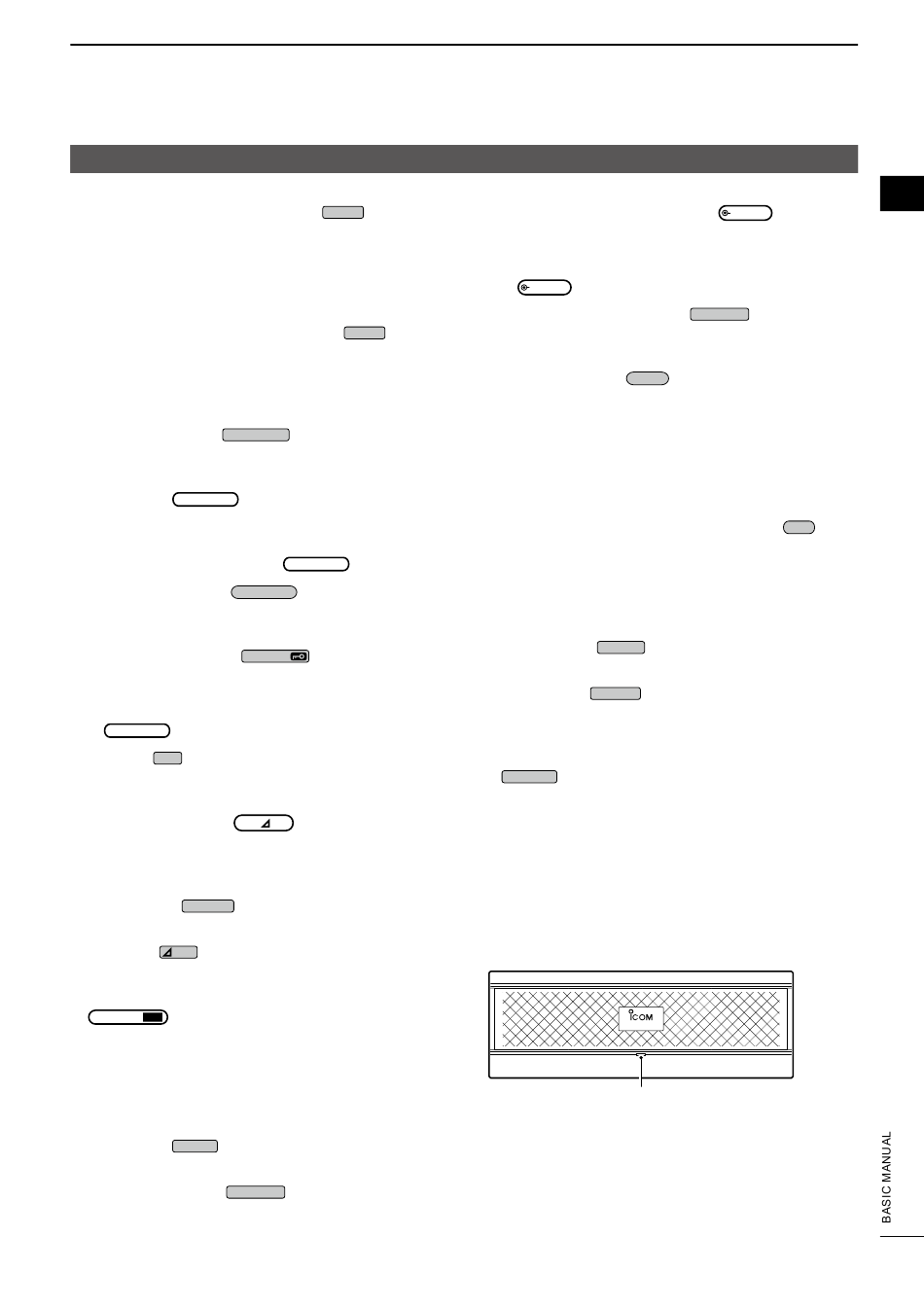

RF deck
40
40 POWER INDICATOR
• Lights orange while the internal power supply is
ON and in the standby mode.
• Lights blue while the RF deck is working.
1
MULTI
(p. 3-2)
CHANGE
XFC
1
