13

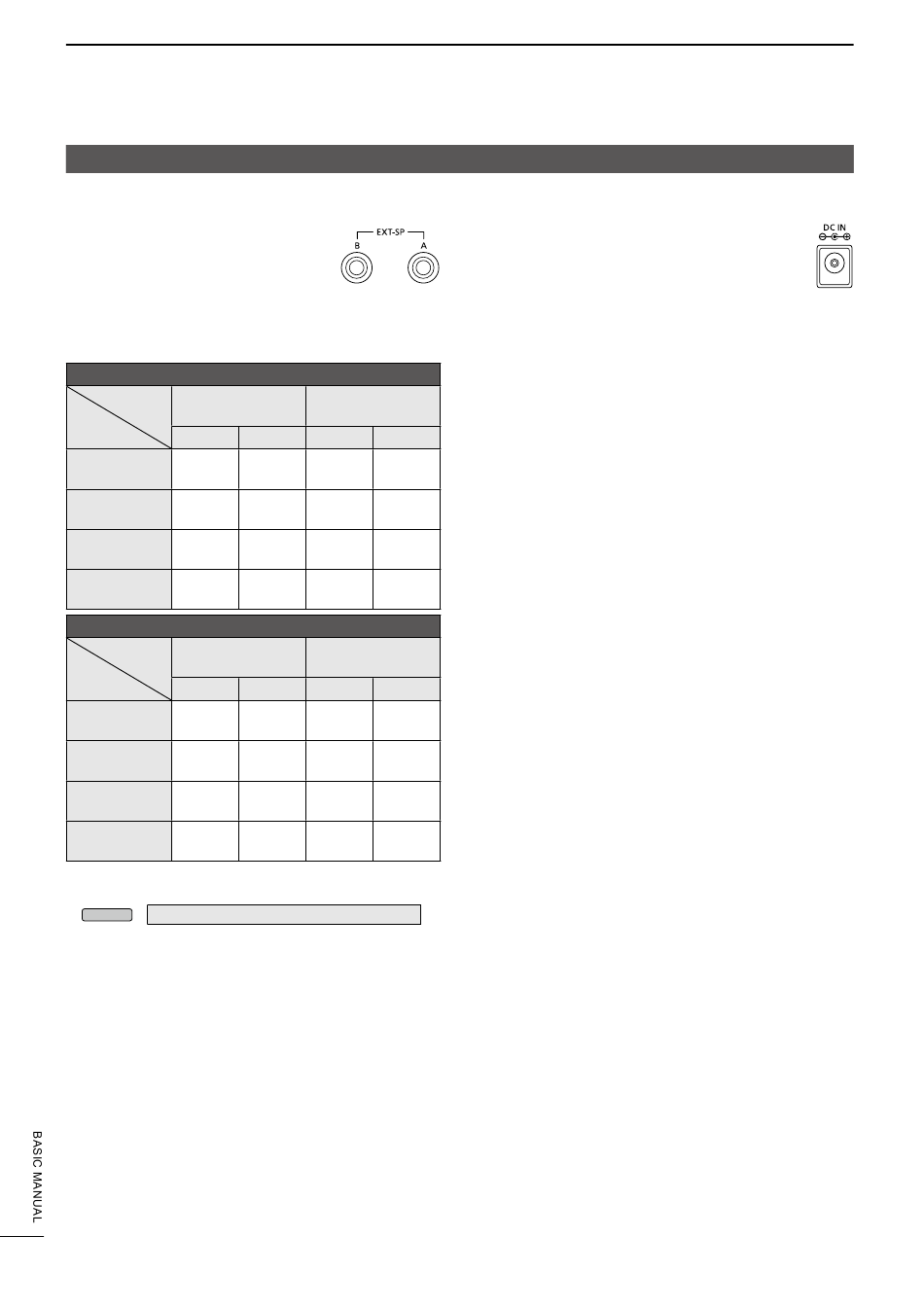

CONNECTOR INFORMATION
Controller

D [EXT-SP A]/[EXT-SP B]

Connect to external speakers.
( )
3.5 mm (1/8 inch)
• Output impedance: 4 ~ 8 Ω
• Output level: More than 2 W
(8 Ω load, 10% distortion)
About audio output settings
Speaker MAIN/SUB Mix: OFF
Output Output from the
internal speaker
Connection L
Internal
MIX*
speaker only
External
OFF
speaker (A + B)
External
OFF
speaker (A)
External
MAIN
speaker (B)
Speaker MAIN/SUB Mix: ON
Output Output from the
internal speaker
Connection L
Internal
MIX
speaker only
External
OFF
speaker (A + B)
External
OFF
speaker (A)
External
MIX
speaker (B)
MIX: Outputs the audio from both Main and Sub bands.
L You can change the setting in the following item.
»
SET > Function > Speaker MAIN/SUB Mix
MENU
* When Dualwatch is ON, the internal speaker L outputs
the audio from the Main band, and R outputs the audio
from the Sub band.
(When [PHONES] is not in use)
Output from the
external speaker
R EXT-SP A EXT-SP B
MIX* N/C N/C
OFF MAIN SUB
SUB MAIN N/C
OFF N/C SUB
Output from the
external speaker
R EXT-SP A EXT-SP B
MIX N/C N/C
OFF MIX MIX
OFF MIX N/C
OFF N/C MIX

D [DC IN]

Connect the supplied power cable to an AC
receptacle.
13-7
