PANEL DESCRIPTION

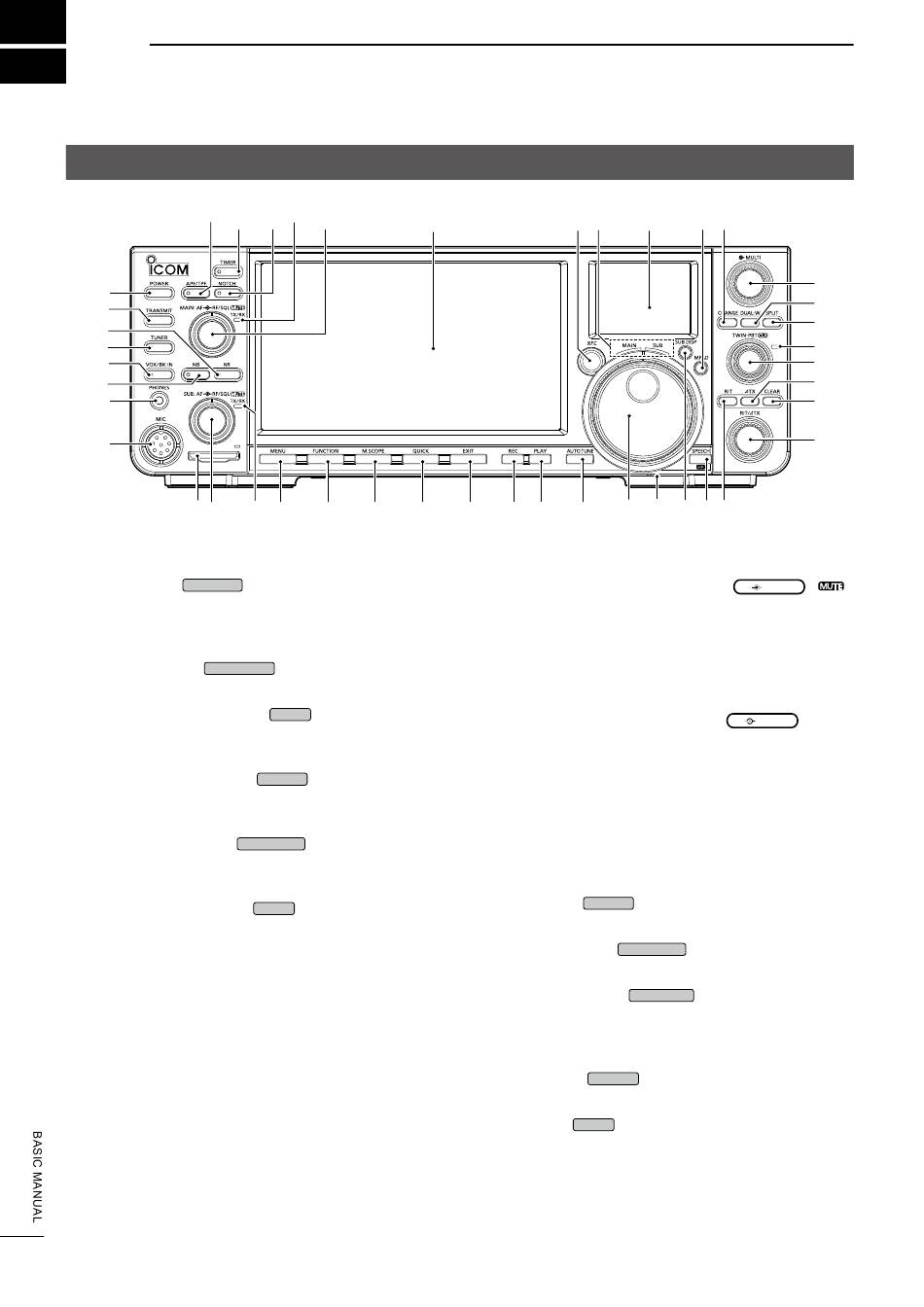

Front panel (Controller/RF deck)

Controller
39 38
1
2
3
4
5
6
7
8
910
1 POWER KEY
POWER
z Push to turn ON the controller.
z Hold down for 1 second to turn OFF the
controller.
2 TRANSMIT KEY
TRANSMIT
Push to toggle between transmit and receive.
3 NOISE REDUCTION KEY
Push to turn the Noise Reduction function ON or
OFF.
4 ANTENNA TUNER KEY
Push to turn the antenna tuner ON or OFF, or
activate the tuner.
5 VOX/BREAK-IN KEY
VOX/BK-IN
Push to turn the VOX function and the Break-in
function in the CW mode (p. 4-12) ON or OFF.
6 NOISE BLANKER KEY
Push to turn the Noise Blanker function ON or OFF.
7 HEADPHONE JACK [PHONES] (p. 13-4)
Connect standard stereo headphones.
8 MICROPHONE CONNECTOR [MIC] (p. 13-4)
Connect a microphone (user supplied).
9 SD CARD SLOT [SD CARD] (p. 6-1)
Insert an SD card (user supplied).
• The indicator lights while an SD card is inserted, and
blinks while accessing the card.
Main screen
(p. 1-5)
37 11 10
11 12 13 14 15
(p. 3-1)
(p. 3-9)
(p. 4-7)
NR
(pp. 7-3, 7-4)
TUNER
(p. 4-7)
NB
Sub screen
(p. 1-10)
36 35
16 17 18 19 20 21 22 23 24
10 VOLUME CONTROL/MUTE KEY
L The upper control is for the Main band, and the lower
is for the Sub band.
z Rotate to adjust the audio output level. (p. 3-1)
z Push to turn the Mute function ON or OFF.
- The TX/RX indicator lights orange when the
Mute function is ON.

RF GAIN/SQUELCH CONTROL

(p. 3-8)
Rotate to adjust the RF gain and squelch threshold
levels.
11 TX/RX INDICATOR
L The upper indicator is for the Main band, and the lower
is for the Sub band.
• Lights red while transmitting.
• Lights green while receiving.
12 MENU KEY
MENU
Push to open the MENU screen.
13 FUNCTION KEY
FUNCTION
Push to open the FUNCTION screen.
14 MINI SCOPE KEY
z Push to display the Mini scope screen.
z Hold down for 1 second to display the Spectrum
scope screen.
15 QUICK KEY
QUICK
Push to open the QUICK MENU screen.
16 EXIT KEY
EXIT
Push to exit a setting screen or return to the
previous screen.
1-1
34 33
AF RF/SQL
AF RF/SQL
(pp. 1-7, 8-1)
(p. 1-7)
(p. 5-2)
M.SCOPE
(p. 1-7)
32
31
30
29
28
27
26
25
/
