Connecting a linear amplifier

D Connecting a non-Icom linear amplifier

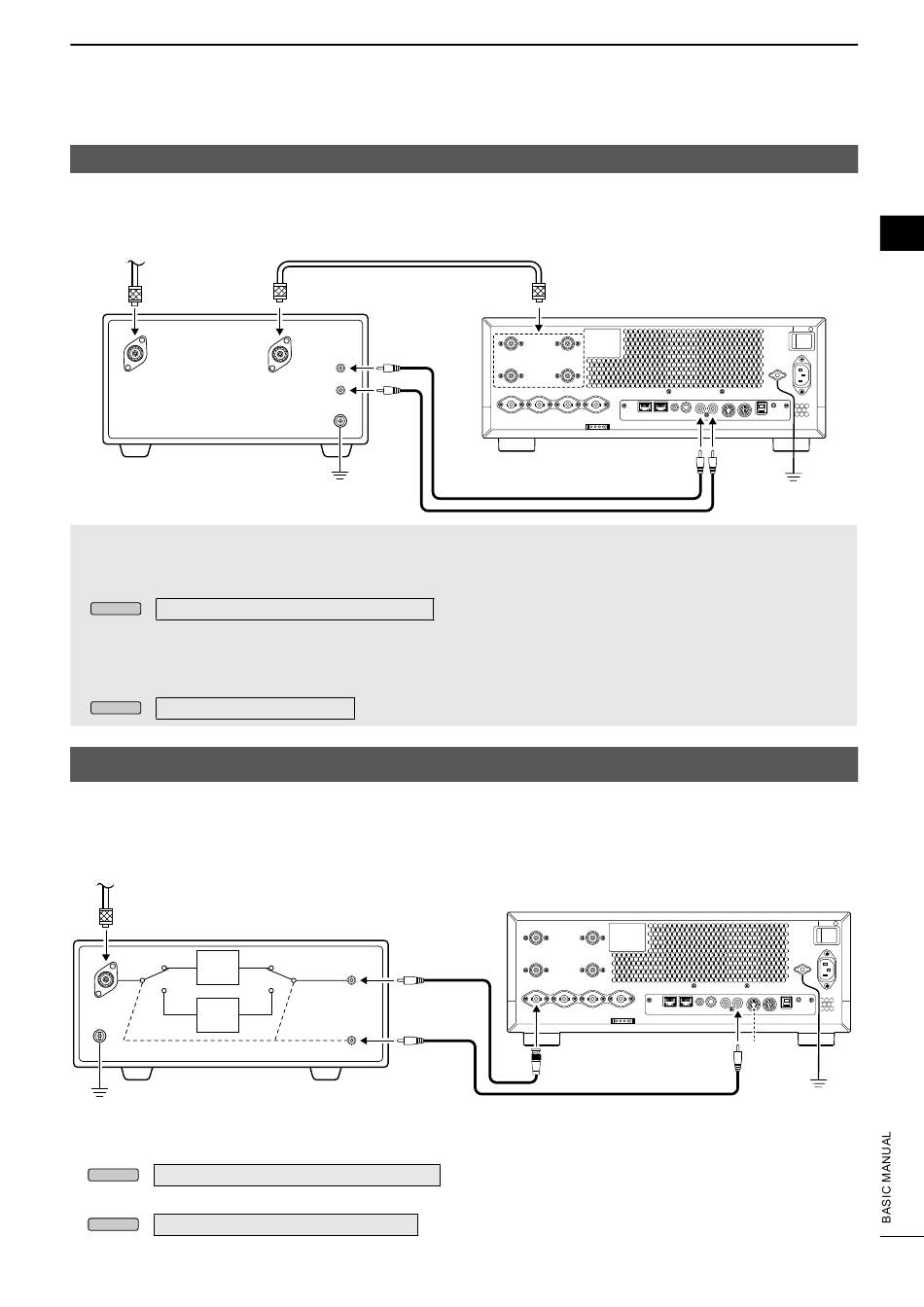

See the illustration below to connect a non-Icom linear amplifier.
To antenna
RF OUT
Non-Icom linear amplifier
R WARNING!
• The maximum signal level of the [SEND] jack is 16 V/0.5 A DC with the "Reed" setting, and 250 V/200 mA with the
"MOSFET" setting. Use an external unit if your non-Icom linear amplifier requires a control voltage and/or current greater
than specified.
» SET > Connectors > SEND Relay Type
MENU
• The ALC input level must be in the range 0 to –4 V. The transceiver does not accept a positive voltage. Non-matched ALC
and RF power settings could overheat or damage the linear amplifier.
• When using a linear amplifier that has a time delay between receiving and transmitting, a high SWR might cause the linear
amplifier to malfunction. To prevent this, set "TX Delay."
» SET > Function > TX Delay
MENU

Connecting a Transverter

When you use a non-Icom transverter unit, connect it as described below.
L Confirm that the transceiver and transverter are OFF before connecting them.
L You may need to connect to [ALC], depending on the transverter.
To VHF band antenna
RX
TRV
TX
ANT
TRV
GND
• To use the transverter operating mode, set "Transverter Function" to "ON."
* You can also use the transverter operating mode by connecting a DC voltage to [ACC 2 (6: TRV)].
» SET > Function > Transverter Function
MENU
• Set the offset frequency for the transverter operation.
» SET > Function > Transverter Offset
MENU
Coaxial cable (50 Ω)
RF IN
ALC
SEND
GND
Transverter
Coaxial cable
RX
(50 Ω)
[RF IN/OUT]
TX
[SEND]
INSTALLATION AND CONNECTIONS
[ANT 1] ~ [ANT 4]
RF deck
RF deck
[X-VERTER]
2-4
[ALC] [SEND]
GND
*
[SEND]
GND
