PANEL DESCRIPTION

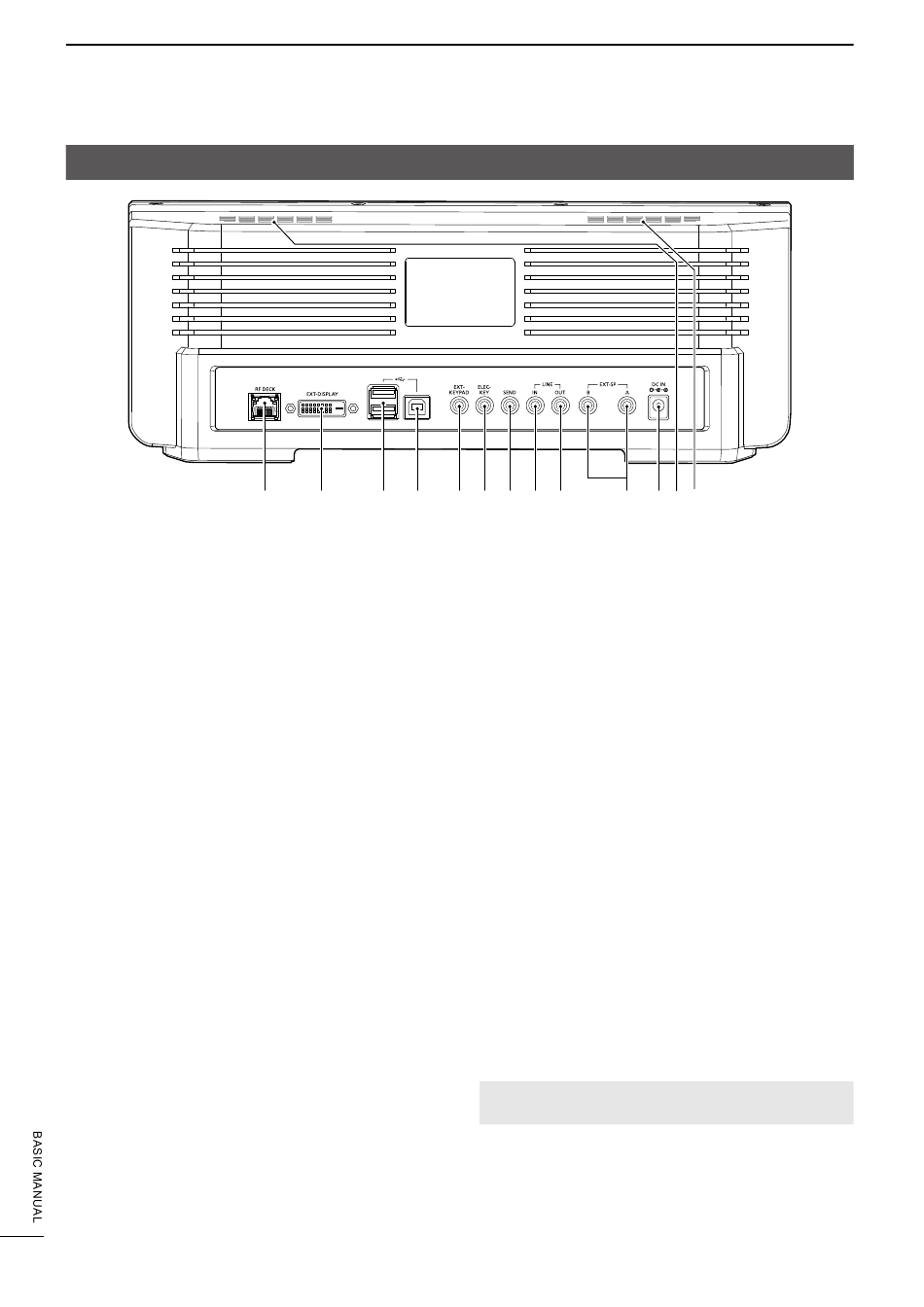

Rear panel (Controller)

1 INTERNAL SPEAKER L (p. 13-7)
Outputs the audio from the Main band.
L When "Speaker MAIN/SUB Mix" is set to "ON," outputs
the audio from both Main and Sub bands.
2 INTERNAL SPEAKER R (p. 13-7)
• When Dualwatch is OFF, outputs the audio from
the Main band.
• When Dualwatch is ON, outputs the audio from
the Sub band.
L When "Speaker MAIN/SUB Mix" is set to "ON,"
outputs the audio from both Main and Sub band.
3 DC POWER JACK [DC IN] (p. 2-2)
Connect the supplied power adapter to an AC
receptacle.

4 EXTERNAL SPEAKER JACK

[EXT-SP A]/[EXT-SP B] (p. 13-7)
Connect a 4 ~ 8 Ω external speaker with a 3.5 mm
(1/8 inch) stereo plug.
5 LINE OUT JACK [LINE OUT] (p. 13-6)
Outputs the demodulated AF signal or 12 kHz IF
signal.
6 LINE IN JACK [LINE IN] (p. 13-6)
Input the audio signal to the internal modulator
circuit.
7 SEND JACK [SEND] (p. 13-6)
Connect to control transmit with non-Icom external
units.
13 12 11 10 9 8 7 6 5 4
8 KEY JACK [ELEC-KEY] (p. 13-5)
Connect to a CW paddle with a 3.5 mm (1/8 inch)
stereo plug.
9 EXTERNAL KEYPAD JACK [EXT-KEYPAD]
(p. 13-5)
Connect to an external keypad for direct Voice
Memory, Keyer Memory, RTTY Memory, or PSK
Memory transmission.
10 USB PORT (TYPE-B) [USB B] (p. 13-5)
Connect to a PC.
11 USB PORT (TYPE-A) [USB A] (p. 13-5)
Insert a USB flash drive, or connect a keyboard,
mouse, RC-28 remote encoder, or hub.
12 EXTERNAL DISPLAY CONNECTOR
[EXT-DISPLAY] (p. 13-4)
Connect to an external display monitor.
13 RF DECK CONNECTOR [RF DECK] (p. 2-2)
Connect to the RF deck with the supplied control
cable or through a LAN.
L When connecting the controller and RF deck directly,
operation cannot be guaranteed if you use other than
the specified cable or a network switch.
L Confirm the Network settings before connect to a
network.
NOTE: Confirm that the transceiver is OFF before
connecting or disconnecting optional equipment.
