About the Antenna memory settings

D Setting the antenna type

On this screen, you can set the type of antenna to
use.

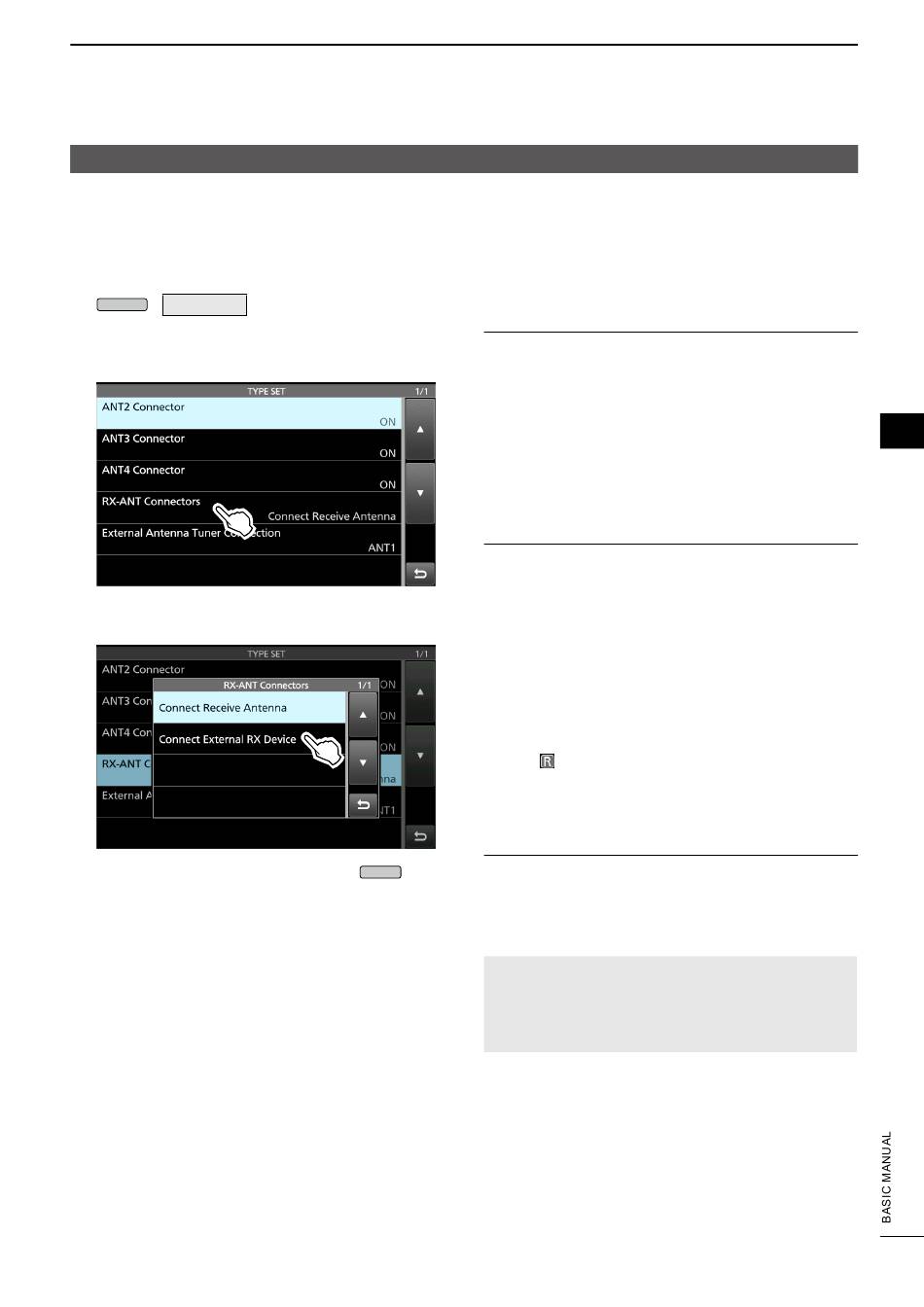

1. Open the ANTENNA screen.
» ANTENNA
MENU
2. Touch [TYPE].
• The TYPE SET screen is displayed.
3. Touch "RX-ANT Connectors."
4. Select an option.
(Example: Connect External RX Device)
5. To close the TYPE SET screen, push
several times.
ANT2 Connector
ANT3 Connector
ANT4 Connector
Selects whether or not to enable use of the antenna
connector.
• OFF: You cannot select the antenna connector.
• ON: You can select the antenna connector.
L An external antenna tuner or antenna does not activate
if you connect it to the antenna connector that is set to
"OFF."
L You cannot set the ANT1 connector to OFF.
RX-ANT Connectors
Selects a device connected to [RX-ANT IN] and
[RX-ANT OUT].
• Connect Receive Antenna:
Select this option to connect a receive
antenna to [RX-ANT IN].
"R" is displayed next to the antenna number
when [RX-ANT] is touched.
• Connect External RX Device:
Select this option to connect an external
receive device, such as a filter or preamplifier
to [RX-ANT OUT] and [RX-ANT IN].
when [RX-I/O] is touched.

External Antenna Tuner Connection

Selects an antenna connecter to which the AH-730
EXIT
optional antenna tuner is connected. The maximum
output power from the selected connector is limited to
100 W.
• Set to ANT1, ANT2, ANT3, or ANT4.
NOTE: If you connect the AH-730 to another
connector, the maximum 200 W power is input to the
tuner, and could damage the tuner.
L Confirm the setting again after performing a Partial reset
or an All reset.
