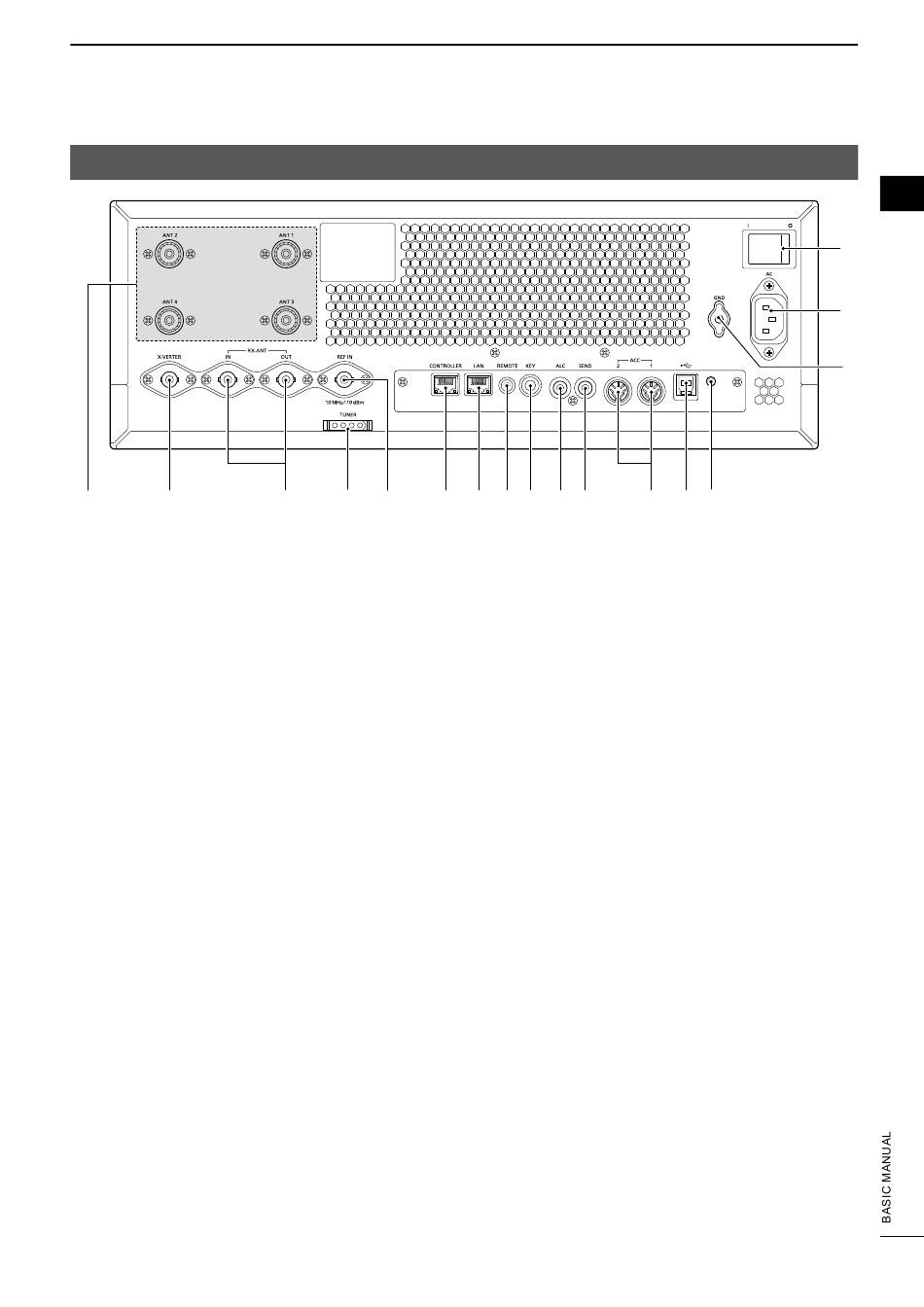

Rear panel (RF deck)

16 15
1 MAIN POWER SUPPLY SWITCH [I/O] (p. 3-1)
Toggle to turn the internal power supply ON or OFF.
2 AC POWER SOCKET [AC] (p. 2-2)
Connect the supplied power cable to an AC
receptacle.
3 GROUND TERMINAL [GND] (p. 2-1)
Connect to ground to prevent electrical shocks, TVI,
BCI, and other problems.
4 USB PORT (TYPE-B) [USB] (p. 13-3)
For digital data input or output.
5 ACC SOCKET [ACC 1]/[ACC 2] (p. 13-1)
Connect to devices to control an external unit or to
control the transceiver.
6 SEND JACK [SEND] (p. 13-3)
Connect to control transmit with non-Icom external
units.
7 ALC JACK [ALC] (p. 13-3)
Connect to the ALC output jack of a non-Icom linear
amplifier.
8 STRAIGHT KEY JACK [KEY] (p. 13-3)
Connect to a straight key or external electronic
keyer with a 6.35 mm (1/4 inch) standard plug.
9 REMOTE CONTROL JACK [REMOTE] (p. 13-2)
Connect to a PC or other transceiver for remote
control.
10 ETHERNET CONNECTOR [LAN] (p. 13-3)
Connect to a PC network through a LAN.
L Confirm the Network settings before connecting to a
network.
14 13 12 11
1-4
10 9 8 7 6 5
11 CONTROLLER CONNECTOR [CONTROLLER]
(p. 2-2)
Connect to the controller with the supplied control
cable.
L Operation cannot be guaranteed if you use other than
the specified cable or a network switch.
12 REFERENCE SIGNAL INPUT [REF IN] (p. 13-2)
Input for a 10 MHz reference signal through the
BNC connector.
13 TUNER CONTROL SOCKET [TUNER]
(pp. 2-2, 13-3)
Accepts the control cable from an optional AH-730
automatic antenna tuner.
14 RECEIVE ANTENA [RX-ANT IN]/[RX-ANT OUT]
(p. 13-2)
Connect to an external unit, such as preamplifier or
RF filter, using BNC connectors.
L This is located between the transmit/receive switching
circuit and receiver's RF stage.
15 TRANSVERTER CONNECTOR [X-VERTER]
(pp. 2-4, 13-2)
Connect to an external transverter for input/output.
16 ANTENNA CONNECTOR [ANT 1] ~ [ANT 4]
(p. 13-2)
Connect a 50 Ω antenna.
PANEL DESCRIPTION
*
4
* The switch is not used.
