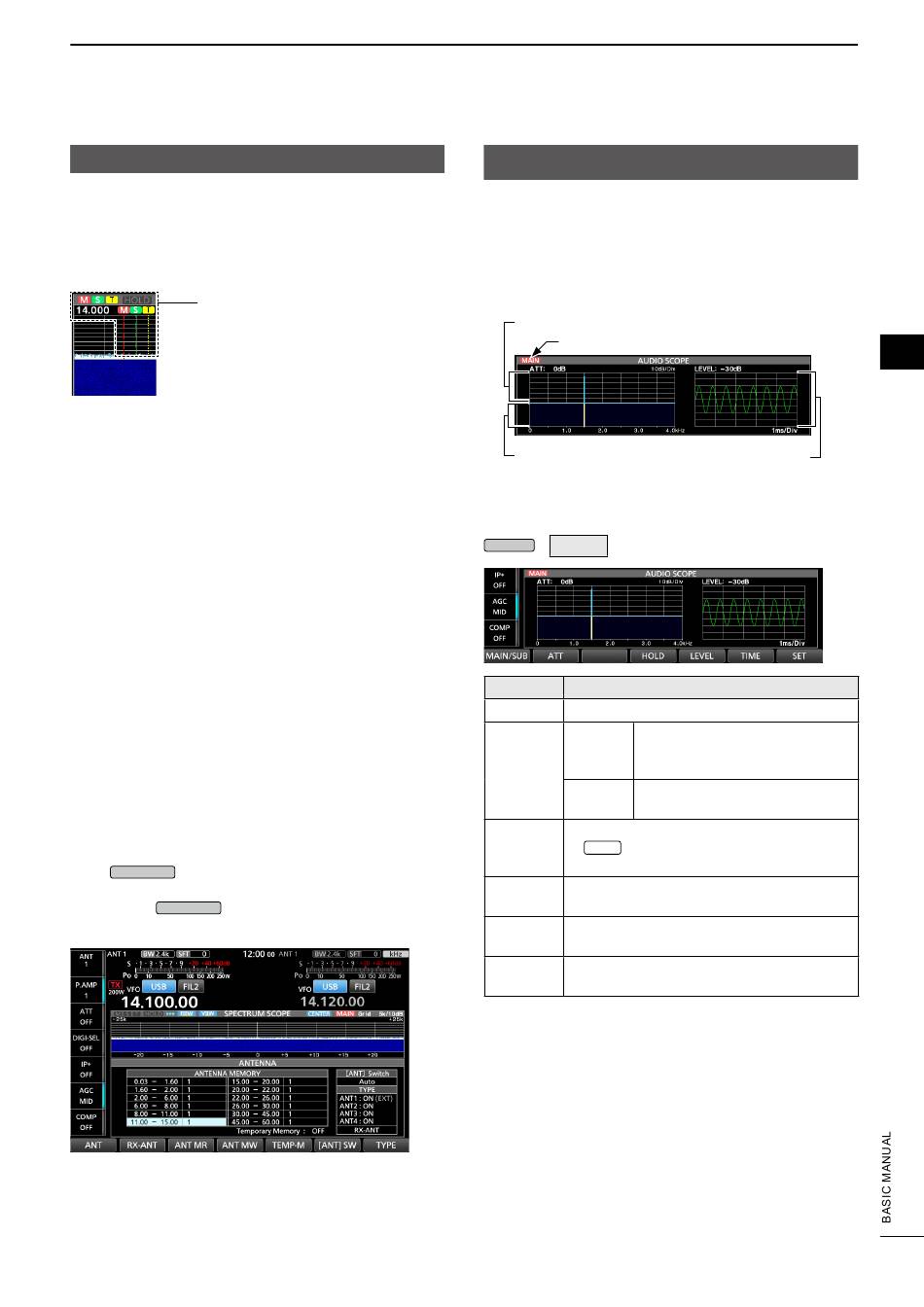

Spectrum scope screen

D Marker

The Marker displays the operating frequency for both
the Main and Sub bands in the SPECTRUM SCOPE
screen.
M: The Main band marker
• Marks the Main band frequency.
S: The Sub band marker
• Marks the Sub band frequency.
T: The TX marker
• Marks the transmit frequency.
• About Main and Sub Marker
In the Fixed or Scroll mode, the Main and Sub band
Marker displays the operating frequency within a
specified frequency range. So, the transceiver always
displays the Main or Sub band marker in the Scope
screen.
In the Center mode, the operating frequency stays in
the center of the screen. Thus, the transceiver does
not display either the Main band marker on the Main
scope, or the Sub band marker on the Sub scope.
L When the Hold function is ON, the RX Marker is displayed
to indicate the operating frequency's location.

D Mini scope screen

The Mini scope screen can be simultaneously
displayed with another function displays, such as
the RTTY DECODE screen and the AUDIO SCOPE
screen or the FUNCTION screen.
Push to turn the Mini scope screen ON or
M.SCOPE
OFF.
L Hold down for 1 second to display the
M.SCOPE
SPECTRUM SCOPE screen.
Example: Displaying the Mini scope screen while the
ANTENNA screen is displayed.

Audio scope screen

This audio scope enables you to display the received
signal's frequency component on the FFT scope, and
its waveform components on the Oscilloscope. The
FFT scope also has a waterfall.
• AUDIO SCOPE screen
FFT scope zone
MAIN/SUB band icon
Waterfall zone

D Using the Audio Scope

Display the AUDIO SCOPE screen.
» AUDIO
MENU
Key
MAIN/SUB Selects the Main or Sub band.
Touch
ATT
Touch for
1 second
Turns the Hold function ON or OFF.
HOLD • is displayed and freezes the current
HOLD
audio spectrum.
Selects the Oscilloscope level.
LEVEL
• 0, –10, –20, or –30 dB
Selects the Oscilloscope sweep time.
TIME
• 1, 3, 10, 30, 100, or 300 ms/Div
Displays the AUDIO SCOPE SET screen.
SET
L See the Advanced manual for details.
5-2
SCOPE OPERATION
Oscilloscope
Action
Selects the attenuator for the FFT
scope.
• 0 (OFF), 10, 20, or 30 dB
Turns OFF the attenuator. (0 dB)
