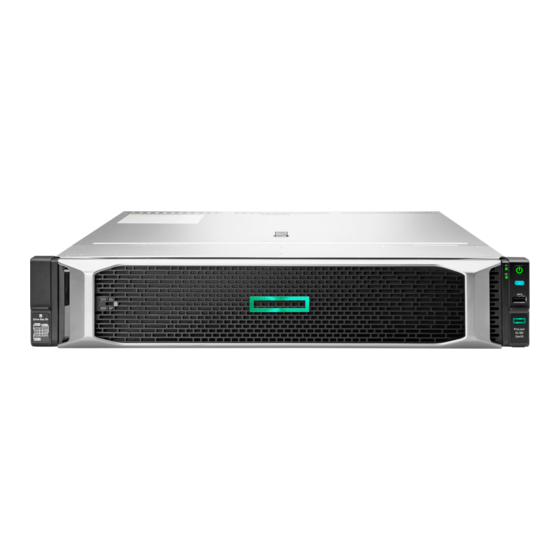

HPE ProLiant DL180 Gen10 User Manual

HPE ProLiant DL180 Gen10 User Manual

Hide thumbs Also See for ProLiant DL180 Gen10:
Table of Contents

Advertisement

Quick Links

Download this manual
HPE ProLiant DL180 Gen10 Server User Guide
Abstract
This document is for the person who installs, administers, and troubleshoots servers and storage systems. Hewlett
Packard Enterprise assumes you are qualified in the servicing of computer equipment and trained in recognizing hazards
in products with hazardous energy levels.
Part Number: 874513-008
Published: September 2020
Edition: 8

Advertisement

Table of Contents
loading

Related Manuals for HPE ProLiant DL180 Gen10

Summary of Contents for HPE ProLiant DL180 Gen10

  • Page 1 HPE ProLiant DL180 Gen10 Server User Guide Abstract This document is for the person who installs, administers, and troubleshoots servers and storage systems. Hewlett Packard Enterprise assumes you are qualified in the servicing of computer equipment and trained in recognizing hazards in products with hazardous energy levels.
  • Page 2 © Copyright 2017–2020 Hewlett Packard Enterprise Development LP Notices The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.

  • Page 3: Table Of Contents

    Removing a riser board......................................36 Removing the air baffle......................................37 Installing the air baffle....................................... 38 Setup..........................40 Optional service..........................................40 Initial server installation......................................40 HPE Installation Service..................................40 Setting up the server....................................41 Operational requirements......................................43 Space and airflow requirements................................. 44 Temperature requirements................................... 44 Power requirements....................................45...
  • Page 4 Installing the optical drive in the SFF chassis ........................... 66 Storage controller options.......................................69 Storage controller installation guidelines............................. 69 Installing an HPE Smart Array controller............................69 Configuring an HPE Smart Array Gen10 controller........................71 Energy pack options........................................72 HPE Smart Storage Battery.................................. 72 HPE Smart Storage Hybrid Capacitor.............................72 Installing an energy pack..................................73...
  • Page 5 Installing the chassis intrusion detection switch.............................103 HPE Trusted Platform Module 2.0 Gen10 option..........................104 Overview........................................104 HPE Trusted Platform Module 2.0 guidelines........................104 Installing and enabling the HPE TPM 2.0 Gen10 option....................105 Cabling..........................110 Cabling guidelines........................................110 Cable routing: LFF drive model..................................111 LFF drive to system board..................................111...
  • Page 6 Environmental specifications....................................148 Mechanical specifications......................................148 Power supply specifications....................................149 HPE 500W Flex Slot Platinum Hot-plug Low Halogen Power Supply..............149 HPE 800W Flex Slot Platinum Hot-plug Low Halogen Power Supply..............150 HPE 800W Flex Slot Titanium Hot-plug Low Halogen Power Supply..............151 HPE 800W Flex Slot Universal Hot-plug Low Halogen Power Supply..............
  • Page 7 Accessing Hewlett Packard Enterprise Support............................. 156 Accessing updates........................................156 Remote support..........................................157 Warranty information......................................157 Regulatory information......................................157 Documentation feedback......................................158...

  • Page 8: Component Identification

    Component identification Front panel components • 8-bay LFF drive model Item Description LFF drives Optical drive (optional) iLO Service Port USB 3.0 port • 12-bay LFF drive model Item Description LFF drives USB 3.0 port • 8-bay SFF drive model Component identification...
  • Page 9 Item Description Optical drive (optional) 8-bay SFF drive bays (optional) SFF drives iLO Service Port USB 3.0 port Serial number/iLO information pull tab • 16-bay SFF drive model Item Description Optical drive (optional) SFF drives iLO Service Port USB 3.0 port Serial number/iLO information pull tab •...

  • Page 10: Serial Number/Ilo Information Pull Tab

    The other side shows the default iLO account information. Use a mobile device to scan the QR code label to display the server mobile product page (https://www.hpe.com/qref/ dl180gen10). This page contains links to server setup information, spare part numbers, QuickSpecs, troubleshooting resources, and other useful product links.

  • Page 11: Uid Button Functionality

    UID button functionality The UID button can be used to display the Server Health Summary when the server will not power on. For more information, see the latest HPE iLO 5 User Guide on the Hewlett Packard Enterprise website. Power fault LEDs The following table provides a list of power fault LEDs, and the subsystems that are affected.

  • Page 12: Rear Panel Components

    Subsystem LED behavior FlexibleLOM 5 flashes Removable HPE Flexible Smart Array controller 6 flashes System board PCIe slots 7 flashes Power backplane or storage backplane 8 flashes Power supply 9 flashes Rear panel components Rear panel components with optional rear 2-bay SFF SAS/SATA drives...

  • Page 13: Rear Panel Leds

    Item Description PCIe slots 1 - 3 top to bottom (primary riser for processor 1) FlexibleLOM (optional) Serial port (optional) PCIe slots 4 - 6 (secondary riser for processor 2, optional) Flexible Slot power supply 1 (hot-plug) Flexible Slot power supply 2 (hot-plug, optional) NIC port 2 NIC port 1 VGA port...

  • Page 14: Pcie Riser Board Slot Definitions

    NIC activity LED Solid green = Link to network Flashing green = Network active Off = No network activity UID LED Solid blue = Activated Flashing blue: • 1 flash per second = Remote management or firmware upgrade in progress •...
  • Page 15 Item Type Form factor Connector link width Negotiable link width PCIe 3.0 Full height, full length 16, 8, 4, 1 PCIe 3.0 Full height, full length 8, 4, 1 • Three-slot PCIe riser cage assembly: By default, installed in the primary PCIe riser connector Item Type Form factor...
  • Page 16 Item Type Form factor Connector link width Negotiable link width PCIe 3.0 Full height, full length 16, 8, 4, 1 PCIe 3.0 Half height, half length 8, 4, 1 • x8, x8, x8 secondary riser cage assembly: Install in the secondary PCIe riser connector. Component identification...

  • Page 17: Pcie Slot Description

    Item Type Form factor Connector link width Negotiable link width PCIe 3.0 Full height, full length 8, 4, 1 PCIe 3.0 Full height, half length 8, 4, 1 PCIe 3.0 Half height, half length 8, 4, 1 PCIe slot description Item Description Definition...

  • Page 18: System Board Components

    System board components Item Description Secondary PCIe riser connector for processor 2 Smart Array modular controller connector microSD card slot TPM connector Serial port connector iLO Service Port connector Primary PCIe riser connector for processor 1 System maintenance switch Mini-SAS port 1 Mini-SAS port 3 Media Module adapter connector Mini-SAS port 2...

  • Page 19: System Maintenance Switch Descriptions

    Front I/O cable connector Fan connector 6 Fan connector 5 Fan connector 4 Fan connector (Reserved) Fan connector 3 Fan connector 2 Fan connector 1 Energy pack connector Chassis intrusion detection switch connector Drive backplane power connector Rear drive power connector Non-hot-plug power supply connector System battery Internal USB 3.0 port...

  • Page 20: Dimm Label Identification

    Position Default Function — Reserved — Reserved To access the redundant ROM, set S1, S5, and S6 to On. When the system maintenance switch position 6 is set to the On position, the system is prepared to restore all configuration settings to their manufacturing defaults.

  • Page 21: Dimm Slot Locations

    R = RDIMM (registered) L = LRDIMM (load reduced) E = Unbuffered ECC (UDIMM) For more information about product features, specifications, options, configurations, and compatibility, see the HPE DDR4 SmartMemory QuickSpecs on the Hewlett Packard Enterprise website (https://www.hpe.com/support/ DDR4SmartMemoryQS). DIMM slot locations DIMM slots are numbered sequentially (1 through 8) for each processor.

  • Page 22: Processor, Heatsink, And Socket Components

    The arrow points to the front of the server. Processor, heatsink, and socket components Item Description Heatsink nuts Processor carrier Pin 1 indicator Heatsink guide/keying feature Alignment post Heatsink keying frame Symbol also on the processor and frame. Component identification...

  • Page 23: Drive Leds And Buttons

    Drive LEDs and buttons Low-profile LFF drive LED definitions Item Status Definition Fault Solid amber The drive has failed. \Locate Solid blue The drive is operating normally and being identified by a management application. Flashing amber/blue The drive has failed, or a predictive failure alert has been received for this drive;...

  • Page 24: Smart Carrier (Sc) Drive Led Definitions

    Smart Carrier (SC) drive LED definitions Item Status Definition Locate Solid blue The drive is being identified by a host application. Flashing blue The drive carrier firmware is being updated or requires an update. Activity Rotating green Drive activity ring No drive activity Do not Solid white...

  • Page 25: Drive Bay Numbering

    • Rear box Drive bay numbering • 8-bay LFF hot-plug drive model • 12-bay LFF hot-plug drive model Component identification...
  • Page 26 • 8-bay SFF hot-plug drive model • 16-bay SFF hot-plug drive model • 24-bay SFF hot-plug drive model Component identification...

  • Page 27: Fan Bay Numbering

    Fan bay numbering Component identification...

  • Page 28: Operations

    Operations Power up the server Procedure 1. To power up the server, use one of the following methods: • Press the Power On/Standby button. • Use the virtual power button through iLO. Power down the server Before powering down the server for any upgrade or maintenance procedures, perform a backup of critical server data and programs.

  • Page 29: Removing The Server From The Rack

    a. Power down the server. b. Disconnect all peripheral cables from the server. c. Disconnect each power cord from the server. 2. Disengage the server from the rack: a. Pull down the quick release levers on each side of the server. b.

  • Page 30: Releasing The Cable Management Arm

    a. Disconnect all peripheral cables from the server. b. Disconnect each power cord from the server. 3. Extend the server from the rack. 4. Remove the server from the rack. For instructions on how to extend or remove the server from the rack, see the documentation that ships with the rack rail system.

  • Page 31: Removing The Access Panel

    Removing the access panel WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the internal system components to cool before touching them. CAUTION: To prevent damage to electrical components, take the appropriate anti-static precautions before beginning any installation, removal, or replacement procedure.

  • Page 32: Installing The Access Panel

    Installing the access panel Prerequisites • T-15 Torx screwdriver • All internal cables must be connected and secured with clips. Procedure 1. Place the access panel on top of the server with the latch open. Allow the panel to extend past the rear of the server approximately 1.25 cm (0.5 in). 2.

  • Page 33: Removing A Riser Cage

    Removing a riser cage WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the internal system components to cool before touching them. Procedure 1. If installed, remove the front bezel. 2. Power down the server. 3.

  • Page 34: Removing An Expansion Slot Blank

    Removing an expansion slot blank Prerequisites T-10 Torx screwdriver Procedure 1. Power down the server. 2. Remove all power: a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server. 3. Do one of the following: •...
  • Page 35 • Primary riser cage • Secondary riser cage ◦ Slot 4 ◦ Slot 5 or 6 Operations...

  • Page 36: Removing A Riser Board

    Removing a riser board Prerequisites T-15 Torx screwdriver Procedure 1. Power down the server. 2. Remove all power: a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server. 3. Do one of the following: Extend the server from the rack.

  • Page 37: Removing The Air Baffle

    • Secondary riser cage Removing the air baffle CAUTION: For proper cooling, do not operate the server without the access panel, baffles, expansion slot blanks, or blanks installed. If the server supports hot-plug components, minimize the amount of time the access panel is open. Procedure 1.

  • Page 38: Installing The Air Baffle

    6. Remove the access panel. 7. If the 12G SAS expander is installed, remove the riser cage. 8. Remove the air baffle. Installing the air baffle CAUTION: For proper cooling, do not operate the server without the access panel, baffles, expansion slot blanks, or blanks installed.
  • Page 39 3. Install the access panel. 4. Install the server into the rack. 5. Connect all peripheral cables to the server. 6. Connect each power cord to the server. 7. Connect each power cord to the power source. 8. Power up the server. 9.

  • Page 40: Setup

    HPE-supported products from other vendors that are sold by HPE or by HPE authorized resellers. The Installation Service is part of a suite of HPE deployment services that are designed to give users the peace of mind that comes from knowing that their HPE and HPE-supported products have been installed by an HPE specialist.

  • Page 41: Setting Up The Server

    Full coverage during the warranty period for products that require installation by an HPE authorized technical specialist. For more information on the features, limitations, provisions, and ordering information of the HPE Installation Service, see this Hewlett Packard Enterprise website: https://www.hpe.com/support/installation-service...
  • Page 42 Remotely: Connect to the iLO web interface and run a remote console: a. Verify the following: ◦ iLO is licensed to use the remote console feature. If iLO is not licensed, visit the HPE website: http://www.hpe.com/info/ilo ◦ The iLO Management Port is connected to a secure network.

  • Page 43: Operational Requirements

    To configure the server to boot from a SAN, see the following guide: https://www.hpe.com/info/boot-from-san-config-guide • If an HPE Smart Array SR controller is installed, use HPE Smart Storage Administrator to create arrays: a. From the boot screen, press F10 to run Intelligent Provisioning. b. From Intelligent Provisioning, run HPE Smart Storage Administrator.

  • Page 44: Space And Airflow Requirements

    Space and airflow requirements To allow for servicing and adequate airflow, observe the following space and airflow requirements when deciding where to install a rack: • Leave a minimum clearance of 63.5 cm (25 in) in front of the rack. •...

  • Page 45: Power Requirements

    Power requirements Installation of this equipment must comply with local and regional electrical regulations governing the installation of information technology equipment by licensed electricians. This equipment is designed to operate in installations covered by NFPA 70, 1999 Edition (National Electric Code) and NFPA-75, 1992 (code for Protection of Electronic Computer/Data Processing Equipment).

  • Page 46: Rack Warnings

    WARNING: To reduce the risk of fire or burns after removing the energy pack: • Do not disassemble, crush, or puncture the energy pack. • Do not short external contacts. • Do not dispose of the energy pack in fire or water. After power is disconnected, battery voltage might still be present for 1s to 160s.

  • Page 47: Electrostatic Discharge

    WARNING: When installing a server in a telco rack, be sure that the rack frame is adequately secured at the top and bottom to the building structure. Electrostatic discharge Be aware of the precautions you must follow when setting up the system or handling components. A discharge of static electricity from a finger or other conductor may damage system boards or other static-sensitive devices.
  • Page 48 6. Install the rack rail hook-and-loop strap. 7. Secure the cables to the cable management arm. IMPORTANT: When using cable management arm components, leave enough slack in each of the cables to prevent damage to the cables when the server is extended from the rack. 8.

  • Page 49: Post Screen Options

    Failure to observe UEFI requirements for ProLiant Gen10 servers can result in errors installing the operating system, failure to recognize boot media, and other boot failures. For more information on these requirements, see the HPE UEFI Requirements on the Hewlett Packard Enterprise website.

  • Page 50: Installing The Operating System With Intelligent Provisioning

    Before installing an operating system, observe the following: • Be sure to read the HPE UEFI requirements for ProLiant servers on the Hewlett Packard Enterprise website. If UEFI requirements are not met, you might experience boot failures or other errors when installing the operating system.

  • Page 51: Hardware Options Installation

    This chapter provides detailed instructions on how to install hardware options. For more information on supported options, see the product QuickSpecs on the website at: http://www.hpe.com/info/qs To view the warranty for your server and supported options, see Warranty information. Introduction Install any hardware options before initializing the server.

  • Page 52: Drive Options

    • Hot-plug SFF SATA or SAS drives The embedded HPE Smart Array S100i SR Gen10 Controller supports SATA drive installation. For SAS support, install a Smart Array Gen10 type-a or type-p controller option. Installing a hot-plug SAS or SATA drive...
  • Page 53 Procedure 1. If installed, remove the front bezel. 2. Remove the drive blank. • • 3. Prepare the drive. • Hardware options installation...
  • Page 54 • 4. Install the drive. • • Hardware options installation...

  • Page 55: Drive Cage Options

    5. If removed, install the front bezel. 6. Determine the status of the drive from the drive LED definitions. The installation is complete. To configure arrays, see the HPE Smart Array SR Gen10 Configuration Guide at the Hewlett Packard Enterprise website. Drive cage options The server supports the following drive cage options: •...
  • Page 56 Do one of the following: • Extend the server from the rack. Remove the server from the rack. • Remove the access panel. Remove the air baffle. Remove the 8-bay SFF drive box blank. Install the 8-bay SFF drive cage. 10.

  • Page 57: Installing The Rear 2-Bay Sff Drive Cage

    14. Install the air baffle. 15. Install the access panel. 16. Install the server into the rack. 17. Connect all peripheral cables to the server. 18. Connect each power cord to the server. 19. Connect each power cord to the power source. 20.
  • Page 58 Remove the air baffle. If installed, remove one of the following components: a. Secondary riser cage blank b. Secondary riser cage Install the rear 2-bay SFF drive cage: a. Remove the screw from the system board. b. Install the rear 2-bay SFF drive cage, and then install the screws. Hardware options installation...

  • Page 59: Installing The 8 To 12 Upgrade Option In The Lff Chassis

    10. Connect the Mini-SAS cable or the SATA and the SATA management port cables. 11. Connect rear 2-bay SFF power cable. 12. Install the drives. 13. Install the air baffle. 14. Install the access panel. 15. Install the server into the rack. 16.
  • Page 60 a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server. Disconnect all peripheral cables from the server. Do one of the following: • Extend the server from the rack. • Remove the server from the rack. Remove the access panel.
  • Page 61 Retain the fillers for future use. 12. Install the partition. a. Lift the top cover upward slightly. b. Insert the partition. c. Secure the partition with two screws. 13. Remove all fans. Hardware options installation...
  • Page 62 14. Install the drive backplane. 15. Connect the Mini-SAS cable. 16. Disconnect the existing power cable. 17. Connect the power cable. 18. Install the drive in box 1. 19. Install all fans. Hardware options installation...

  • Page 63: Optical Drive Cage And Optical Drive Options

    20. Install the air baffle. 21. Install the access panel. 22. Install the server into the rack. 23. Connect all peripheral cables to the server. 24. Connect each power cord to the server. 25. Connect each power cord to the power source. 26.
  • Page 64 a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server. Disconnect all peripheral cables from the server. Do one of the following: • Extend the server from the rack. • Remove the server from the rack. Remove the access panel.
  • Page 65 b. Install the optical drive into cage. c. Install the optical drive cage into the box 1. Hardware options installation...

  • Page 66: Installing The Optical Drive In The Sff Chassis

    d. Connect the optical drive cable. 11. Connect the iLO service port cable to system board. 12. Install the air baffle. 13. Install the access panel. 14. Install the server into the rack. 15. Connect all peripheral cables to the server. 16.
  • Page 67 a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server. Disconnect all peripheral cables from the server. Do one of the following: • Extend the server from the rack. • Remove the server from the rack. Remove the access panel.
  • Page 68 10. Install the cage assembly into box 1. 11. Connect the optical drive cable. 12. Install the air baffle. 13. Install the access panel. 14. Install the server into the rack. 15. Connect all peripheral cables to the server. 16. Connect each power cord to the server. 17.

  • Page 69: Storage Controller Options

    Storage controller options The server supports the following storage controllers: • For SATA drives only – Embedded HPE Smart Array S100i SR Gen10 Controller. • For SAS and SATA drives: ◦ Smart Array type-a modular controller ◦ Smart Array PCIe plug-in controller For more information on PCIe slot descriptions, see PCIe riser board slot definitions.
  • Page 70 • If the new Smart Array is the new boot device, install the device drivers. • If the new Smart Array is not the new boot device, go to the next step. 5. Ensure that users are logged off and that all tasks are completed on the server. CAUTION: In systems that use external data storage, be sure that the server is the first unit to be powered down and the last to be powered back up.

  • Page 71: Configuring An Hpe Smart Array Gen10 Controller

    For the Smart Array PCIe plug-in controller, install the controller into an expansion slot. Cable the controller. 10. To enable HPE Smart Array SR SmartCache in a Smart Array P-class Gen10 controller, install an energy pack. SmartCache and CacheCade enable solid-state drives to be used as caching devices for hard drive media. These features accelerate access to frequently used data by caching hot data from the hard drives onto the solid-state drives.

  • Page 72: Energy Pack Options

    One energy pack option can support multiple devices. An energy pack option is required for P-class Smart Array controllers. Once installed, the status of the energy pack displays in HPE iLO. For more information, see the HPE iLO user guide on the Hewlett Packard Enterprise website (https://www.hpe.com/support/ilo-docs).

  • Page 73: Installing An Energy Pack

    Storage controller backup power cable (ships with the controller) ◦ Energy pack option • If you are installing the HPE Smart Storage Hybrid Capacitor, verify that the system BIOS meets the minimum firmware requirements. Procedure If installed, remove the front bezel.
  • Page 74 Route the energy pack cable as shown in below illustration. 10. Connect the storage controller backup power cable. 11. Install the air baffle. 12. If removed, install the secondary riser cage. 13. Install the access panel. 14. Install the server into the rack. 15.

  • Page 75: M.2 Ssd Enablement Option

    The M.2 SSD enablement board is supported in the PCIe3 expansion slots 1–4. Use the embedded HPE Smart Array S100i SR Gen10 Controller to manage the M.2 SATA SSDs. The S100i SR Gen10 SW RAID support requires that the server boot mode be set to UEFI.

  • Page 76: Processor Heatsink Assembly Option

    19. Power up the server. 20. If removed, install the front bezel. The installation is complete. To configure the M.2 SATA SSDs, see the HPE Smart Array SR Gen10 Configuration Guide at the Hewlett Packard Enterprise website. Processor heatsink assembly option...

  • Page 77: Installing The Processor Heatsink Assembly

    Do not touch the heatsink fins. IMPORTANT: Existing HPE ProLiant and HPE Synergy Gen10 server products containing first-generation Intel Xeon Scalable processors may not be upgraded to second-generation Intel Xeon Scalable processors at this time.
  • Page 78 a. Locate and align the Pin 1 indicator on the processor frame and the socket. b. Align the processor heatsink assembly with the heatsink alignment posts and gently lower it down until it sits evenly on the socket. The heatsink alignment posts are keyed. The processor will only install one way. A standard heatsink is shown, your heatsink might look different.

  • Page 79: Enable The Enhanced Cooling Function

    11. Install the air baffle. 12. Install the access panel. 13. Install the server into the rack. 14. Connect all peripheral cables to the server. 15. Connect each power cord to the server. 16. Connect each power cord to the power source. 17.

  • Page 80: Fan Mode Behavior

    Configuration Fan redundancy Bay 1 Bay 2 Bay 3 Bay 4 Bay 5 Bay 6 One processor with rear 2-SFF drives installed Two processors Blank Two processors Fan mode behavior • In nonredundant fan mode, a fan failure or a missing fan causes: ◦...
  • Page 81 10. Install the fan: a. Install the fan into the fan cage. b. Route the fan cable through the groove on the fan cage. c. Connect the fan cable to the system board. 11. Install the air baffle. 12. Install the access panel. 13.

  • Page 82: Memory Options

    DIMMs can cause the server to halt during BIOS initialization. All memory installed in the server must be of the same type. Installing a DIMM For specific DIMM population and memory speed information, see the product QuickSpecs on the Hewlett Packard Enterprise website (http://www.hpe.com/info/qs). Procedure If installed, remove the front bezel. Power down the server.

  • Page 83: Riser Board And Riser Cage Options

    The DIMM slots are structured to ensure proper installation. If you try to insert a DIMM but it does not fit easily into the slot, you might have positioned it incorrectly. Reverse the orientation of the DIMM and insert it again. Install the air baffle.
  • Page 84 a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server. Disconnect all peripheral cables from the server. Do one of the following: • Extend the server from the rack. • Remove the server from the rack. Remove the access panel.

  • Page 85: Installing A Pcie Riser Cage

    13. Connect all peripheral cables to the server. 14. Connect each power cord to the server. 15. Connect each power cord to the power source. 16. Power up the server. The installation is complete. Installing a PCIe riser cage Prerequisites Before you perform this procedure, make sure that you have a T-15 Torx screwdriver available.
  • Page 86 • Rear 2-bay SFF drive cage If installing the expansion board, do it now. Install the riser cage: a. Align the riser board with the corresponding connectors on the system board, and then press down the PCIe riser cage. b. Push down the release tab, rotate it 180° clockwise, and then press it flat on the PCIe riser cage. •...

  • Page 87: Expansion Board Options

    • Secondary riser cage Install the access panel. 10. Install the server into the rack. 11. Connect all peripheral cables to the server. 12. Connect each power cord to the server. 13. Connect each power cord to the power source. 14.

  • Page 88: Pcie Slot Guidelines For Network Cards And Pcie Workload Accelerator Options

    Slot 5 Slot 6 HPE Ethernet networking card HPE Ethernet 4-port networking card HPE 10 Gb networking card (Supported up to max 3 pcs) HPE 25/40/100 Gb networking card (Supported up to max 1 pc) HPE PCIe Workload Accelerator options (Supported up to max 3 pcs)
  • Page 89 • Primary riser cage • Secondary riser cage ◦ Slot 4 ◦ Slot 5 or 6 Hardware options installation...

  • Page 90: Installing The Flexiblelom Adapter

    12. If internal cables are required for the expansion board, connect the cables. 13. If removed, install the air baffle. 14. Install the riser cage. 15. Connect all cables to system board/backplane. 16. Install the access panel. 17. Install the server into the rack. 18.
  • Page 91 Remove all power: a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server. Disconnect all peripheral cables from the server. Do one of the following: Extend the server from the rack. • Remove the server from the rack. •...

  • Page 92: Installing The Media Module Adapter

    10. Install the FlexibleLOM riser cage. 11. Install the access panel. 12. Install the server into the rack. 13. Connect the LAN segment cables. 14. Connect all peripheral cables to the server. 15. Connect each power cord to the server. 16.
  • Page 93 • Extend the server from the rack. • Remove the server from the rack. Remove the access panel. Remove the primary riser cage. Remove the Media Module adapter blank. Install the Media Module adapter: a. Align the Media Module adapter to the opening on the rear panel. b.
  • Page 94 d. Install the Media Module adapter screws. 10. Install the primary riser cage. 11. Install the access panel. 12. Install the server into the rack. 13. Connect all peripheral cables to the server. 14. Connect each power cord to the server. 15.

  • Page 95: Internal Usb Device Option

    Internal USB device option The server has one internal USB 3.0 port. You can use this port to install internal USB device, that is intended to be rarely removed, such as USB flash media devices for booting up from flash solutions or for data backup/redundancy. Installing an internal USB device Procedure If installed, remove the front bezel.

  • Page 96: Installing The Serial Port

    14. Power up the server. 15. If removed, install the front bezel. The installation is complete. Installing the serial port Prerequisites Before you perform this procedure, make sure that you have a hex nut screwdriver available. Procedure If installed, remove the front bezel. Power down the server.

  • Page 97: Power Supply Option

    Hot-plug power supply calculations For hot-plug power supply specifications and calculators to determine electrical and heat loading for the server, see the Hewlett Packard Enterprise Power Advisor website (https://www.hpe.com/info/poweradvisor/online). Installing the redundant power supply assembly CAUTION: All power supplies installed in the server must have the same output power capacity. Verify that all power supplies have the same part number and label color.
  • Page 98 Prerequisites Before you perform this procedure, make sure that you have the following items available: • T-10 Torx screwdriver • T-15 Torx screwdriver Procedure If installed, remove the front bezel. Power down the server. Remove all power: a. Disconnect each power cord from the power source. b.
  • Page 99 Secondary riser cage • • Rear 2-bay SFF drive cage 10. Remove the non-hot-plug power supply. Hardware options installation...
  • Page 100 11. Install the power supply cage: a. Align the arrow on the power supply cage with the arrow on the chassis as shown in following illustration. b. Install the power supply cage. Hardware options installation...
  • Page 101 12. Install the power supply in bay 1. 13. If enabling redundant power supply mode, do the following: a. Remove the power supply bay 2 blank. Hardware options installation...
  • Page 102 b. Install the power supply in bay 2. 14. If removed, install one of the following items: • Secondary riser cage blank Secondary riser cage • • Rear 2-bay SFF SAS/SATA drive cage 15. Install the air baffle. 16. Install the access panel. 17.

  • Page 103: Installing The Chassis Intrusion Detection Switch

    Installing the chassis intrusion detection switch Procedure If installed, remove the front bezel. Power down the server. Remove all power: a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server. Disconnect all peripheral cables from the server. Remove the air baffle.

  • Page 104: Hpe Trusted Platform Module 2.0 Gen10 Option

    HPE Trusted Platform Module 2.0 Gen10 option Overview Use these instructions to install and enable an HPE TPM 2.0 Gen10 Kit in a supported server. This option is not supported on a Gen9 and earlier server. This procedure includes three sections: 1.

  • Page 105: Installing And Enabling The Hpe Tpm 2.0 Gen10 Option

    Hewlett Packard Enterprise is not liable for blocked data access caused by improper TPM use. For operating instructions, see the TPM documentation or the encryption technology feature documentation provided by the operating system. Installing and enabling the HPE TPM 2.0 Gen10 option Installing the Trusted Platform Module board Preparing the server for installation Procedure 1.
  • Page 106 8. Remove any components or cables that may prevent access to the TPM connector. 9. Proceed to Installing the TPM board and cover. Installing the TPM board and cover Procedure 1. Observe the following alerts: CAUTION: If the TPM is removed from the original server and powered up on a different server, data stored in the TPM including keys will be erased.
  • Page 107 4. Proceed to Preparing the server for operation. Preparing the server for operation Procedure 1. Install any options or cables previously removed to access the TPM connector. 2. Install the access panel. 3. Install the server into the rack. 4. Connect each power cord to the server. 5.
  • Page 108 • "Current TPM Type" is set to TPM 2.0. • "Current TPM State" is set to Present and Enabled. "TPM Visibility" is set to Visible. • 4. If changes were made in the previous step, press the F10 key to save your selection. 5.
  • Page 109 For more information, see the Microsoft website. Retaining the BitLocker recovery key/password The recovery key/password is generated during BitLocker setup, and can be saved and printed after BitLocker is enabled. When using BitLocker, always retain the recovery key/password. The recovery key/password is required to enter Recovery Mode after BitLocker detects a possible compromise of system integrity.

  • Page 110: Cabling

    Cabling Cabling guidelines The cable colors in the cabling diagrams used in this chapter are for illustration purposes only. Observe the following guidelines when working with server cables. Before connecting cables • Note the port labels on the PCA components. Not all these components are used by all servers: ◦...

  • Page 111: Cable Routing: Lff Drive Model

    • Remove cables that are no longer being used. Retaining them inside the server can restrict airflow. If you intend to use the removed cables later, label and store them for future use. Cable routing: LFF drive model LFF drive to system board Cabling...

  • Page 112: Lff Drive To Smart Array P408I-A Sr Gen10 Controller

    Color Description Orange LFF box 1 to Mini-SAS port 1 Blue LFF box 2 to Mini-SAS port 2 Gold LFF box 3 to Mini-SAS port 3 LFF drive to Smart Array P408i-a SR Gen10 controller Color Description Orange Box 1 Mini-SAS cable to the onboard SATA port 1* Blue Box 2 to the Smart Array P408i-a SR Gen10 controller port 1 Gold...

  • Page 113: Lff Drive To Type-P Controller

    LFF drive to type-p controller Color Description Orange Box 1 Mini-SAS cable to the onboard SATA port 1* Blue Box 2 to the type-p controller port 1 Gold Box 3 to the type-p controller port 2 * Box 1 can be connected to a type-a controller port 1. 8-bay LFF and optical drive power cable Color Description...

  • Page 114: 12-Bay Lff Power Cable

    Blue P3 power cable to LFF box 3 Gold P4 power cable to the optical drive 12-bay LFF power cable Color Description Orange P2 power cable to LFF box 1 Blue P3 power cable to LFF box 2 Gold P4 power cable to LFF box 3 Cable routing: SFF drive model Box 1 to Smart Array P408i-a SR Gen10 controller Cabling...

  • Page 115: Box 1 To Type-P Controller

    Box 1 to type-p controller Box 2 to Smart Array P408i-a SR Gen10 controller Cabling...

  • Page 116: Box 2 To Type-P Controller

    Box 2 to type-p controller Box 3 to system board Cabling...

  • Page 117: Box 3 To Smart Array P408I-A Sr Gen10 Controller

    Box 3 to Smart Array P408i-a SR Gen10 controller Box 3 to type-p controller Cabling...

  • Page 118: 8-Bay Sff Power Cable (Default)

    8-bay SFF power cable (default) 16-bay/24-bay SFF power cable Color Description Pink P2 power cable to SFF box 1 Blue P3 power cable to SFF box 2 Gold P4 power cable to SFF box 3 Orange P5 power cable to optical drive Cable routing: 12G SAS expander •...
  • Page 119 Color Description Blue Smart Array P408i-a SR Gen10 controller port 1 to 12G SAS expander port 1 Orange Smart Array P408i-a SR Gen10 controller port 2 to 12G SAS expander port 2 • Type-p controller to SAS expander Color Description Orange Type-p controller port 1 to 12G SAS expander port 1 Blue...

  • Page 120: Cable Routing: Rear 2-Bay Sff Drive

    Color Description Orange and Blue 12G SAS expander ports 3 & 4 to SFF box 1 ports 1 & 2 Gold and Pink 12G SAS expander ports 5 & 6 to SFF box 2 ports 1 & 2 Green and Black 12G SAS expander ports 7 &...

  • Page 121: Mini-Sas Cable To Type-P Controller

    Mini-SAS cable to type-p controller You can connect the rear 2-bay SFF drive to any port of a Smart Array controller. Cabling...

  • Page 122: Mini-Sas Cable To Sas Expander

    Mini-SAS cable to SAS expander SATA cable to system board Color Description Orange Rear 2-bay SFF drive backplane to SATA port 5 Blue Rear 2-bay SFF drive backplane to SATA port 4 Gold Rear 2-bay SFF drive backplane to SATA management port Cabling...

  • Page 123: Rear 2-Bay Sff Power Cable

    Rear 2-bay SFF power cable Cable routing: M.2 SSD • M.2 SSD enablement board installed in primary riser • M.2 SSD enablement board installed in secondary riser Cabling...

  • Page 124: Cable Routing: Energy Pack

    Cable routing: Energy pack Cable routing: Optical drive • Cabling...
  • Page 125 Color Description Orange Optical drive signal cable to SATA port 5 Blue Optical drive power cable Gold Optical drive power cable • Color Description Orange Optical drive signal cable to SATA port 5 Blue Optical drive power cable Gold Optical drive power cable Cabling...

  • Page 126: Cable Routing: Fan

    Cable routing: Fan Cable routing: Front I/O • Color Description Orange Front I/O cable Blue USB cable Gold Thermal sensor cable • Cabling...

  • Page 127: Cable Routing: Usb 3.0

    Color Description Orange Front I/O cable Blue USB cable Gold Thermal sensor cable Cable routing: USB 3.0 Cabling...

  • Page 128: Cable Routing: Serial Port

    Cable routing: Serial port Cable routing: iLO Service Port • • Cabling...

  • Page 129: Cable Routing: Chassis Intrusion Detection Switch

    Cable routing: Chassis intrusion detection switch Cable routing: Controller backup power cable • Primary riser cage Cabling...
  • Page 130 • Secondary riser cage ◦ Slot 4 ◦ Slot 5 or 6 Cabling...
  • Page 131 Cabling...

  • Page 132: Software And Configuration Utilities

    Product QuickSpecs For more information about product features, specifications, options, configurations, and compatibility, see the product QuickSpecs on the Hewlett Packard Enterprise website (https://www.hpe.com/info/qs). Active Health System Viewer Active Health System Viewer (AHSV) is an online tool used to read, diagnose, and resolve server issues quickly using AHS uploaded data.

  • Page 133: Hpe Ilo 5

    HPE iLO 5 iLO 5 is a remote server management processor embedded on the system boards of supported HPE servers and compute modules. iLO enables the monitoring and controlling of servers from remote locations. iLO management is a powerful tool that provides multiple ways to configure, update, monitor, and repair servers remotely.

  • Page 134: Ilo Service Port

    Any user can view information on iLO Federation pages, but a license is required for using the following features: Group virtual media, Group power control, Group power capping, Group configuration, and Group firmware update. For more information about iLO Federation, see the iLO user guide at the following website: https://www.hpe.com/ support/ilo-docs.

  • Page 135: Ilo Restful Api

    RESTful Interface Tool The RESTful Interface Tool (iLOREST) is a scripting tool that allows you to automate HPE server management tasks. It provides a set of simplified commands that take advantage of the iLO RESTful API. You can install the tool on your computer for remote use or install it locally on a server with a Windows or Linux Operating System.

  • Page 136: Intelligent Provisioning Operation

    To access Intelligent Provisioning: • Press F10 from the POST screen and enter either Intelligent Provisioning or HPE Rapid Setup Software. From the iLO web interface using Always On. Always On allows you to access Intelligent Provisioning without •...

  • Page 137: Management Security

    OS Support Matrix on the Hewlett Packard Enterprise website (https://www.hpe.com/info/ossupport). Management security HPE ProLiant Gen10, HPE ProLiant Gen10 Plus, and HPE Apollo servers are built with some of the industry's most advanced security capabilities, out of the box, with a foundation of secure embedded management applications and firmware.

  • Page 138: Selecting The Boot Mode

    • An Embedded UEFI Shell that provides a preboot environment for running scripts and tools. • Boot support for option cards that only support a UEFI option ROM. Selecting the boot mode This server provides two Boot Mode configurations: UEFI Mode and Legacy BIOS Mode. Certain boot options require that you select a specific boot mode.

  • Page 139: Launching The Embedded Uefi Shell

    HPE Smart Storage Administrator HPE SSA is the main tool for configuring arrays on HPE Smart Array SR controllers. It exists in three interface formats: the HPE SSA GUI, the HPE SSA CLI, and HPE SSA Scripting. All formats provide support for configuration tasks. Some of the advanced tasks are available in only one format.

  • Page 140: Hpe Infosight For Servers

    For more information, see HPE Smart Array SR Gen10 Configuration Guide at the Hewlett Packard Enterprise website. HPE InfoSight for servers The HPE InfoSight portal is a secure web interface hosted by HPE that allows you to monitor supported devices through a graphical interface.

  • Page 141: Safety And Security Benefits

    The SPP is also available for download from the SPP download page at https://www.hpe.com/servers/spp/download. Smart Update Manager SUM is an innovative tool for maintaining and updating the firmware, drivers, and system software of HPE ProLiant, HPE BladeSystem, HPE Synergy, and HPE Apollo servers, infrastructure, and associated options.
  • Page 142 Integrated Smart Update Tools (SUT) is the smart update solution for performing online firmware and driver updates. SUT is used with iLO 4, iLO 5, and with update solutions (management appliances such as iLO Amplifier Pack or HPE OneView and Smart Update Manager (SUM) to stage, install, and activate firmware and driver updates.

  • Page 143: Drivers

    Procedure 1. Access the System ROM Flash Binary component for your server from the Hewlett Packard Enterprise Support Center (https://www.hpe.com/support/hpesc). 2. Copy the binary file to a USB media or iLO virtual media. 3. Attach the media to the server.

  • Page 144: Software And Firmware

    For information about specific versions of a supported operating system, refer to the operating system support matrix. HPE Pointnext Portfolio HPE Pointnext delivers confidence, reduces risk, and helps customers realize agility and stability. Hewlett Packard Enterprise helps customers succeed through Hybrid IT by simplifying and enriching the on-premise experience, informed by public cloud qualities and attributes.

  • Page 145: System Battery Replacement

    System battery replacement System battery information The server contains an internal lithium manganese dioxide, a vanadium pentoxide, or an alkaline battery that provides power to the real-time clock. If this battery is not properly handled, a risk of the fire and burns exists. To reduce the risk of personal injury: •...
  • Page 146 To replace the component, reverse the removal procedure. 10. Properly dispose of the old battery. For more information about battery replacement or proper disposal, contact an authorized reseller or an authorized service provider. System battery replacement...

  • Page 147: Troubleshooting

    Error Message Guide for HPE ProLiant Gen10 servers and HPE Synergy provides a list of error messages and information to assist with interpreting and resolving error messages. • Error Message Guide for HPE ProLiant Gen10 Plus servers and HPE Synergy provides a list of error messages and information to assist with interpreting and resolving error messages. •...

  • Page 148: Specifications

    Specifications Environmental specifications Specification Value Temperature range — Operating 10°C to 35°C (50°F to 95°F) Nonoperating -30°C to 60°C (-22°F to 140°F) Relative humidity (noncondensing) — Operating Minimum to be the higher (more moisture) of -12°C (10.4°F) dew point or 8% relative humidity Maximum to be 24°C (75.2°F) dew point or 90% relative humidity Nonoperating...

  • Page 149: Power Supply Specifications

    HPE 800W Flex Slot Universal Hot-plug Low Halogen Power Supply • • HPE 800W Flex Slot -48VDC Hot Plug Low Halogen Power Supply HPE 1600 W Flex Slot Platinum Hot-plug Low Halogen Power Supply • For detailed power supply specifications, see the QuickSpecs on the Hewlett Packard Enterprise website.

  • Page 150: Hpe 800W Flex Slot Platinum Hot-Plug Low Halogen Power Supply

    500 W at 100 VAC to 127 VAC input 500 W at 100 VAC to 240 VAC input 500 W at 240 VDC input for China only HPE 800W Flex Slot Platinum Hot-plug Low Halogen Power Supply Specification Value Input requirements —...

  • Page 151: Hpe 800W Flex Slot Titanium Hot-Plug Low Halogen Power Supply

    800 W at 100 VAC to 127 VAC input 800 W at 100 VAC to 240 VAC input 800 W at 240 VDC input for China only HPE 800W Flex Slot Titanium Hot-plug Low Halogen Power Supply Specification Value Input requirements —...

  • Page 152: Hpe 800W Flex Slot Universal Hot-Plug Low Halogen Power Supply

    Rated steady-state power 800 W at 200 VAC to 277 VAC input Maximum peak power 800 W at 200 VAC to 277 VAC input HPE 800W Flex Slot -48VDC Hot Plug Low Halogen Power Supply Specification Value Input requirements Rated input voltage...
  • Page 153 Specification Value Rated input power (W) 874 W at -40 VDC input 865 W at -48 VDC input, nominal input 854 W at -72 VDC input Rated input power (BTUs per hour) 2,983 at -40 VDC input 2,951 at -48 VDC input, nominal input 2,912 at -72 VDC input Power supply output Rated steady-state power (W)

  • Page 154: Hpe 1600 W Flex Slot Platinum Hot-Plug Low Halogen Power Supply

    HPE 1600 W Flex Slot Platinum Hot-plug Low Halogen Power Supply Specification Value Input requirements — Rated input voltage 200 VAC to 240 VAC 240 VDC for China only Rated input frequency 50 Hz to 60 Hz Rated input current 8.7 A at 200 VAC...

  • Page 155: Websites

    Storage white papers and analyst reports https://www.hpe.com/storage/whitepapers For additional websites, see Support and other resources. Product websites HPE ProLiant DL180 Gen10 Server product page https://www.hpe.com/servers/dl180-gen10 HPE ProLiant DL180 Gen10 Server support page https://www.hpe.com/support/dl180gen10 HPE ProLiant DL180 Gen10 Server user documents https://www.hpe.com/info/DL180Gen10-docs...

  • Page 156: Support And Other Resources

    • To download product updates: Hewlett Packard Enterprise Support Center https://www.hpe.com/support/hpesc Hewlett Packard Enterprise Support Center: Software downloads https://www.hpe.com/support/downloads My HPE Software Center https://www.hpe.com/software/hpesoftwarecenter • To subscribe to eNewsletters and alerts: https://www.hpe.com/support/e-updates • To view and update your entitlements, and to link your contracts and warranties with your profile, go to the Hewlett Packard Enterprise Support Center More Information on Access to Support Materials page: https://www.hpe.com/support/AccessToSupportMaterials...

  • Page 157: Remote Support

    IMPORTANT: Access to some updates might require product entitlement when accessed through the Hewlett Packard Enterprise Support Center. You must have an HPE Passport set up with relevant entitlements. Remote support Remote support is available with supported devices as part of your warranty or contractual support agreement. It provides intelligent event diagnosis, and automatic, secure submission of hardware event notifications to Hewlett Packard Enterprise, which will initiate a fast and accurate resolution based on your product's service level.

  • Page 158: Documentation Feedback

    Hewlett Packard Enterprise is committed to providing documentation that meets your needs. To help us improve the documentation, send any errors, suggestions, or comments to Documentation Feedback (docsfeedback@hpe.com). When submitting your feedback, include the document title, part number, edition, and publication date located on the front cover of the document.
