OVERVIEW

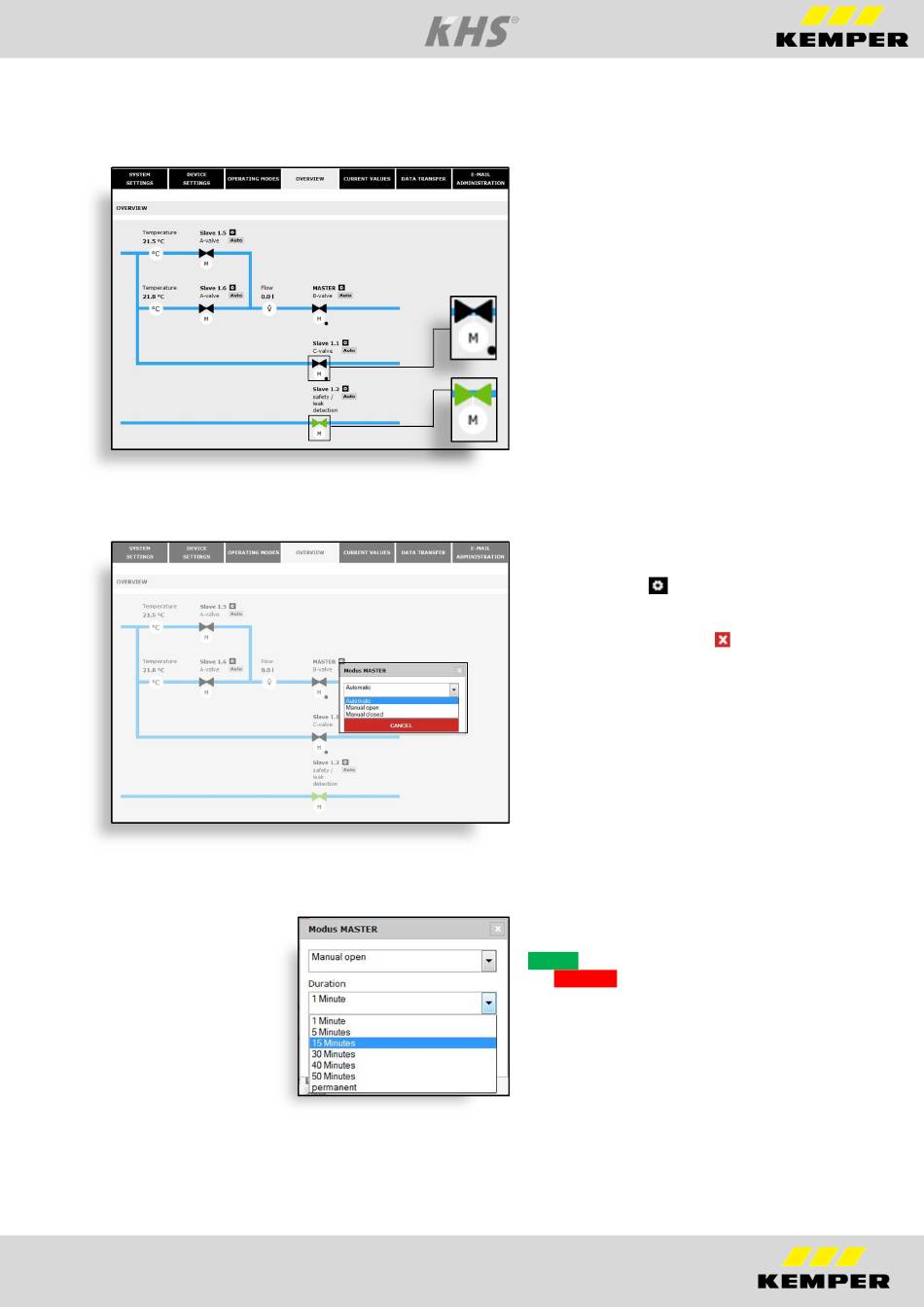

In the "OVERVIEW" menu interface, the configured valves and the linked sensors are shown in an
overview. Pure measurement valves are not listed in the "OVERVIEW".
Manual KHS Mini System Control
Overview
The overview merely shows the current
states. It is not possible to make any
configurations in this interface. Click on
the component to open the input box of
the "SYSTEM SETTINGS" menu interface
of the selected component.
If the valve is marked in black that means
it is closed. If the valve is shown in grey, it
is open. If the valve is red, there is a fault.
Manual mode / Automatic
The actuators can be manually controlled.
Click the button
window. Use the selection window to
choose between three settings in a
dropdown list. The button
fault in the system.
Automatic = Standard setting
Manual OPEN = Valve opens
Manual CLOSE = Valve closes
Group OPEN = For the A-valve, an
Group CLOSED = Both close again
After selecting a setting, the duration of
the setting can be defined. Use the
APPLY button to apply the setting. Press
the CANCEL button to discard the action.
