8.1.4.6 Switching programs
With the KHS Mini System Control -MASTER 2.0- it is possible to switch between two flushing
programs or to block one through an external switch. The programs can also be activated or
deactivated in the "Switch program" submenu. The "External input" or "External switch" can be
assigned to a program switch in this submenu. The functions are described in Illustration 8.43.
Note:
The two mentioned flushing programs can be switched using an external manual
switch. The electrical connection is shown in Chapter 6.2.2.5.
Progr. Switchover

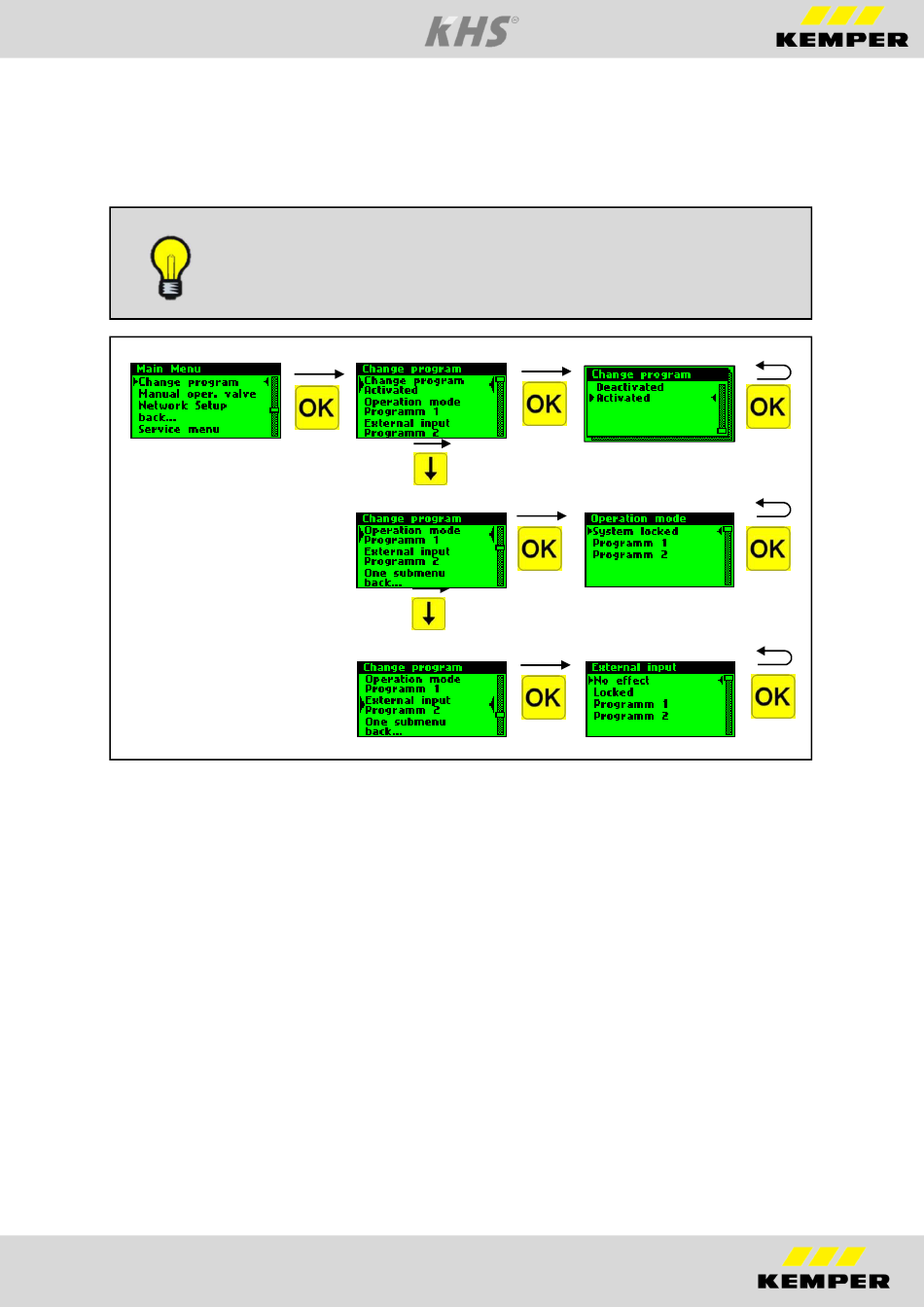

Ill. 8.43 Overview of the "Switch program" submenu
Manual KHS Mini System Control
Progr. switchover deactivate
Block system/select program
Select external input action
38
