Connection of KHS-CONTROL-PLUS cable-plug connector
1. Cut off top of cap

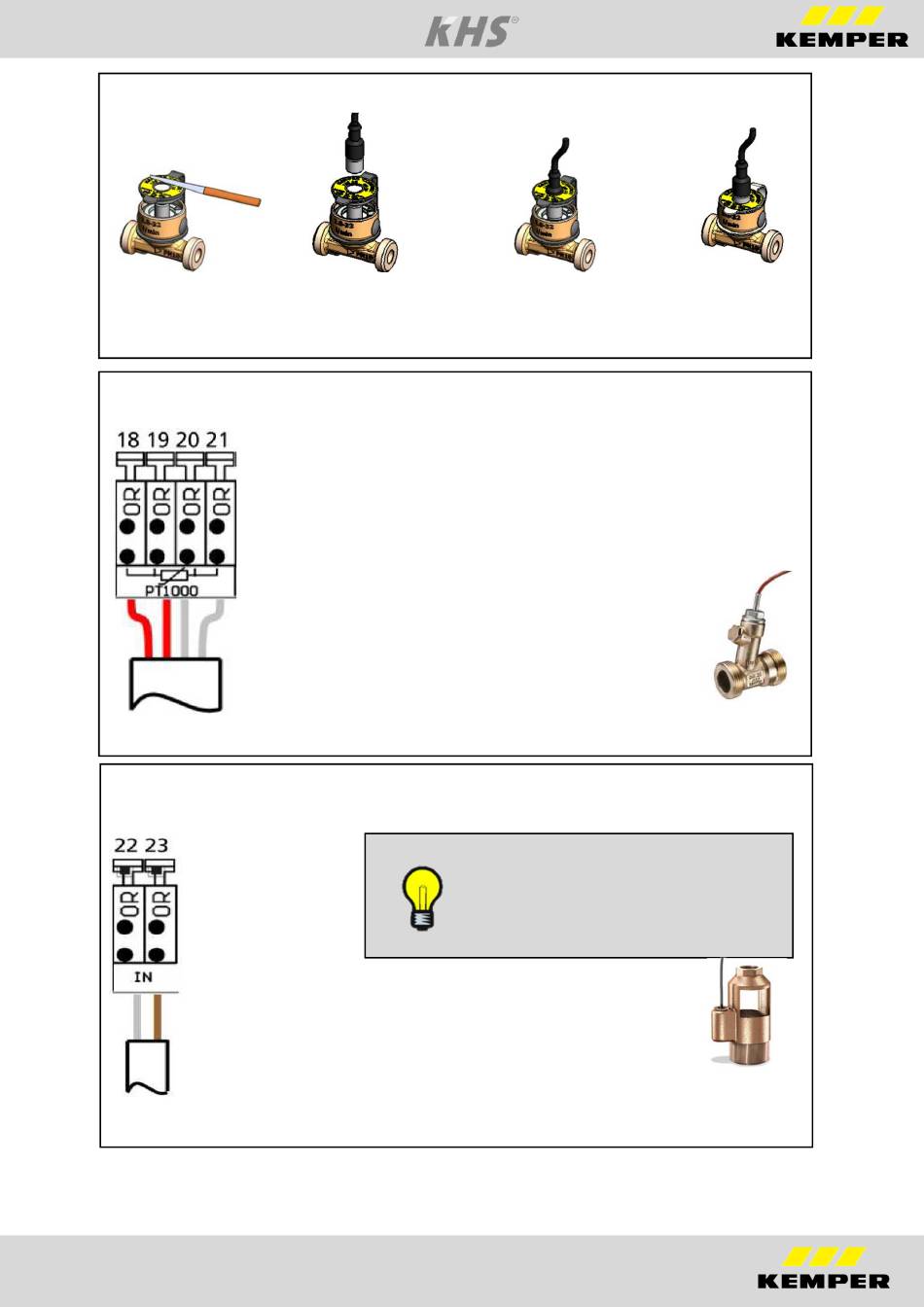

Ill. 6.12: Schematic diagram of the preparation of the sensor top to make cable-plug connection of
the KHS-CONTROL-PLUS

6.2.2.7 Connection of KHS Temperature sensor Pt 1000 (Figure 628 0G)

Ill. 6.13: Schematic diagram of connection of KHS Temperature Measurement Valve Pt1000

6.2.2.8 Connection of KHS drain with overflow monitor (Figure 688 00)

Ill. 6.14: Schematic diagram of connection of the KHS drain with overflow monitor
Manual KHS Mini System Control
2. Route cable through
RD = red = 18
RD = red = 19
W = white = 20
W = white = 21
Note:
In the as delivered state, a bridge strand is
plugged between Terminals 22 and 23. It
must be removed before connecting the
KHS drain.
W = white = 22
BN = brown = 23
13
3. Screw cable to sensor 4. Put on the cap
