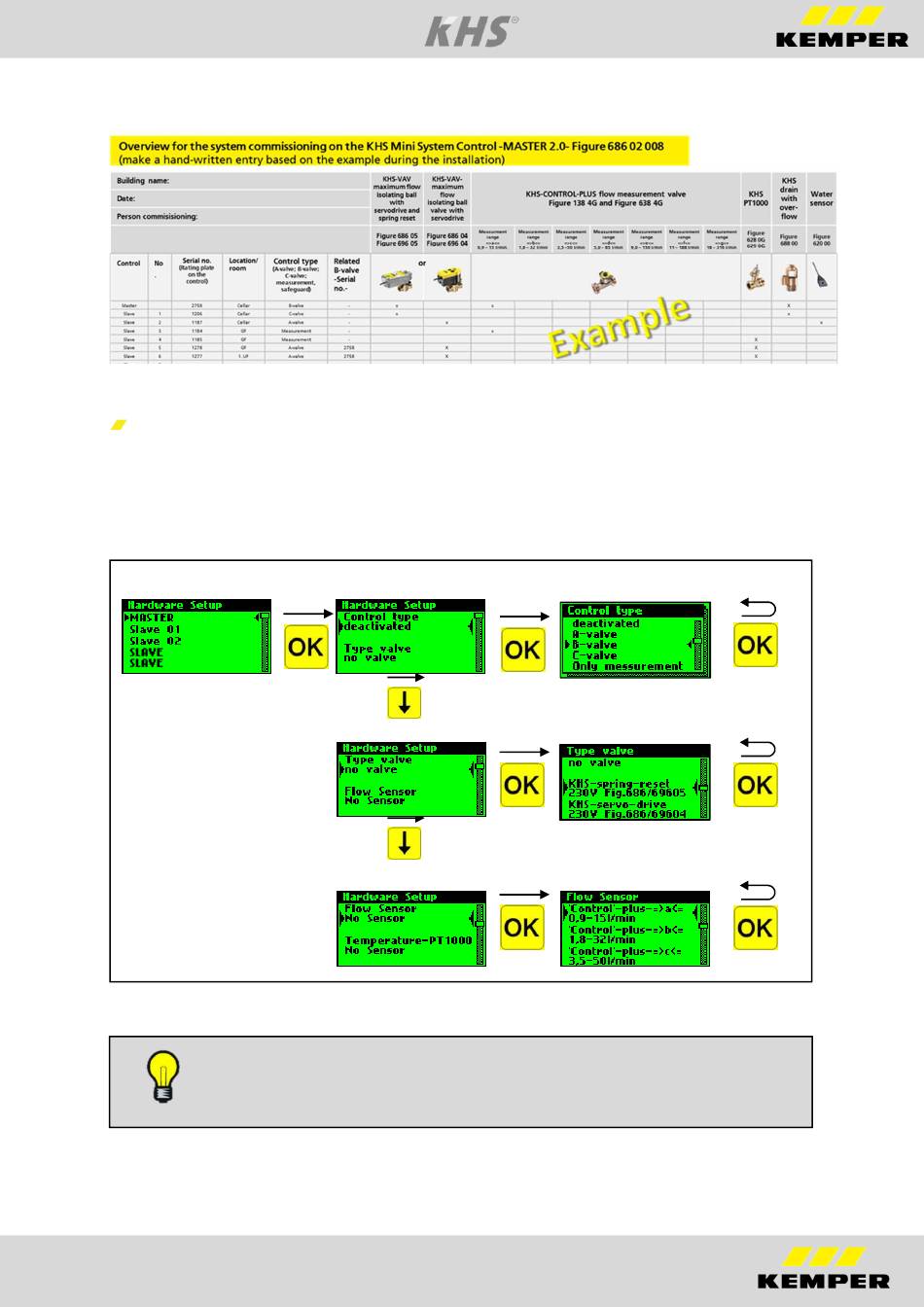

The following configuration steps are discussed based on the sample project from Illustration 8.1
(Page 17). For an overview of the system commissioning, Illustration 8.25 is presented.
Ill. 8.25 Overview for the system commissioning of the sample project
Configuration -MASTER- (B-valve)
In the sample project being used, the KHS Mini System Control -MASTER 2.0- should trigger a B-
valve in the form of a VAV-maximum flow isolating ball valve with spring reset servo-drive.
Furthermore, a KHS-CONTROL-PLUS flow measurement valve is to be evaluated. Additional settings
for this operating mode are explained in Chapter 8.1.4.4. Illustration 8.26 shows the configuration of a
B-valve.
Device selection
03 03 03 03
04 04 04 04
Ill. 8.26 Configuration of B-valve
Note:
A B-valve is always assigned to an A-valve. The A-valve assignment is shown
on page 30. For information on the valve technology, please see Chapter
13.1.
