Configuration of -SLAVE- 1.1 (C-valve)
In the sample project being used, the KHS Mini System Control -SLAVE 1.1- should trigger a C-valve
in the form of a VAV-maximum flow isolating ball valve with spring reset servo-drive. The KHS Mini
System Control -SLAVE- 1.1 is to be time-controlled. Additional settings for this operating mode are

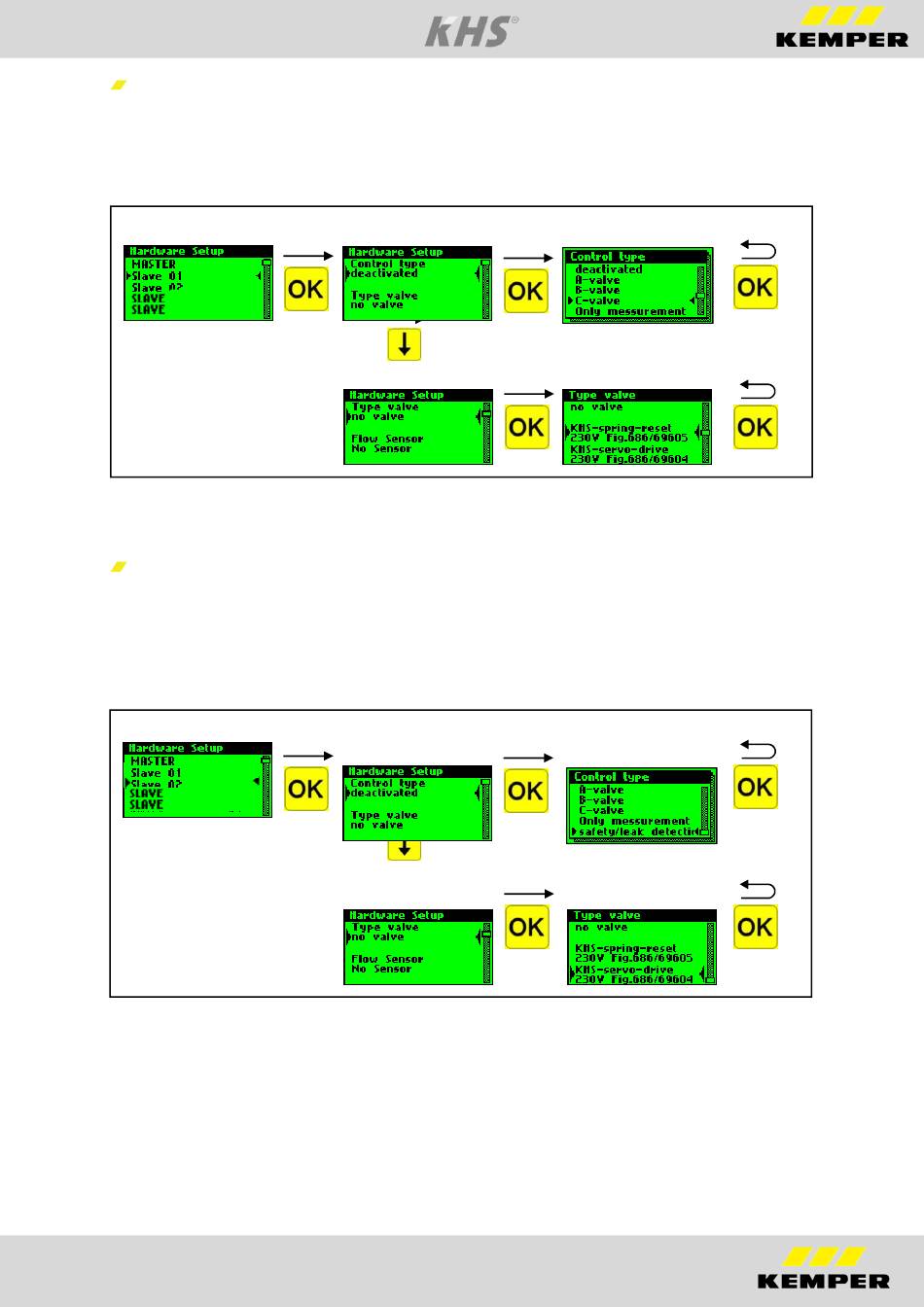

explained in Chapter 8.1.4.4. Illustration 8.27 shows the configuration of a C-valve.
Device selection
03 03
03 03
04 04 04 04
Ill. 8.27 Configuration of C-valve
Configuration of -SLAVE- 1.2 (safeguard)
The KHS Mini System Control -SLAVE- 1.2 in this sample project should act as a leakage safeguard.
The KHS Mini System Control -SLAVE- 1.2 should trigger a KHS-VAV-Maximum flow isolating ball
valves with servo drive as a safety valve. Additional settings for this operating mode are explained in
Chapter 8.1.4.4. Illustration 8.28 shows the configuration of a safety device.
Device selection
03 03 03 03
04 04
04 04
Ill. 8.28 Configuration of a safeguard
Manual KHS Mini System Control
Control type
Valve
Control type
Valve
