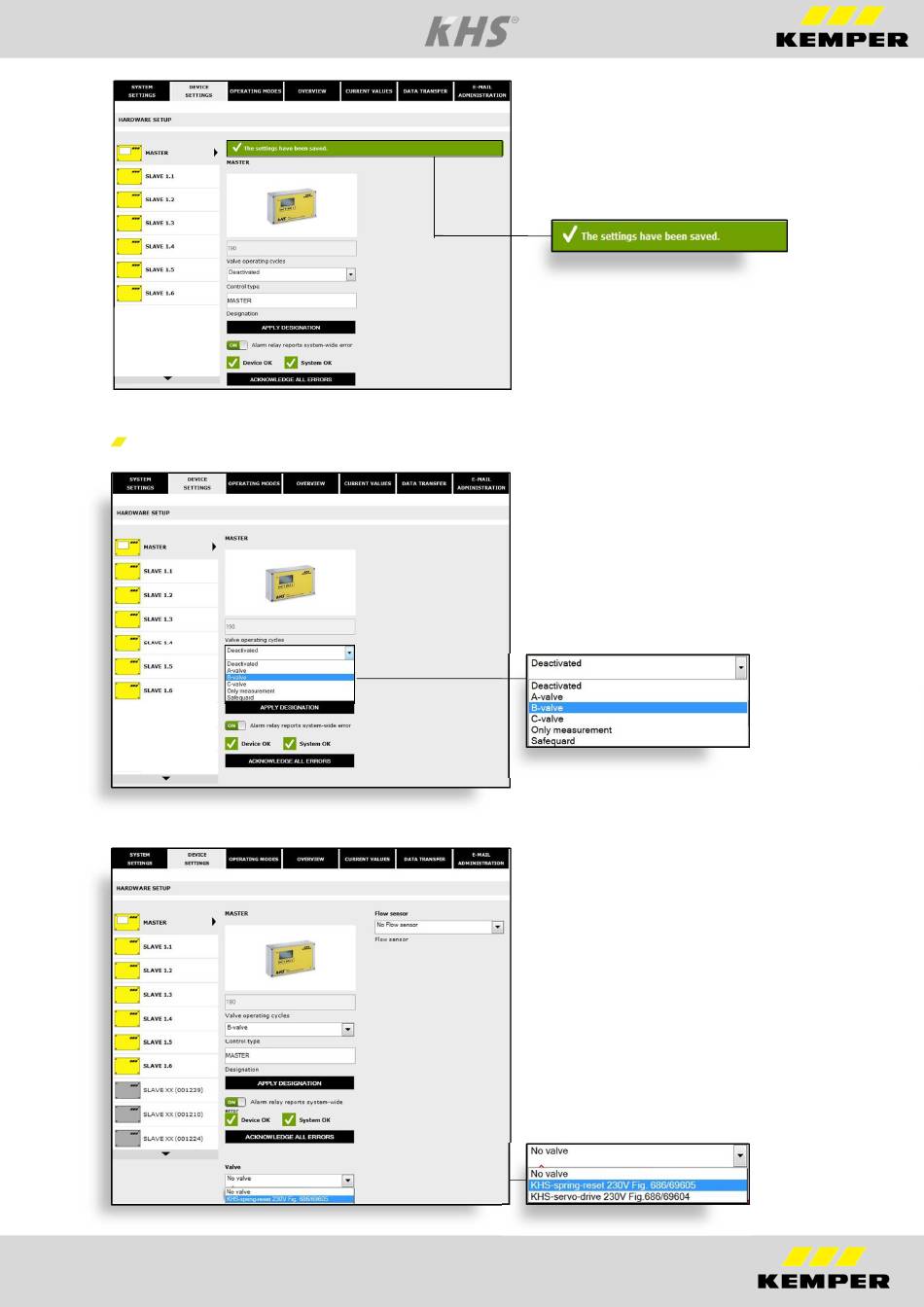

Configuration MASTER (B-valve)
Manual KHS Mini System Control
If the name is applied, the change is
automatically saved. After adding all KHS
Mini Controls they can be configured.
Select control type
Choose the available control types that
can be applied to the selected KHS Mini
System Control from a dropdown list. The
KHS Mini System Control -MASTER 2.0-
is intended to control a B-valve in the
stated sample project.
Select valve
The possible valves are selected with a
dropdown list. In the sample project
being used, the KHS Mini System Control
-MASTER 2.0- should trigger a VAV-
maximum flow isolating ball valve with
spring reset servo-drive.
50
