Connection of KHS-VAV Maximum flow isolating ball valve with spring reset servo-drive (Figure
686 01)

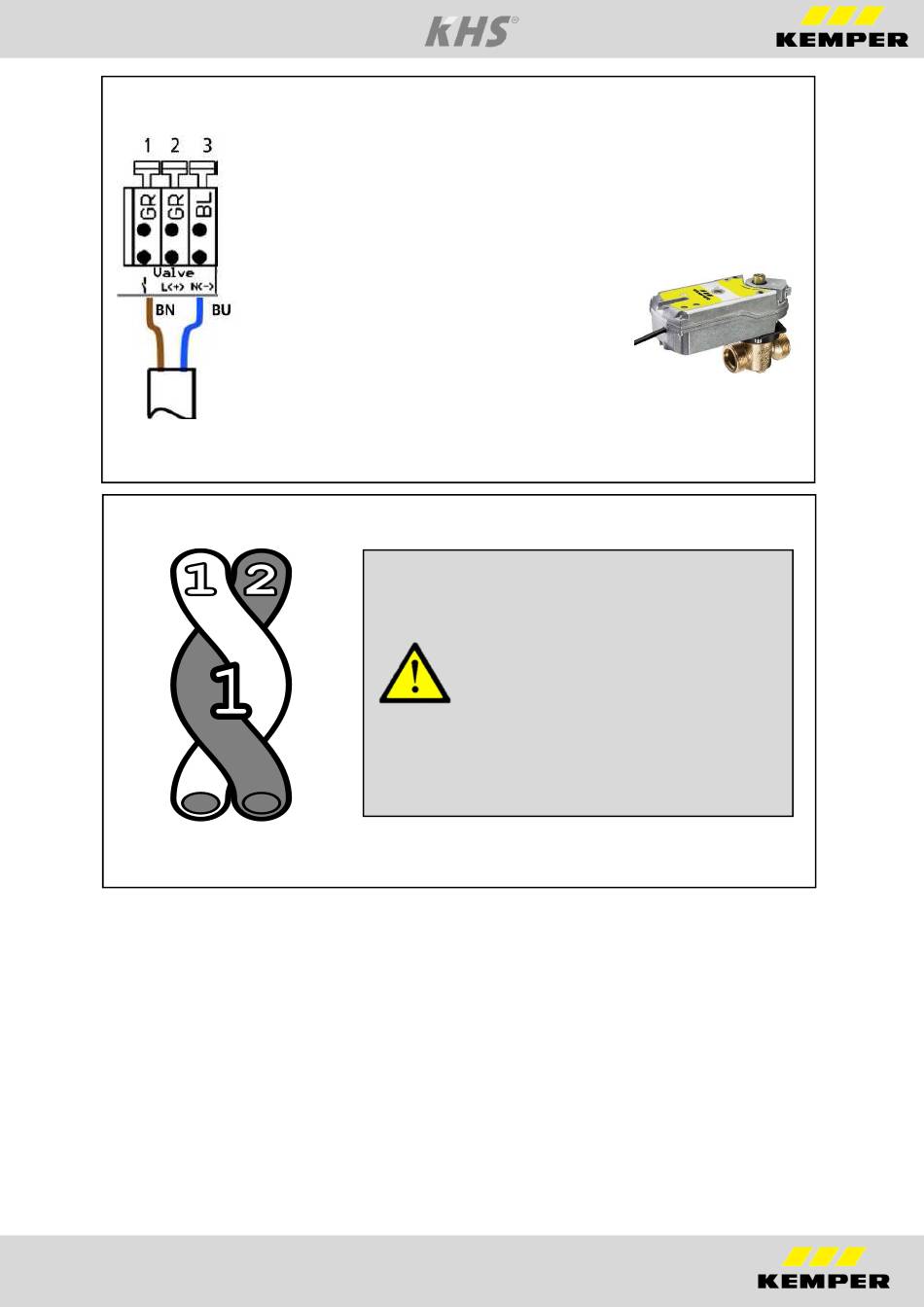

Ill. 6.5: Schematic representation of the connection of the KHS-VAV Maximum flow isolating ball
valve with spring reset servo-drive

6.2.2.4 CAN bus connection

Ill. 6.6: Schematic diagram of the twisted pair
Manual KHS Mini System Control
BN = brown = 1
BU = blue = 3
Attention:
Follow the notices and instructions in Chapter
5. The twisted pair of the CAN bus cable
should be separated and the shielding
removed only as far as necessary to assign
the maximum terminals (recommendation:
max. 4cm).
The shielding must be properly bundled with a
heat shrink tube or insulating tape to prevent
contact of the individual wires of the shielding
to the other potentials.
