Configuration of -SLAVE- 1.3 (flow measurement)
The KHS Mini System Control -SLAVE- 1.3 in this sample project should act as a measurement
SLAVE. The flow rate is to be measured with a KHS-CONTROL-PLUS flow measurement valve.

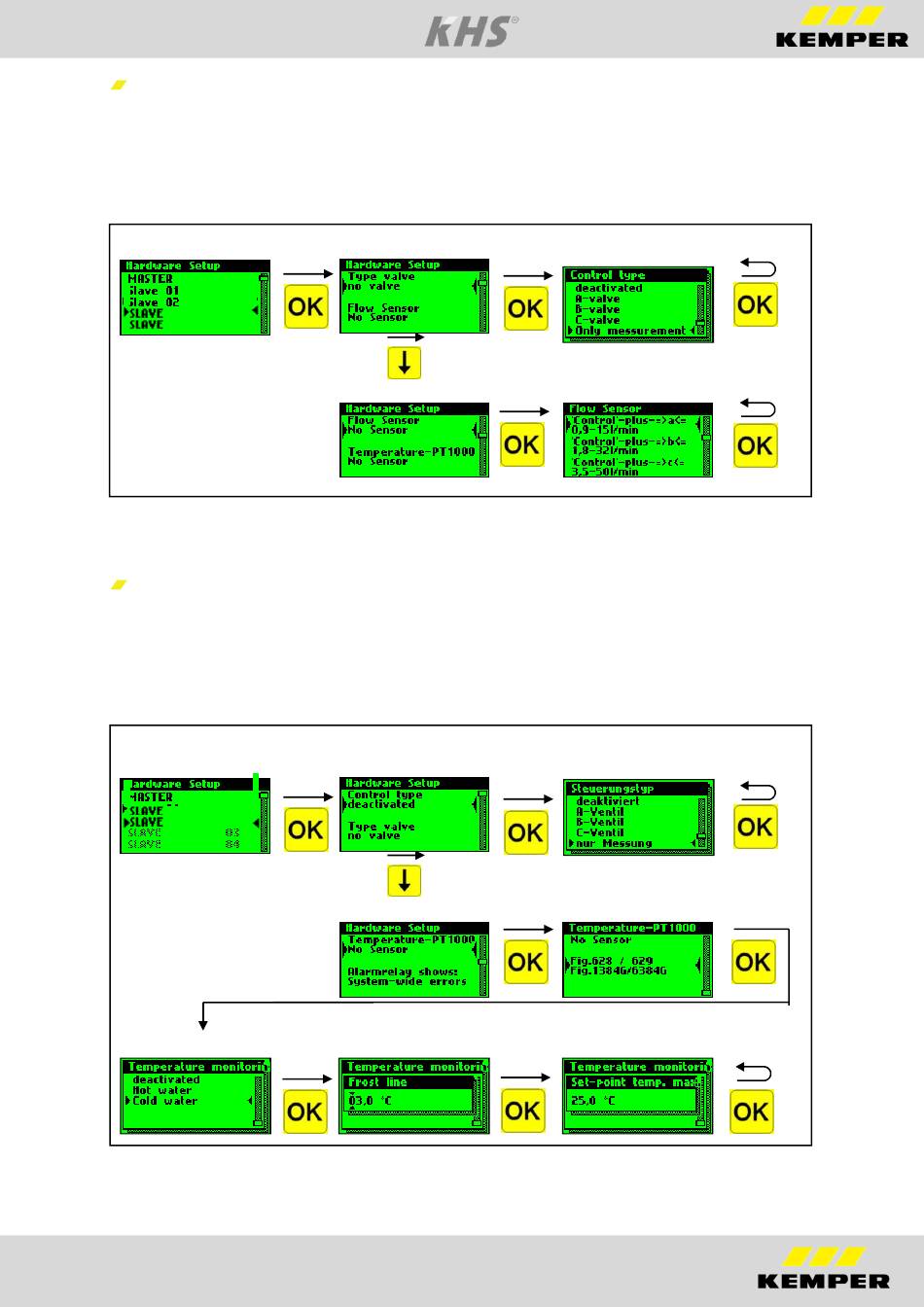

Additional settings for this operating mode are explained in Chapter 8.1.4.4. Illustration 8.29 shows the
configuration of a flow rate measurement device.
Device selection
03 03
03 03
04 04 04 04
Ill. 8.29 Configuration of a flow measurement
Configuration of -SLAVE- 1.4 (temperature measurement)
The KHS Mini System Control -SLAVE- 1.4 in this sample project should act as a measurement
SLAVE. The temperature is to be measured with a Pt 1000. After selecting the sensor, configure the
frost protection limit and the target temperature. There is a cold-water line in the sample project.
Illustration 8.30 shows the configuration of a temperature measuring device.
Device selection
03 03 03 03
04 04
04 04
Medium
Ill. 8.30 Configuration of a temperature measurement
Manual KHS Mini System Control
Control type
Select sensor
Control type
Select sensor
Frost protection limit
29
Target temperature
