Kemper KHS Mini System Control Installation And Operating Instructions Manual page 71

Configuration of a SLAVE 1.5 and 1.6 (temperature flushing)
Routine time
If there is no temperature flushing within 7 days, the water exchange is guaranteed through the
"Routine time" operating mode. For the "Routine time" operating mode, the starting time, the duration
and the weekdays of the water exchange can be stored for that.
Routine duration
If there is no temperature flushing within the configured interval, the water exchange is guaranteed
through the "Routine duration" operating mode. To accomplish that, the decisive interval (max. 168 h)
and the duration of the water exchange can be stored in the "Routine duration" operating mode.
Routine volume
If there is no temperature flushing within the configured interval, the water exchange is guaranteed
through the "Routine volume" operating mode. To accomplish that, the decisive interval (max. 168 h),
the volume and the maximum flushing time of the water exchange can be stored in the "Routine
volume" operating mode.
Manual KHS Mini System Control

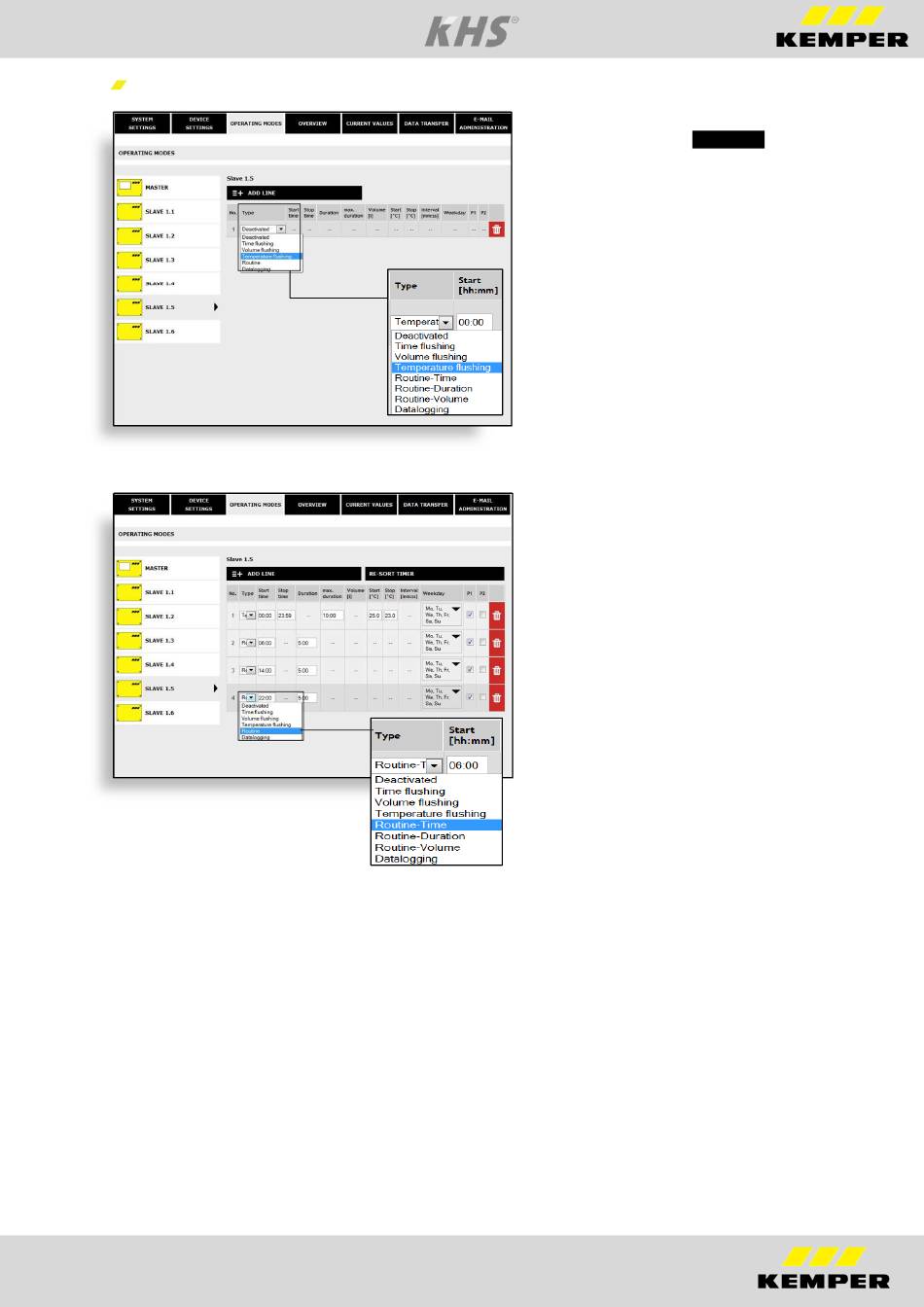

Select type (temperature flushing)
After adding a line with
the line type. The KHS Mini System
Control -SLAVE- 1.5 and 1.6 in the
sample project
temperature measurement valve. To time
control trigger the water exchange, the
"Time flushing" line type has to be
selected from a dropdown list.
The sample project is a cold-water line in
which the cold-water temperature in the
winter, for instance, could always lie
below the set starting temperature. To
prevent an impermissible stagnation,
after the configuration of the temperature
flushing, a routine flushing of the KHS
Mini Control System is automatically
always stored. The routine flushing
"Routine time" is preset for this; however
a selection can also be made between
"Routine duration" and "Routine volume"
as an alternative. Please note that only
one routine flushing can be stored with
one KHS Mini System Control.
68
ADD LINE, select
are linked to a
