Configuration of a -SLAVE- 1.3 and 1.4 (datalogging)
The KHS Mini System Control -SLAVE- 1.3 and 1.4 in this sample project is planned as a
measurement SLAVE. Please refer to the -MASTER- configuration for the settings for the
"Datalogging" line type. Illustration 8.39 shows the configuration of a "Datalogging" operating mode.
03 03 03 03
04 04
04 04

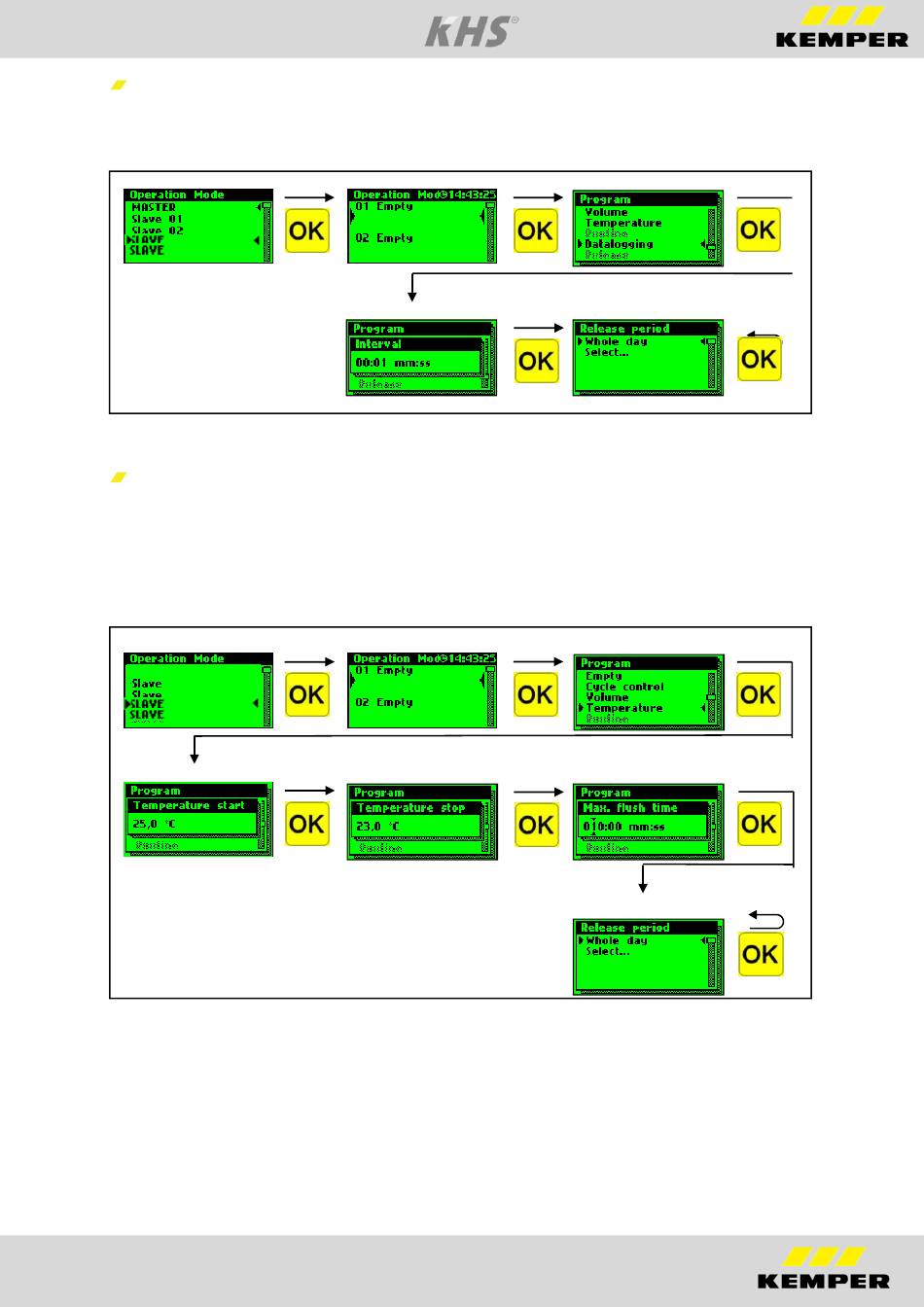

Ill. 8.39 Configuration of datalogging
Configuration of a -SLAVE- 1.5 and 1.6 (Temperature/volume flushing)
The KHS Mini System Control -SLAVE- 1.5 and 1.6 in the sample project are each linked to a
temperature measurement valve. To control the temperature-dependent water exchange, the
"Temperature" program needs to be selected. The starting and stopping temperatures and the
maximum flushing time need to be set for the "Temperature" program.
Illustration 8.40 shows the configuration of the "Temperature flushing" operating mode.
Temperature flushing
03 03 03 03
04 04
04 04
05 05
05 05
06 06 06 06
Ill. 8.40 Configuration of temperature flushing
For the "Volume" program, set the starting time, the flushing volume and the maximum flushing time.
Furthermore, the desired weekday can be selected through a dropdown list for both programs.
Illustration 8.41 shows the configuration of the "Volume flushing" operating mode.
