8.1.2

General plan

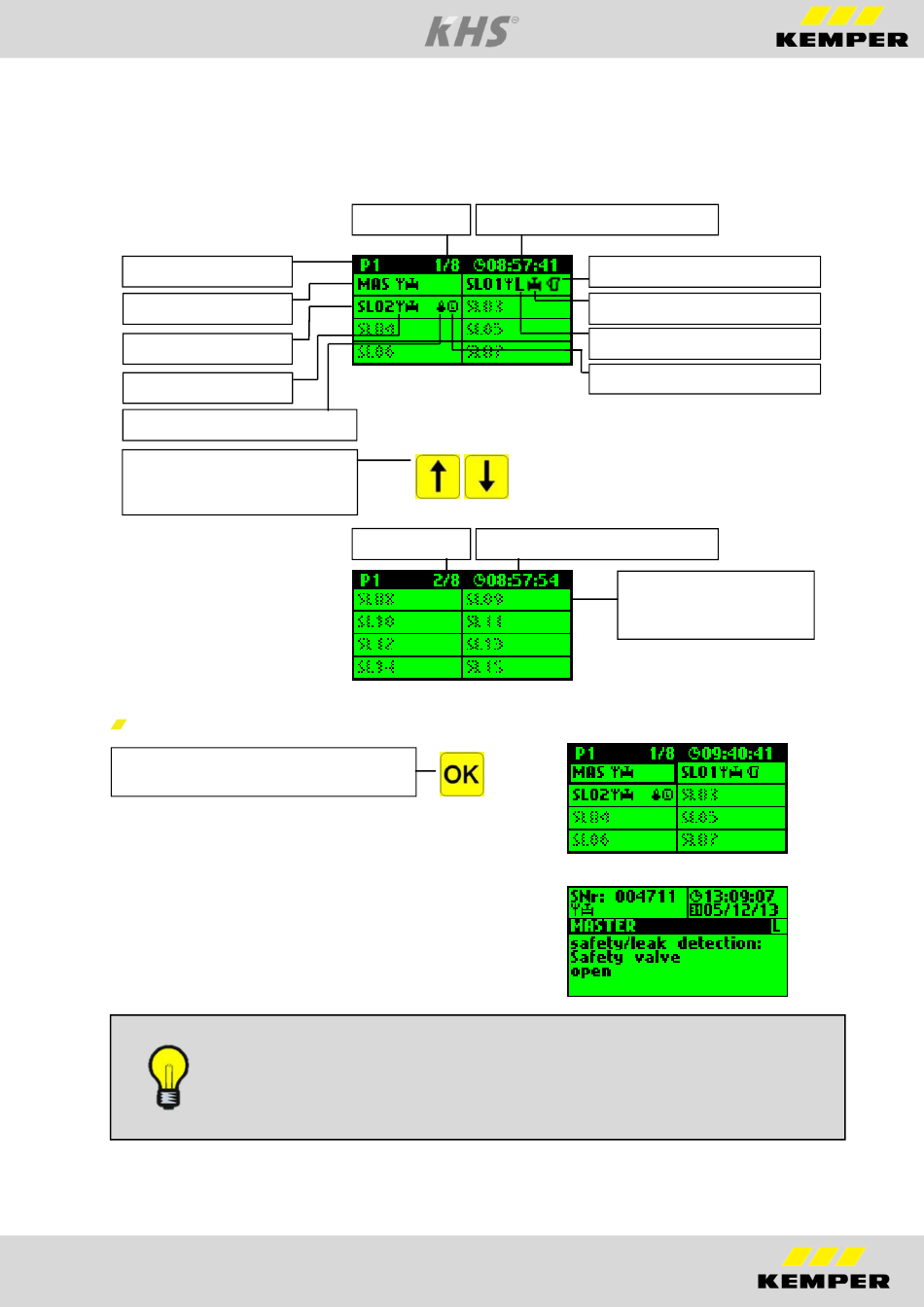

The following illustrations explain the "General plan" menu interface of the KHS Mini System Control
-MASTER 2.0-. The illustrations show the "General plan" based on an exemplary configuration of a
system with one KHS Mini System Control -MASTER 2.0- and two KHS Mini System Controls
-SLAVE-.
Program 1 activated
Master
Slave
CAN-BUS activated
Temperature sensor applied
"Scroll back/forwards"
changes between Sheets 1 to 8
Changes from "General plan" into "Detailed overview"
1x "OK" Selects control (frame*)
2x "OK" Changes into detailed
*: A frame appears around the entry of the first
controller (see Ill 8.4 upper left) on the selected sheet (1
to 8). Pressing the OK button again opens the "Detailed
overview" (see Ill. 8.5) of the selected control.
Optionally, press the ↑ or ↓ button to select another
active controller. It is indicated again through a flashing
frame. If you now press the OK button, the detailed
overview of another controller appears.
Legend symbols
Water exchange activated:
Manual KHS Mini System Control
Sheet 1 of 8 Time (changes with date)
Ill. 8.2 General plan 1/8
Sheet 2 of 8 Time (changes with date)
Ill. 8.3 General plan 2/8
Valve symbol is framed
Time control
Volume control
Temperature control
19
Volume flow sensor applied
Flushing valve applied
"L" Leakage
Time control activated
Empty slave slots (up to
62 system controls -
SLAVE- possible)
Ill. 8.4 Controller selection
Ill. 8.5 Detailed overview
-> Time symbol flashes
-> Volume symbol flashes
-> Temperature symbol flashes
