Configuration of a -SLAVE- 1.5 and 1.6 (A-valve)
The KHS Mini System Control -SLAVE- 1.5 and 1.6 in this sample project should trigger one each A-
valve and should be assigned to the B-valve of the KHS Mini System Control -MASTER 2.0-. The A-
valve should be a KHS-VAV Maximum flow isolating ball valve with servo drive. Both system controls
are temperature controlled through a KHS temperature sensor Pt 1000. Additional settings for this
operating mode are explained in Chapter 8.1.4.4. Illustration 8.31 shows the configuration of an A-
valve.
Device selection
03 03 03 03
04 04
04 04
05 05 05 05
06 06 06 06
Medium

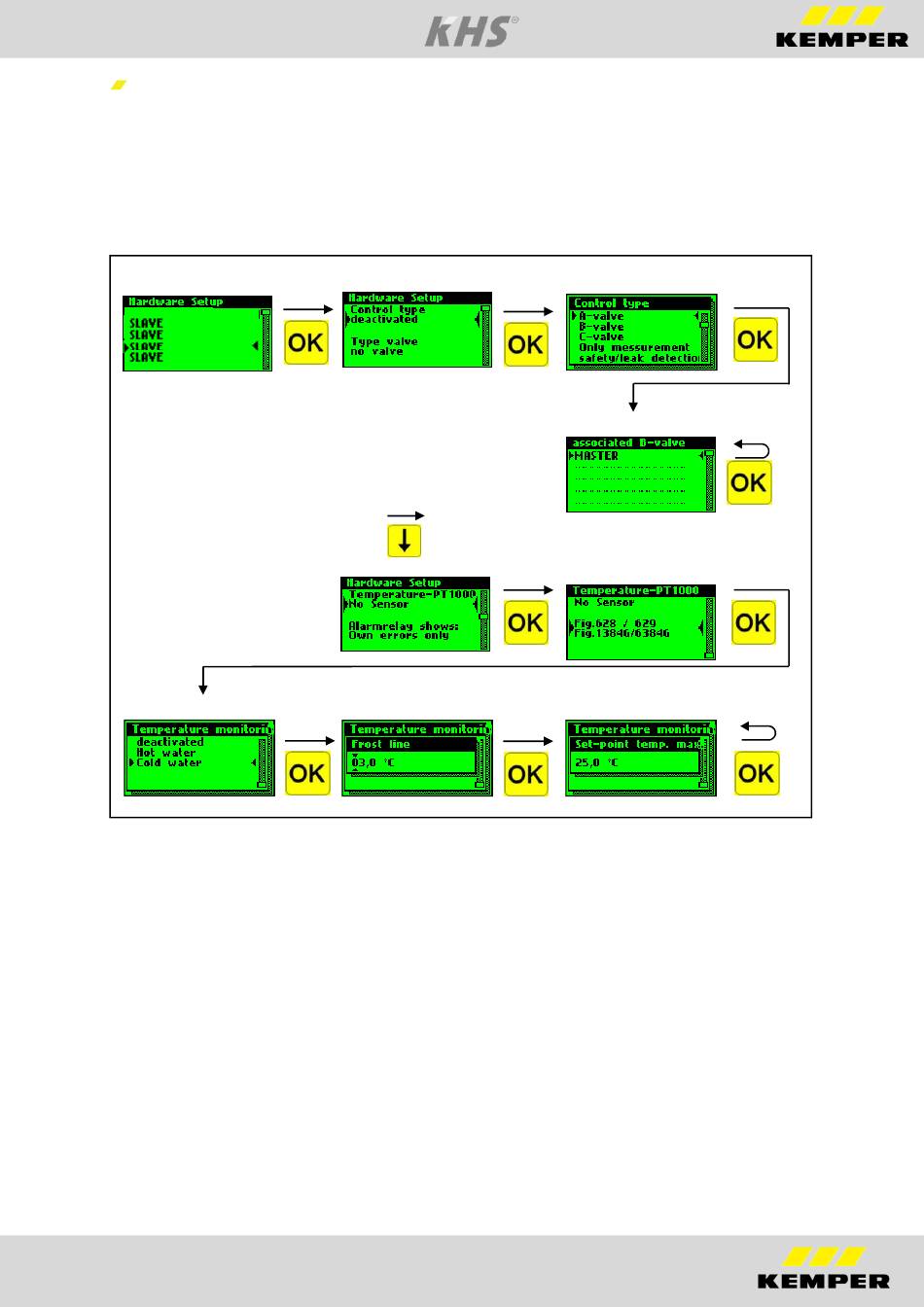

Ill. 8.31 Configuration of A-valve
Manual KHS Mini System Control
Control type
Select sensor
Frost protection limit
30
B-valve
Set point temperature
