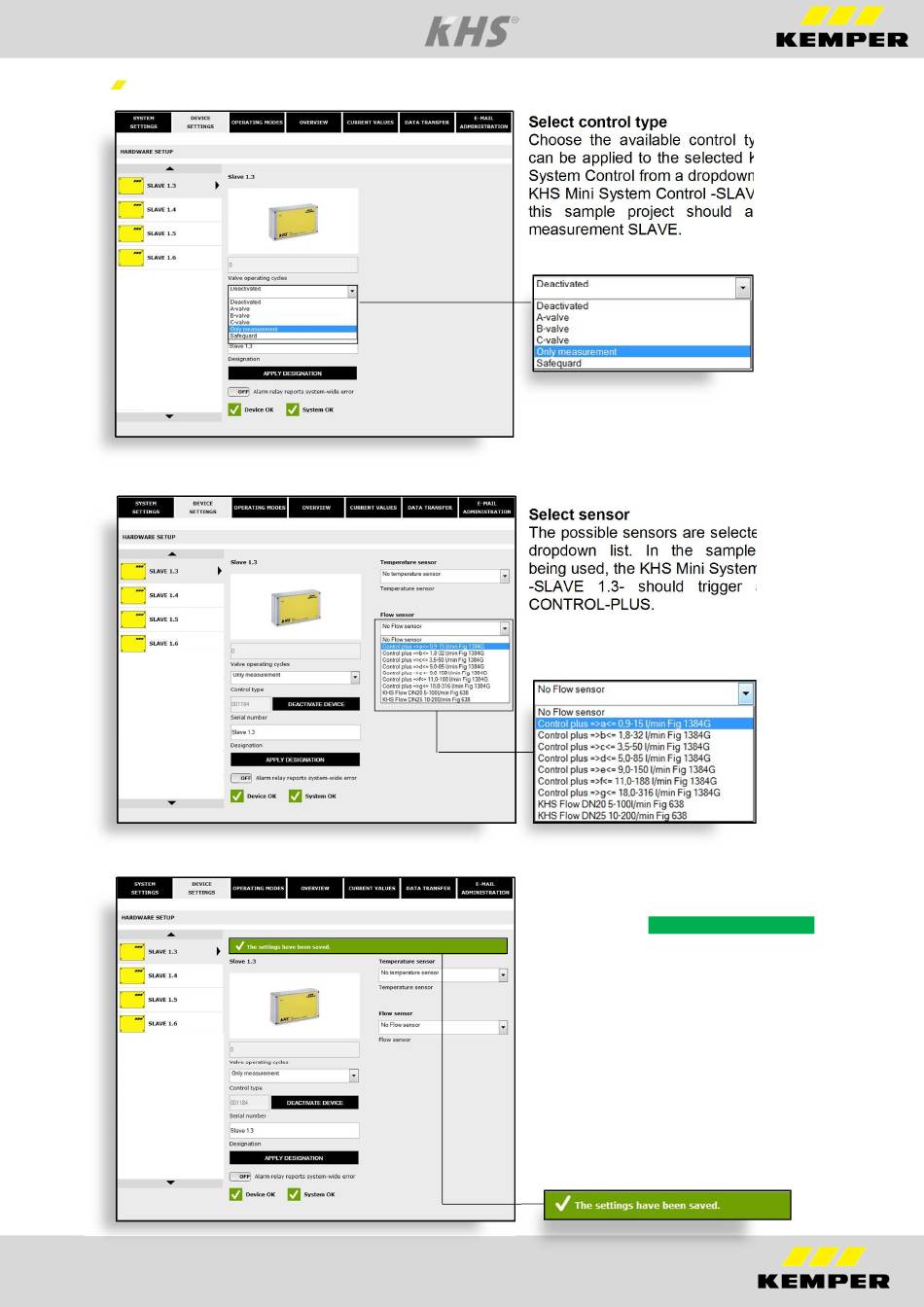

Configuration of SLAVE 1.3 (measurement)
Manual KHS Mini System Control
Select control type
Choose the available control types that
can be applied to the selected KHS Mini
System Control from a dropdown list. The
KHS Mini System Control -SLAVE- 1.3 in
this sample project should act as a
measurement SLAVE.
Select sensor
The possible sensors are selected with a
dropdown list. In the sample project
being used, the KHS Mini System Control
-SLAVE 1.3- should trigger a KHS-
CONTROL-PLUS.
Save settings
To effect the new parameters of the input
box, click the
button to save the settings.
55
WRITE IN CONTROL
