Detailed illustration of the terminals for cable entry

Note:
The following illustrations apply to the KHS Mini System Control -MASTER 2.0-
and the KHS Mini System Control -SLAVE-. Please note the preceding warning
notices:

6.2.2.1 Power supply connection

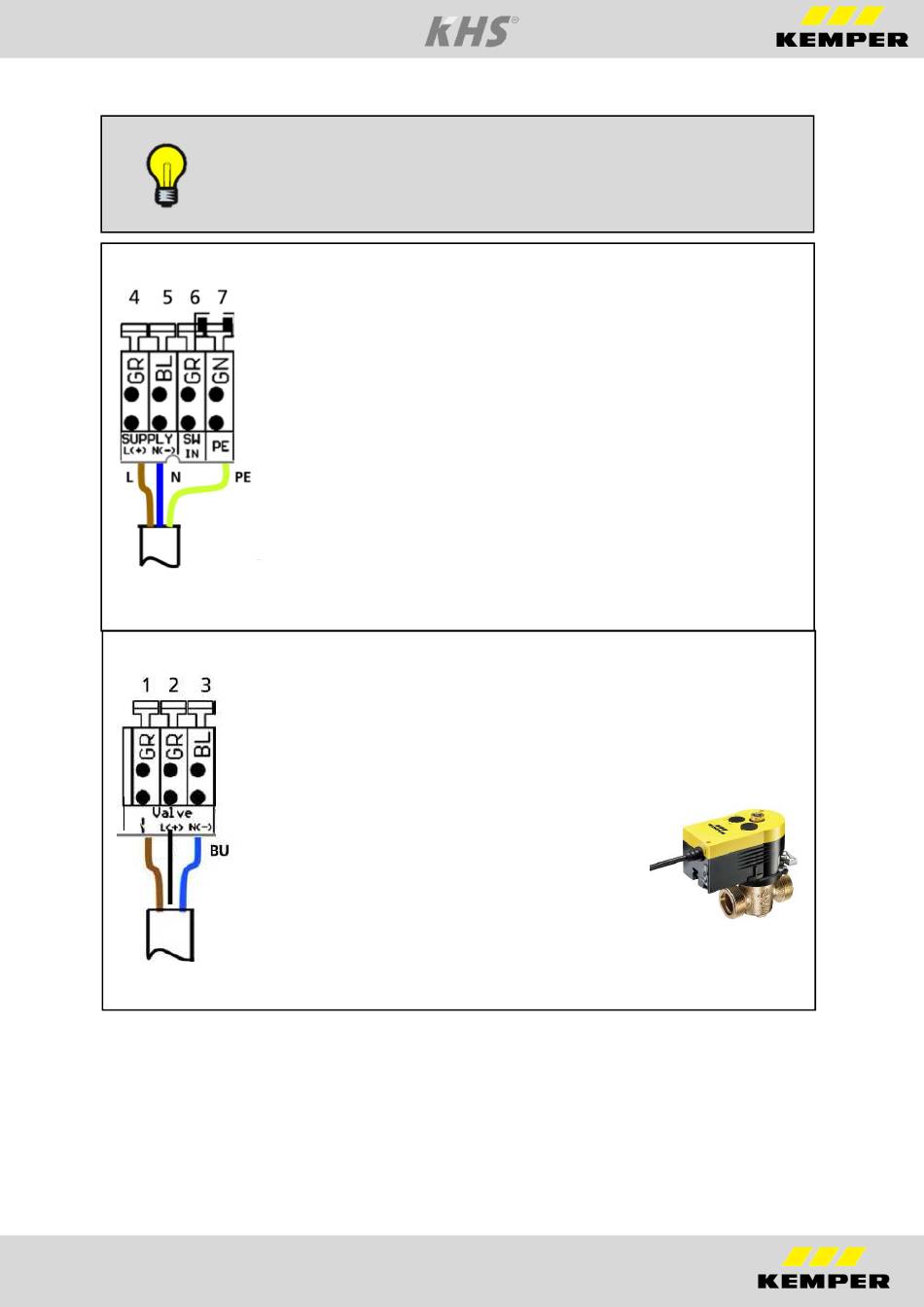

Ill. 6.3: Schematic representation of the power supply connection
6.2.2.2 Connection of KHS-VAV Maximum flow isolating ball valve with servo-drive
BN BN BN BN BK BK
BK BK
Ill. 6.4: Schematic representation of the connection of the KHS-VAV Maximum flow isolating ball valve
Manual KHS Mini System Control
Power supply: 230 V +/- 15% AC 50/60Hz
Connection: Terminals, L, N, PE
Line fuse max. 16A
BN = brown = L
BU = blue = N
GR = green = PE
BN = brown = 1
BK = black = 2
BU = blue = 3
9
(Figure 686 00)
