Configuration of -SLAVE- 1.1 (time flushing)
The KHS Mini System Control -SLAVE- 1.1 in this sample project is connected to a C-valve. To time-
control exchange the water, a line needs to be added with the "Time control" program. When the
program is selected, define the times. In the "Time control" program, a starting time and the duration of
the water exchange need to be stated. Furthermore, the desired weekday can be selected through a

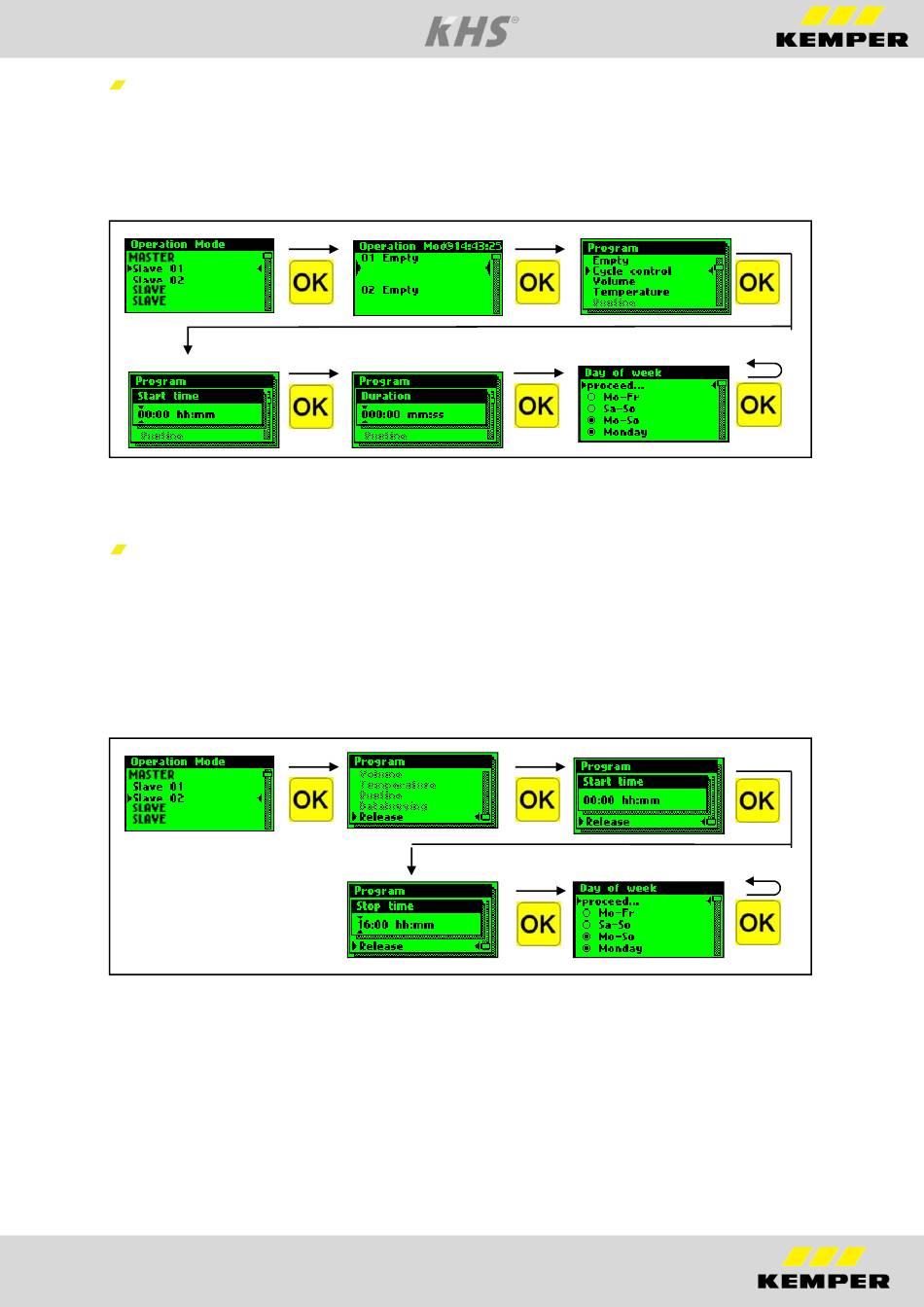

dropdown list. Illustration 8.37 shows the configuration of a "Time control" operating mode.
03 03
03 03
04 04 04 04
Ill. 8.37 Configuration of time flushing
Configuration of -SLAVE- 1.2 (safeguard)
The KHS Mini System Control -SLAVE- 1.2 in this sample project is planned as a safeguard SLAVE.
The safeguard is always activated using a water sensor. Use the "Release" program to trigger the
linked valve. That way you only have water pressure in the system when it is needed. That in turn
achieves more protection against water damages. When a line is selected with the "Release" program,
the times can be defined. A starting and stopping time need to be defined for the release.
Furthermore, the desired weekday can be selected through a dropdown list. Illustration 8.38 shows the
configuration of the "Safeguard" operating mode. If no operating mode is configured, the safety valve
is open the whole day and only reacts to a signal from the water sensor.
03 03 03 03
04 04 04 04
Ill. 8.38 Configuration of a safeguard
