8.1.4.8 Network setup

To establish a connection between the PC and the KHS Mini System Control -MASTER 2.0-, the
required network configurations can be set up in the "Network setup". The connection can be made
through a direct connection between the PC and -MASTER- or a network link. The functions are

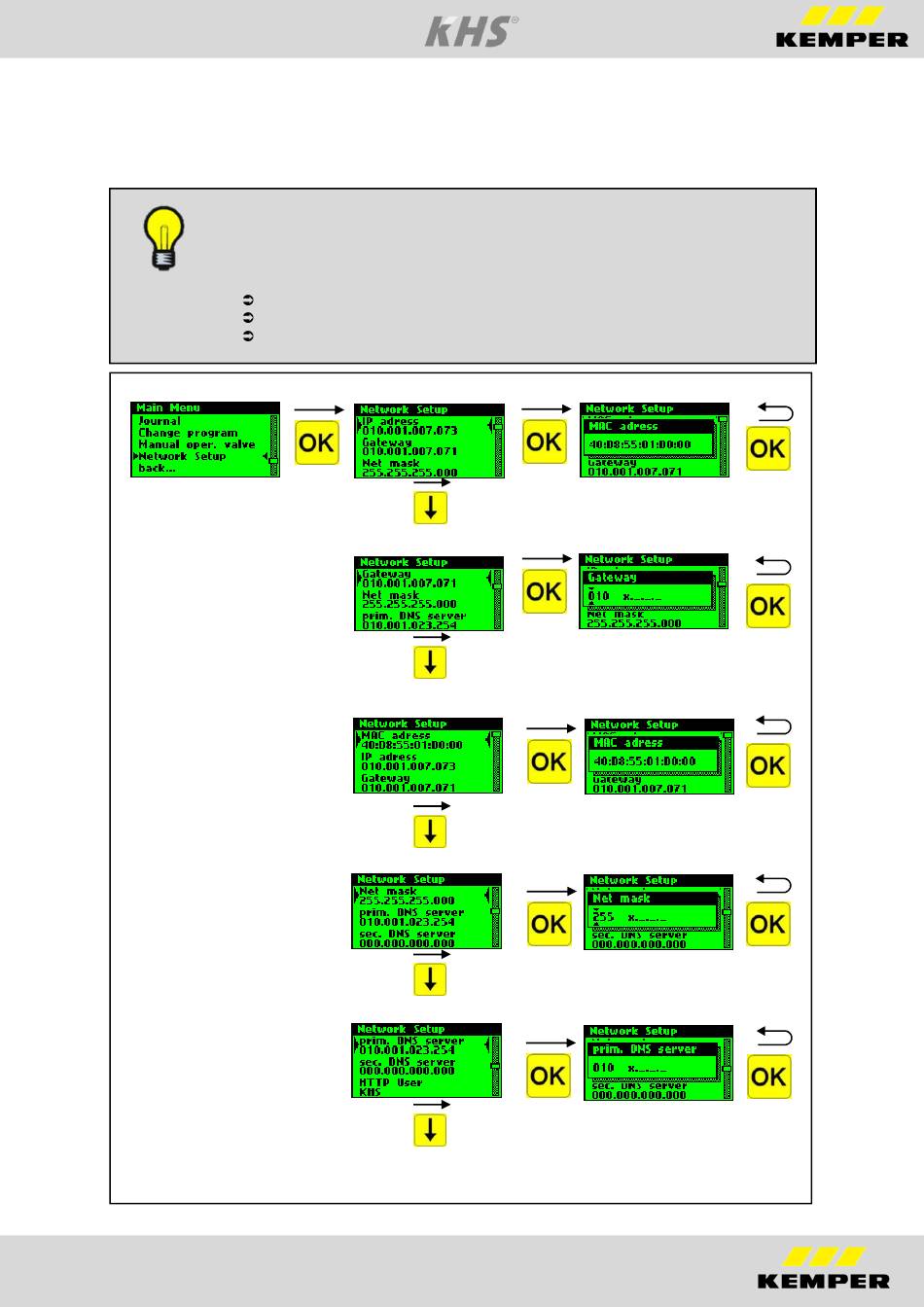

simulated in Illustration 8.45.
Note:
You can obtain the corresponding parameters for linking in your network from your
system administrator.
The following parameters are configured as factory defaults:
Network setup
Manual KHS Mini System Control
IP address: 10.1.23.150
Subnet: 255.255.255.0
Gateway: 10.1.23.1
Setting the IP address
Set the gateway
Set the MAC address
Set the network mask
Prim. DNS server setup
For more information see the following page
