6.
Assembly
Warning notice:
Allow only certified electricians to assemble and install electrical equipment.
Danger of fatal electric shock.
Very strong magnetic fields can impair the functioning. Interferences can be prevented by following the
installation rules below:
Do not mount the controller and the sensors near inductive loads (motors, transformers,
contactors, etc.).
Feed through a separate mains voltage circuit (if necessary, with an a.c. mains filter).
Inductive loads must be equipped with safeguards to reduce overvoltages (varistors, RC-
filter).
Attention:
When using the controller together with other devices in one system, check to
see if that causes interference signals to be emitted.
6.1.
Wall mounting
The KHS Mini System Control is intended for wall installation. The housing has 4 each ø 4mm
mounting holes in a clearance of w = 188mm and h = 88mm. Additional dimensions are listed in
Chapter 10. To mount, open the cover and screw the device tightly to the wall. After mounting the
housing, make the required electrical connections.

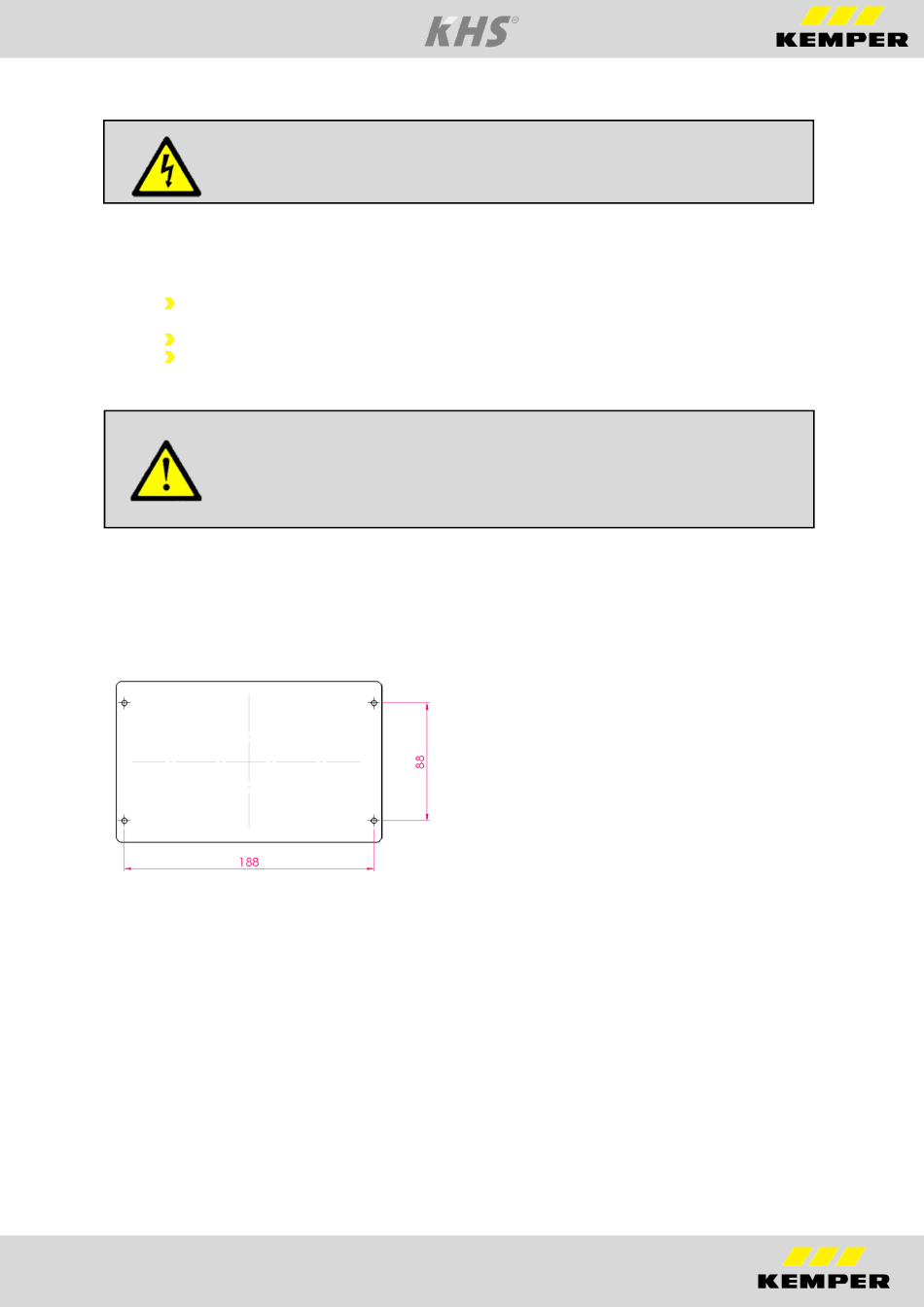

Ill. 6.1 Illustration of the mounting holes for wall installation
Manual KHS Mini System Control
7
