The following configuration steps are discussed based on the sample project from Illustration 8.1
(Page 17). For an overview of the system commissioning, Illustration 8.34 is presented.

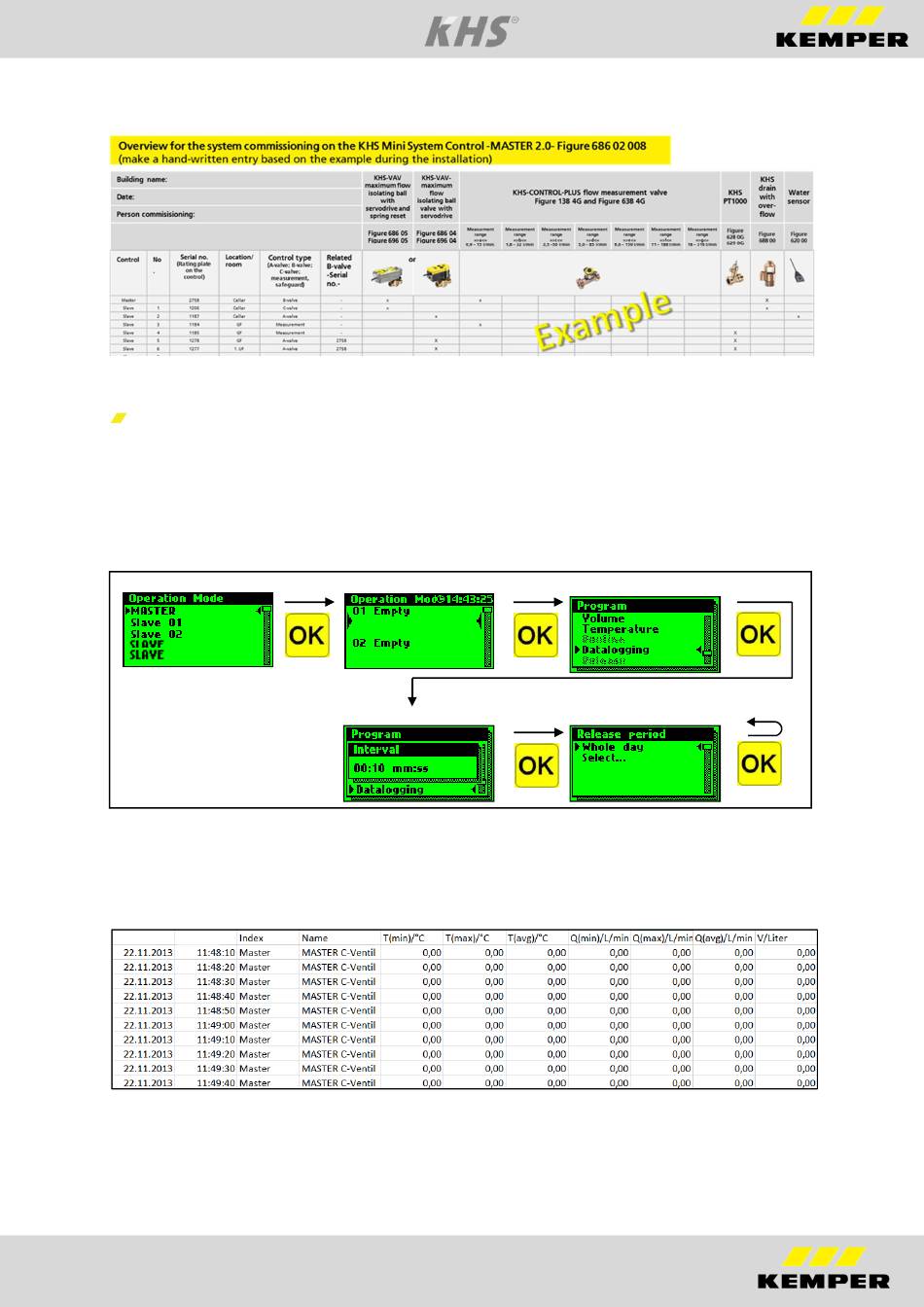

Ill. 8.34 Overview for the system commissioning of the sample project
Configuration -MASTER- (datalogging)
The KHS Mini System Control -MASTER 2.0- in the presented sample project is connected to a KHS-
CONTROL-PLUS flow measurement valve. To record the flow measurement valve measurement data
at the same time, a line has to be selected. Then select the "Datalogging" program. When a program
has been specified, define the times. The interval time states the storage rate of the measurement
values. "Whole day" data can be logged or fixed times can be defined through a starting and stopping
time. Illustration 8.35 shows the configuration of a "datalogging" operating mode.
03 03 03 03
04 04
04 04
Ill. 8.35 Configuration of datalogging
Illustration 8.36 shows an exemplary part of a CSV log file. In the written log file you can find a detailed
listing of the entire measured data. They are sorted by date, time, index, name and the measured data
of the connected measurement valve. Up to 12 million lines can be saved.
Date Time
Ill. 8.36 Illustration of a part of the CSV log data
