Detailed overview

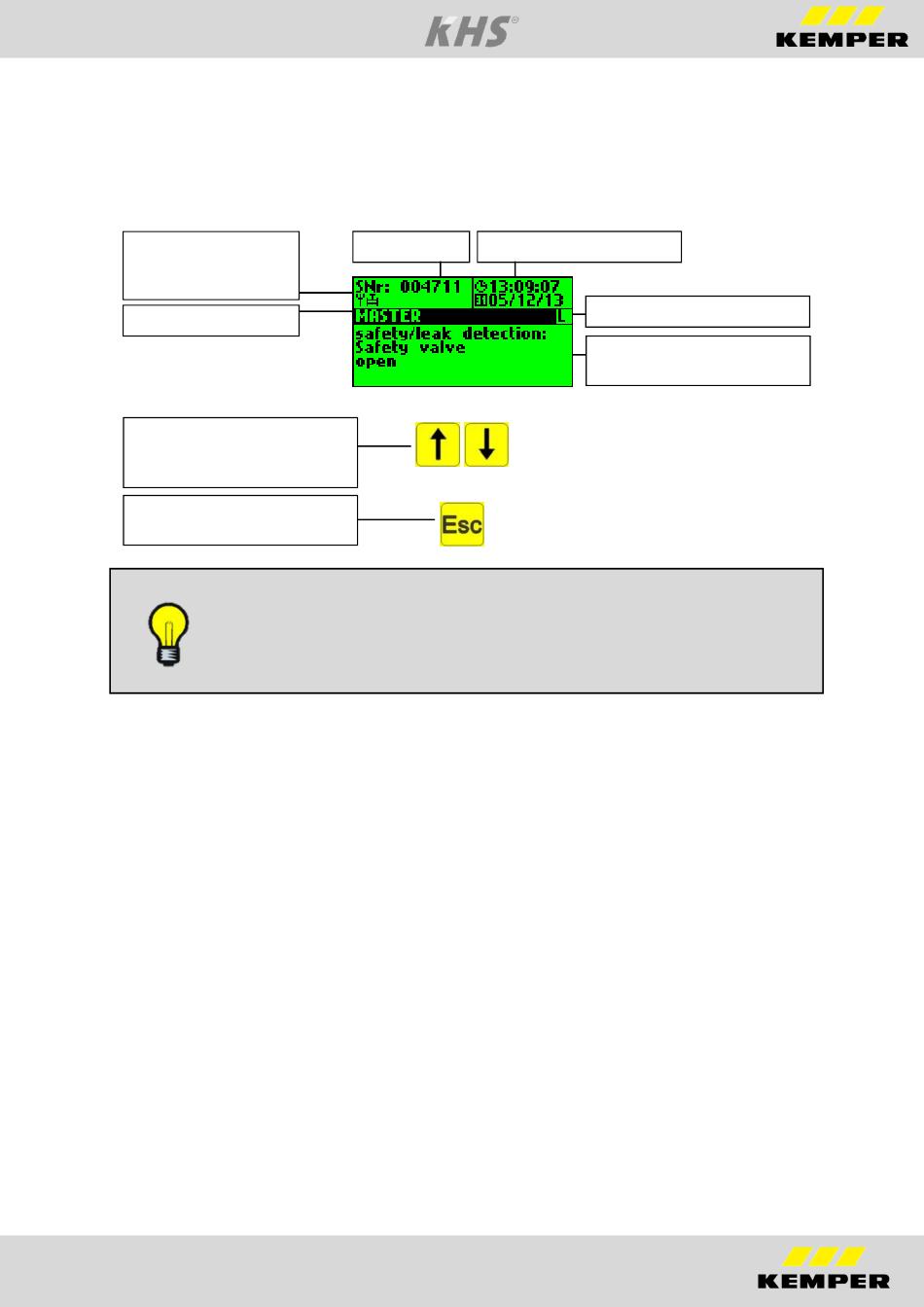

The following illustrations clarify the "Detailed overview" menu interface of the KHS Mini System
Control -MASTER 2.0-. The illustrations show the "Detailed overview" based on an exemplary
configuration of a system with one KHS Mini System Control -MASTER 2.0- and two KHS Mini System
Controls -SLAVE-.
Serial number of the
controller including
symbols
Name of the
controller
"Scroll back/forwards"
changes between the active
controllers
1x "ESC" returns to the
general plan
Legend symbols
Water exchange activated:
Manual KHS Mini System Control
Serial number Time and date
Ill. 8.6 Detailed overview
Valve symbol is framed
Time control
Volume control
Temperature control
20
"L" for leakage/protection
Controller-specific detailed
overview
-> Time symbol flashes
-> Volume symbol flashes
-> Temperature symbol flashes
