7.3 Hardware Description
1
2
3
4
5

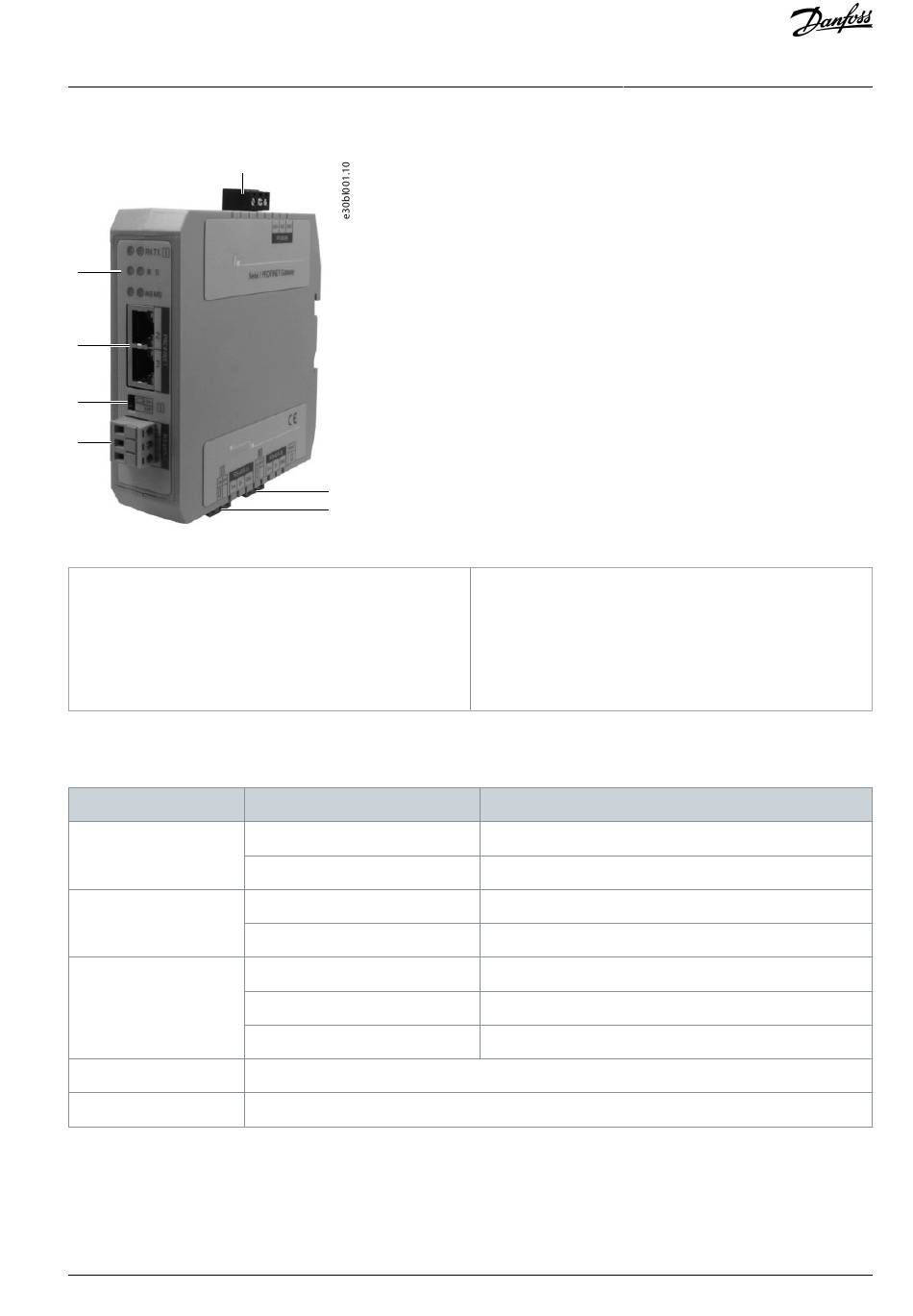

Illustration 32: Components of the PROFINET I/O Option
1
Power supply terminal
2
Indicator lights
3
Ethernet terminals
4
Terminal resistor switch
7.3.1 Indicator Light Definitions
Table 50: Indicator Light Definitions
Indicators
Serial I TX
Serial I RX
Serial II/III
MS
NS
Danfoss A/S © 2023.09
7
6
State
Green blinking
OFF
Green blinking
OFF
Green blinking
Red blinking
OFF
See below table
See below table
5
Serial terminal I
6
Serial terminal II
7
Serial terminal III
Description
Serial port sending data
No data is sent
Serial port receiving data
No data is received
Serial port sending data
Serial port receiving data
No data is sent or received
AQ454734633756en-000101 / 172K1112 | 73
PROFINET I/O
