Audio Amplifier Wiring
Figure 55: Using a Speaker Isolator
Note: When using a speaker isolator (SIS-204 or SISA-
204 for use in Canada only), jumper JP1 (top left-
hand corner, component side) must be cut on the
QAA-5230-70/25 and on the QAA-5160-70/25.

QAA-5230S-70/25 Amplifier Wiring

QAA-5230S-70/25 dual 30 watt amplifier has two 30 watt amplifiers. Each amplifier has two Class B 15 watt
supervised speaker circuits. Each circuit is wired to provide two separate speaker zones on the same floor. Amplifier
is set to 70V, if 25V is required, remove orange molex connector cable labelled MD-787 and replace with blue molex
connector cable labelled MD-788.

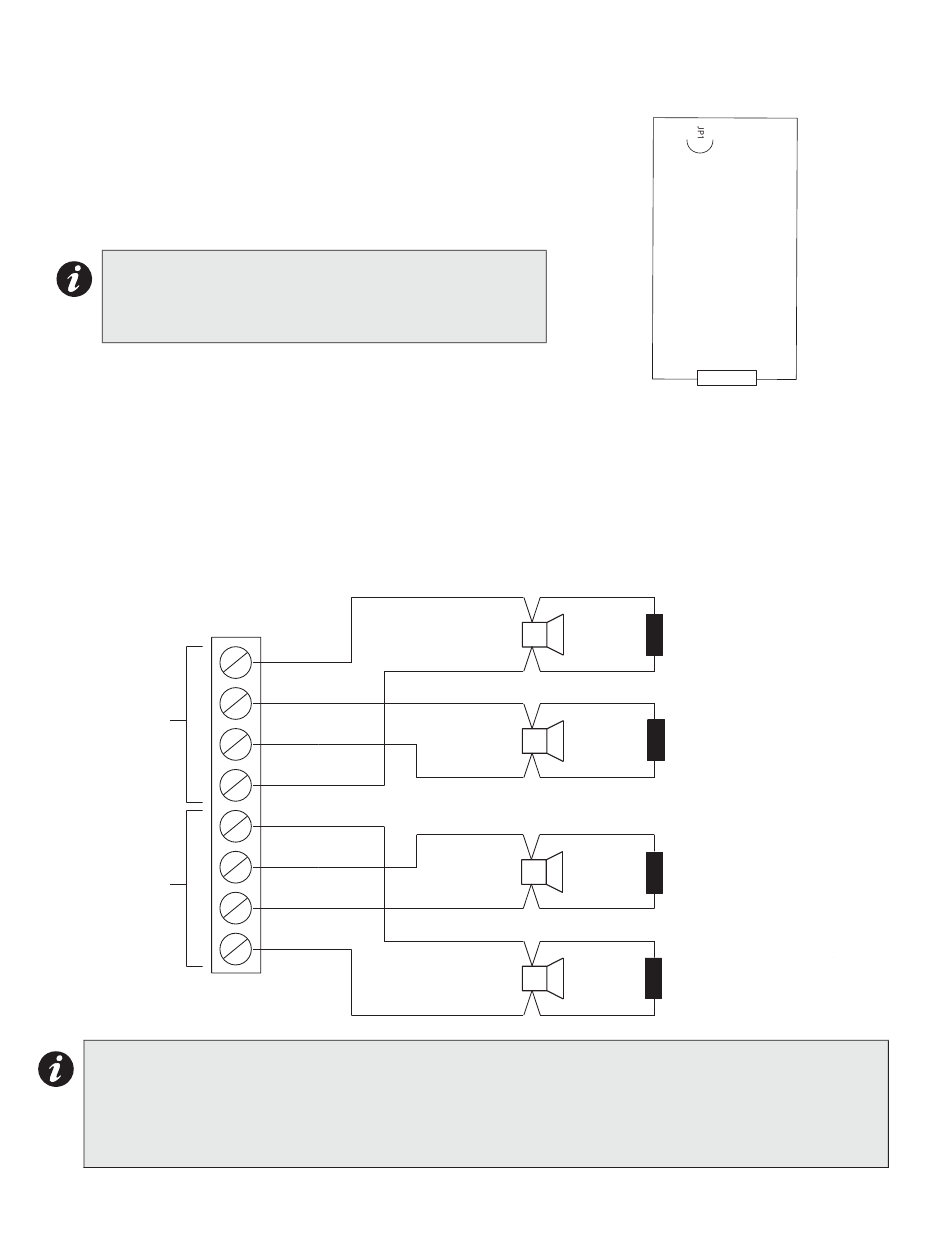

Figure 56: QAA-5230S-70/25 Wiring
QAA-5230S-525-70/25
TERMINAL BLOCK
CLASS B
30 WATTS
MAX EACH
ZONE
CLASS B
30 WATTS
MAX EACH
ZONE
Notes:
• All circuits are power limited and supervised.
• There are six fuses on this board. Two are 8A fast blow and four are 1/2A fast blow for the 70V version
and two are 8A fast blow and four are 1.25 A fast blow for the 25V
• See speaker wiring chart for wire gauge selection.
88
1/2 OF
-
ZONE B
8
25 Watts
-
7
+ 1/2 OF
6
ZONE B
5 Watts
5
+
4
-
3
- 1/2 OF
ZONE A
2
+
5 Watts
1
+
1/2 OF
ZONE A
25 Watts
CUT JUMPER JP1 WHEN USING A SPEAKER ISOLATOR
1
QAA-5230-70/25 AND QAA-5160-70/25 AMPLIFIERS
22 K, 1W ELR
MODEL MP-302
SPEAKER
MANUFACTURED BY
MIRCOM
22 K, 1W ELR
MODEL MP-302
SPEAKER
MANUFACTURED BY
MIRCOM
22 K, 1W ELR
MODEL MP-302
SPEAKER
MANUFACTURED BY
MIRCOM
22 K, 1W ELR
MODEL MP-302
SPEAKER
MANUFACTURED BY
MIRCOM
