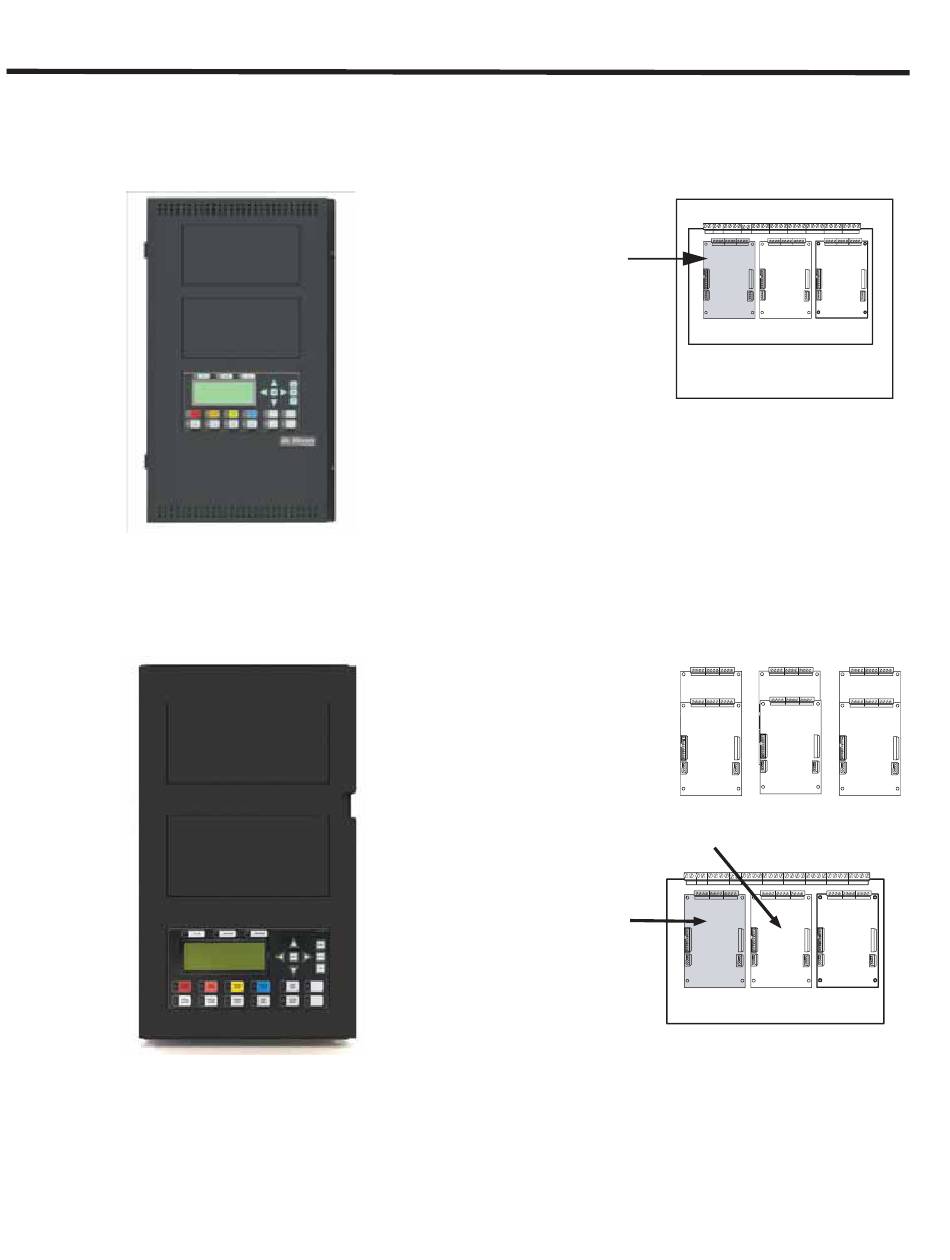

Display and Adder Modules Mounting Locations
FX-2003-12NDS Compact Main Chassis
Mounts in the BBX-1024DS Enclosure and supports three adder modules.
Interior View
FX-2003-12NXTDS Mid-size Main Chassis
Mount into the BBX-1024XT enclosure, and supports two display modules and
Interior View
22
Inside Backbox View
Slot 3 is reserved
for PR-300 or
UDACT-300A. If
not required, this
slot can be used to
mount any of the
adder modules.
The recommended
mounting position is 2
for the FNC-2000. The
FOM-2000-SP board, if
used, is mounted over
the FNC-2000 board.
Inside Backbox View
Slot is reserved for FNC-2000. If
not required, this slot can be
used to mount any of the adder
modules.
Slot is reserved for
PR-300 or UDACT-300A
If not required, this slot
can be used to mount
.
any of the adder
modules.
3
2
1
FX-2000N Main Board
FX-2000 Main Board
6
5
9
8
1
3
2
FX-2003-12NXTDS Main Board
4
7
