Mircom FleXNet FNC-2000 Installation And Operation Manual page 25

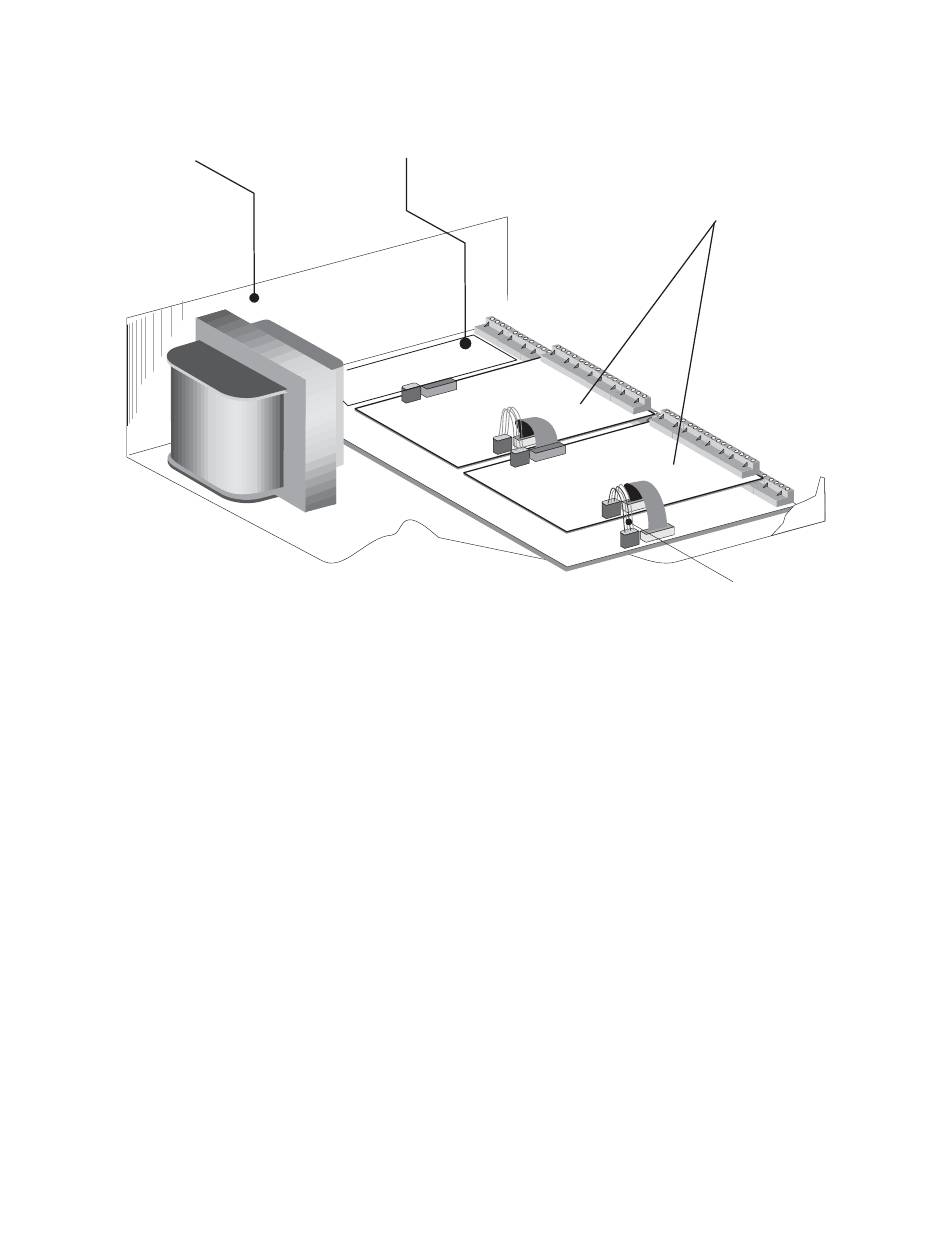

Figure 7: Module Mounting Locations View #2
Main Chassis
FX-20XX-12N/DS
FNC-2000 Fire Network Controller Module
This module is required in the main lobby and one per node. It mounts over the main fire alarm board, preferably in
position 2. Use the four 2" spacers and four screws to secure the FNC-2000 to the main fire alarm board.
Provision for PR-300 or
UDACT-300A
2
MD-575 Long Ribbon Cable
MD-579 Short Power Cable
MD-580 Long Power Cable
TM
FleX-Net Installation and Operation Manual
FNC-2000 in position 2
and other Adder Module
in position 1
1
MD-579
21
