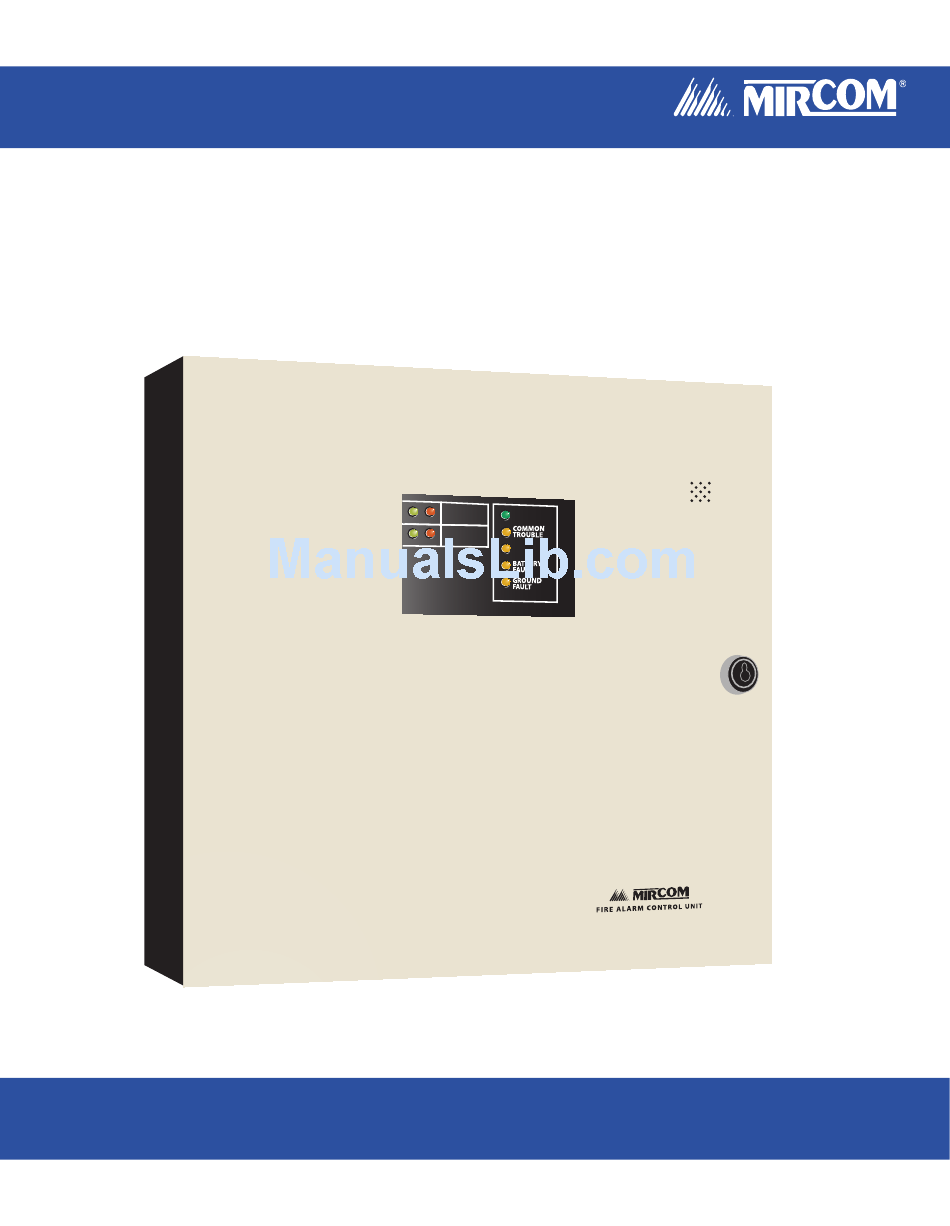

- Page 1 Advanced Life Safety Solutions FA-102T Fire Alarm Control Panel A.C. ON SIGNAL SILENCED LT-514 Rev.7 Installation and Operation Manual December 2009...
-
Page 3: Table Of Contents
FA-102T Installation and Operation Manual Table Of Contents Table Of Contents ........................i List of Figures.......................... ii Introduction ..........................1 Mechanical Installation ......................1 Function Selection ........................1 Wiring ............................2 Detection Zone........................2 Signal Zone .......................... 2 Alarm and Trouble Relays....................2 Remote Annunciation...................... -
Page 4: List Of Figures
List of Figures List of Figures Figure 1: Backbox and flush trim mounting details .............. 5 Figure 2: Circuit Board Layout ..................... 6 Figure 3: Detection and signal wiring .................. 7 Figure 4: Wiring table for detection zone ................8 Figure 5: Wiring table for bells and horns ................ -
Page 5: Introduction

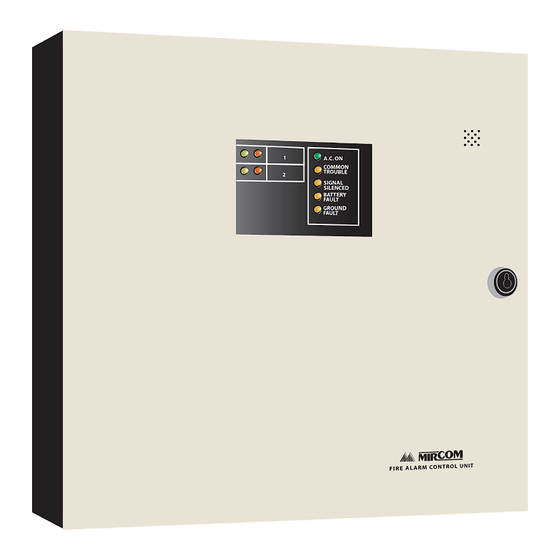

FA-102T Installation and Operation Manual Introduction The FA-102T is a supervised two-zone 24VDC Fire Alarm Control Panel. The panel provides the following features: • Two Class B detection zones • One Class B signal zone, 1.25A • DIP switch selectable signal circuit outputs such as temporal or steady •... -
Page 6: Wiring
Wiring DIP switch DSW1 is used to set the preferred signal zone 1 output, the signal silence inhibit, and the common trouble flash rate. The default output for the signal zone is temporal code. not used DIP switch DSW1 Signal Zone Trouble Buzzer and LED ON - steady ON - steady buzzer and LED... -
Page 7: Remote Annunciation
FA-102T Installation and Operation Manual Remote Annunciation Annunciation outputs are provided for remote trouble indicator and buzzer. Refer to Figure 6 on page 9 for wiring instruction. A.C. Power and Batteries The A.C. power is connected to the terminal block above the transformer. -
Page 8: Sequence Of Operation
Sequence of Operation Sequence of Operation Refer to Figure 2 on page 6 for the location of indicators and controls. Normal All indicators are normally OFF except for the green A.C. On LED. Alarm A red zone alarm LED will illuminate steadily for an incoming alarm. Signal Silence If the 60 second signal silence inhibit is selected, the signal cannot be silenced for 60 seconds after an alarm initiation. -
Page 9: Figure 1: Backbox And Flush Trim Mounting Details
Figure 1: Backbox and flush trim mounting details ” ” ” ” Optional flush mounting trim (model FA-102TR) Four ” dia. ” ” ”... -
Page 10: Figure 2: Circuit Board Layout
Figure 2: Circuit Board Layout TRBL REMOTE ANNUNCIATION AUX. SIGNAL DETECTION ZONE ALARM RELAY TRL TRB A.C. RELAY BUZZER SIL. ZONE 1 SIL. A.C. ON ALARM TRBL. ZONE 1 TRBL. ZONE 2 SIL. ALARM TRBL. SIG. SIL. ZONE 2 BATT. SIG.1 RESET BATTERY... -
Page 11: Figure 3: Detection And Signal Wiring
FA-102T Installation and Operation Manual Figure 3: Detection and signal wiring Legend Heat Smoke Pull Station Bell Detector Detector Alarm threshold current is 21 mA. Maximum loop resistance is 100 ohms. Detection zone 1 22VDC 3mA STBY 3.9K 5mV ripple 1/2W 50 mA max. -
Page 12: Wiring Tables And Information
Wiring Tables and Information Wiring Tables and Information Figure 4: Wiring table for detection zone Wire Gauge Maximum Wiring Run to Last Device (ELR) (AWG) 2990 4760 1450 7560 2300 12000 3600 19000 5800 30400 9200 Note: Maximum loop resistance should not exceed 100 ohms. Figure 5: Wiring table for bells and horns Signal circuits are rated for 1.25 amperes each. -
Page 13: Figure 6: Alarm And Trouble Relay Contacts And Remote Annunciation Wiring Instructions
FA-102T Installation and Operation Manual Figure 6: Alarm and trouble relay contacts and remote annunciation wiring instructions N.O. Auxiliary common alarm relay contacts 28VDC, 3A (resistive) N.C. Cut JW3 for N.O. Common trouble relay contacts 28VDC, 3A Cut JW4 for N.C. -
Page 14: Appendix A: Compatible Devices
• Whether mixing different models of compatible smoke detectors, or using the same model on the same Circuit, total standby current of all detectors must not exceed 3 Make Model / Base Make Model / Base Make Model / Base Mircom Cerebrus Pyrotronics Fenwal MIR-525 D1-2... -
Page 15: Underwriters' Laboratories Of Canada (Ulc) Canadian Signal Zone Compatible Devices
FA-102T Installation and Operation Manual Underwriters’ Laboratories of Canada (ULC) Canadian Signal Zone Compatible Devices Make Model Mircom BL-6B... - Page 16 Appendix A: Compatible Devices Page Intentionally Left Blank...
- Page 17 FA-102T Installation and Operation Manual Page Intentionally Left Blank...
-
Page 18: Appendix B: Battery Calculations (Selection Guide)
Power Requirements (All currents are in amperes) Total Model Number Description Standby Alarm Total Alarm Standby Fire Alarm, 2 Det, 1 FA-102T 0.076 0.135 Remote Trouble RTI-1 0.035 0.035 Indicator ♦ 2-Wire Smoke Detectors 0.090... -
Page 19: Warranty & Warning Information
FA-102T Installation and Operation Manual Warranty & Warning Information Warning Please Read Carefully Note to End Users: This equipment is subject to terms and conditions of sale as follows: Note to Installers This warning contains vital information. As the only individual in contact with system users, it is your responsibility to bring each item in this warning to the attention of the users of this system. - Page 20 •Software Most Mircom products contain software. With respect to those products, Mircom does not warranty that the operation of the software will be uninterrupted or error-free or that the software will meet any other standard of performance, or that the functions or performance of the software will meet the user’s requirements.
-
Page 21: Limited Warranty
Mircom management, no credits will be issued for custom fabricated products or parts or for complete fire alarm system. Mircom will at its sole option, repair or replace parts under warranty. Advance replacements for such items must be purchased. -
Page 22: Disclaimer Of Warranties
Products which Mircom determines to be repairable will be repaired and returned. A set fee which Mircom has predetermined and which may be revised from time to time, will be charged for each unit repaired. - Page 24 Canada U.S.A. © Mircom 2009 Printed in Canada 25 Interchange Way 4575 Witmer Industrial Estates Subject to change without prior notice Vaughan, ON L4K 5W3 Niagara Falls, NY 14305 Tel: 1-888-660-4655 Fax: 1-888-660-4113 www.mircom.com Tel: 905-660-4655 Fax: 905-660-4113...
