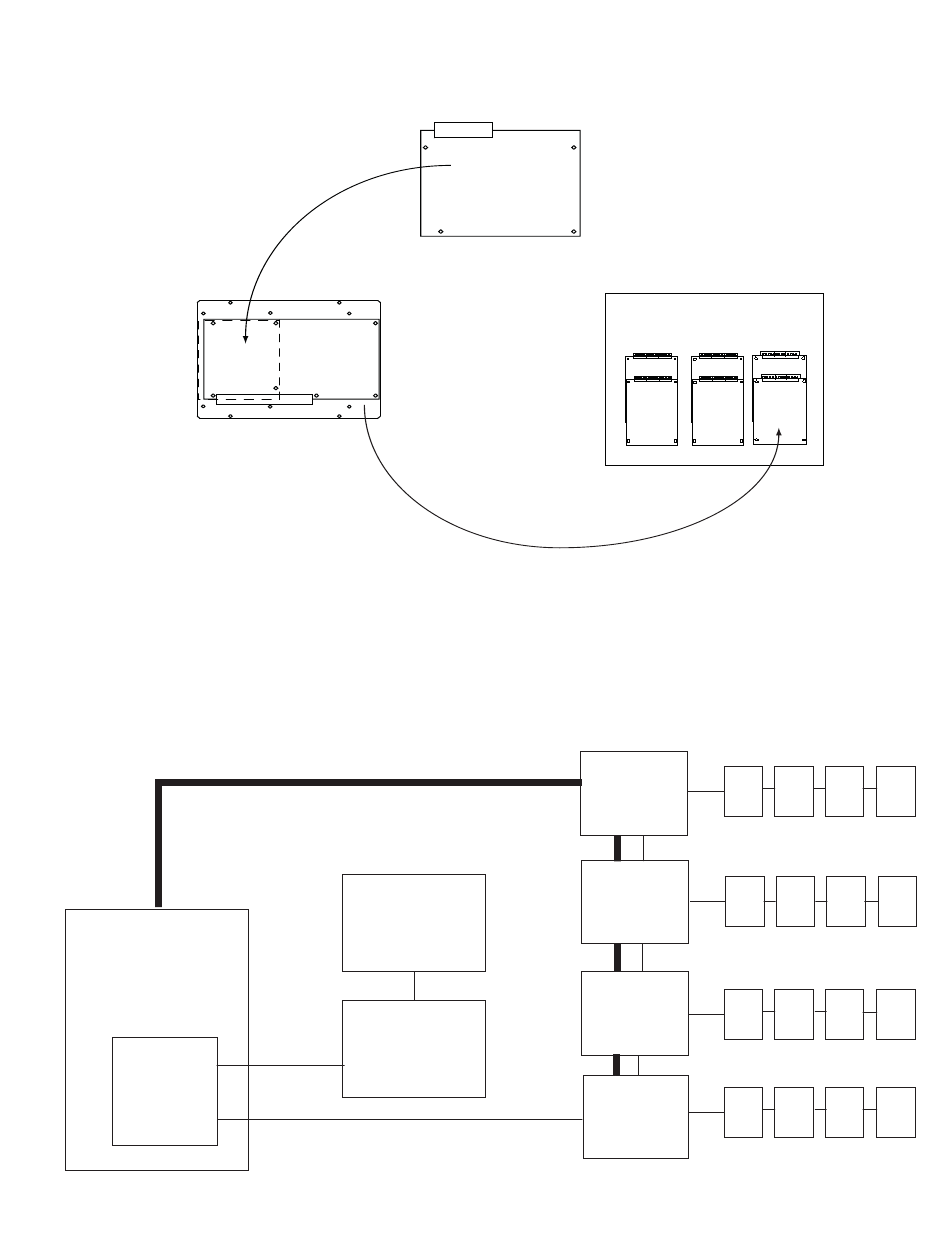

Figure 73:
Mechanical Installation of the TNC-5000 within the BB-5008 and BB-
5014
Typical Addressable Telephone Set-up
The typical addressable telephone set-up is with an addressable fire alarm system using the TNC-5000 and from
the TNC-5000 to the Master Telephone (QMT-5302N/V). The selector panels (QAZT-5302DS) are connected to the
Master Telephone by cable only. The MIX-M500FP(A) Control Modules are connected to the addressable loop from
the FX-2000N and to each other and the Master Telephone. Remote telephones are connected to the control
modules.
Figure 74:
Typical Addressable Telephone Set-up
FX-2000N
FIRE ALARM PANEL
TNC-5000
TELEPHONE
NETWORK
CONTROLLER
MODULE
TNC-5000 board
mounts over ANC-5000
board
ANC-5000
Addressable Loop
QAZT-5302DS
ADDRESSABLE
TELEPHONE
SELECTOR
QMT-5302N/V
ADDRESSABLE
MASTER
TELEPHONE
TNC-5000
Partial Interior View
(to right of main board)
Metal plate mounts
over positions 4 to 9
inclusive
MIX-M500FP(A)
CONTROL
MODULE
MIX-M500FP(A)
CONTROL
MODULE
MIX-M500FP(A)
CONTROL
MODULE
MIX-M500FP(A)
CONTROL
MODULE
TM
FleX-Net
Installation and Operation Manual
6
4
5
9
7
8
T
T
Remote Telephones
T
T
Remote Telephones
T
T
Remote Telephones
T
T
Remote Telephones
T
T
T
T
T
T
T
T
109
