Appendix I: FXMNS Used as a Mass Notification System (ACU)

The MNS portion of a complete Mircom FleX-Net
Enclosure (see Node 2 in figure below). The BBX-FXMNS includes a RAXN-LCD Annunciator which is designated
an ACU (Autonomous Control Unit) and a Master Microphone to provide emergency audio. Below the ACU is
another RAXN-LCD which annunciates the fire alarm system along with a Master Telephone for emergency use.
Below this is a display LCD such as the DSPL-420 or DSPL-2440 which may be used for service; this display will
show all messages. Up to seven FX-LOC(R)s can be connected to any MNS node.
The FX-LOC(R) Local Operating Console along with the FleX-Net
the Mass Notification System (MNS) UL 2572 requirements.
Applicable Standards: UL 2572, UL 864, NFPA 72, ULC

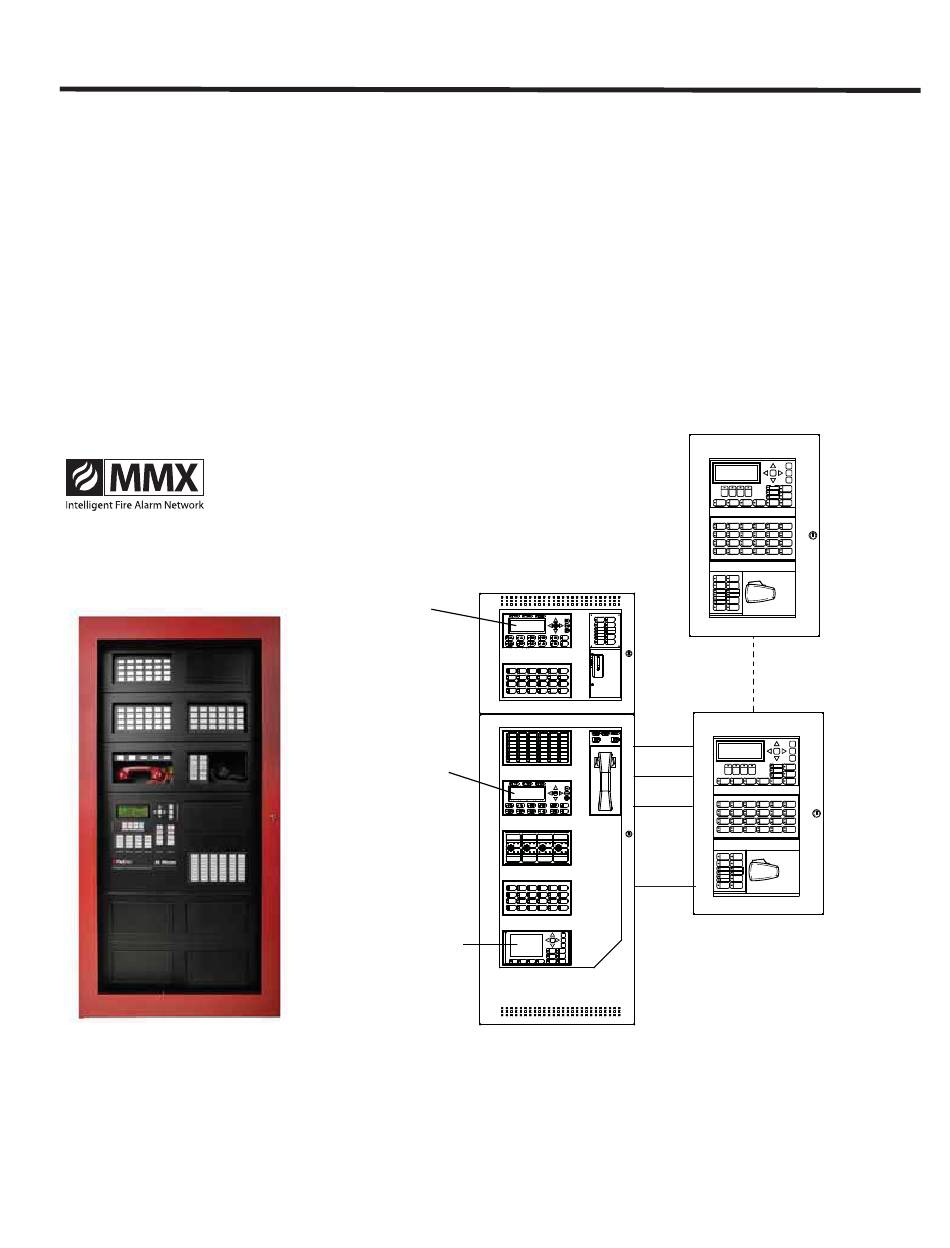

Figure 83: In-Building Mass Notification Sample System
IN-BUILDING MASS NOTIFICATION SYSTEM
Node 1
CACF
Central Alarm and Control Facility
TM
Network Fire Alarm system consists of a BBX-FXMNS
RAXN-LCD used as
part of ACU
(Autonomus Control
Unit)
RAXN-LCD used as
Fire Alarm Display
DSPL-2440 Graphic
Display used for service
Mass Notification System
TM
FleX-Net
TM
Network Fire Alarm provides compliance with
MMX-LOC (R) (#7)
Node 2
SLC
RS-485
24V DC
MIC &
PTT
MMX-FXMNS
Installation and Operation Manual
MMX-LOC(R)s
(Local
Operating
Control) can
be located on
each floor
MMX-LOC(R) (#1)
Up to 7 LOCs are
allowed per node
