Mircom FleXNet FNC-2000 Installation And Operation Manual page 40

Module Settings

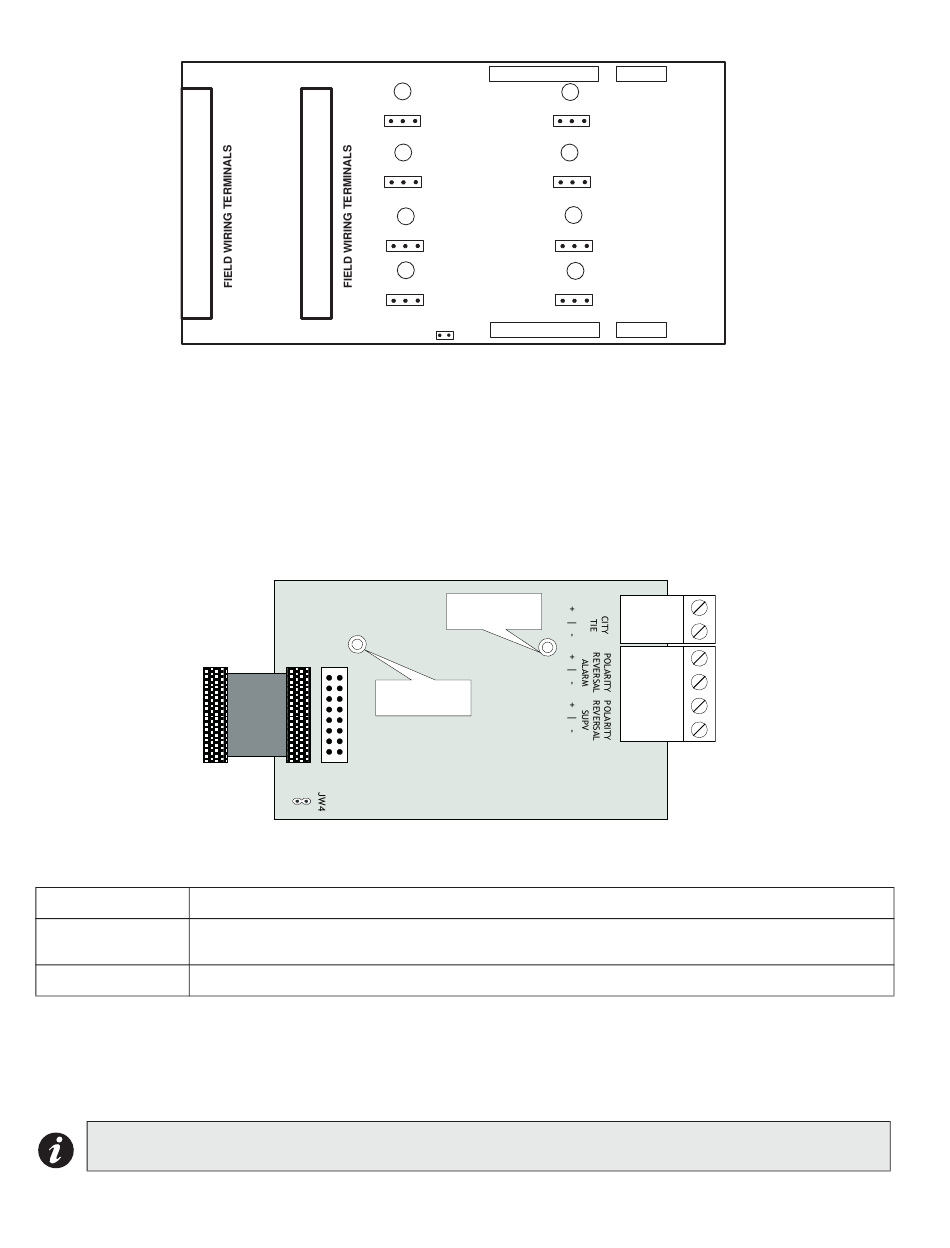

Figure 20: Hardwire Relay Adder Module (RM-1008A)
P2: Data cable to P6 or P5 of main fire alarm module, or to previous adder module.
P1: Data connector for next adder module.
P4: Power connector to P8 of main fire alarm module, or to previous adder module.
P3: Power connector for next adder module.
JW1: Remove continuity jumper if there are any more adder modules installed. If this is the last module installed, leave JW1 on.
JP1-JP8: Move jumpers from pins 1 and 2 to 2 and 3 to connect relay commons between two or more relays.
Polarity Reversal and City Tie Module (Model PR-300)
Figure 21: Polarity reversal and city tie module
The following hardware configuration must be performed before installing the PR-300.
Cable connects to P4 on the FX-2000N Main Fire Alarm Board
P1
Not used. If a UDACT-300A is used in conjunction with a PR-300, then the UDACT-300A
P2
ribbon cable P1 is connected to header P2 of the PR-300.
Jumper JW4 is always left intact.
JW4
The Alarm Transmit signal to the PR-300 can be programmed to turn OFF when signal silence is active (Not allowed by UL 864
refer to Configuration section). This allows the City Tie Box to be manually reset. On subsequent alarms the silenceable signals
will resound and the City Tie Box will be retriggered. Please refer to the Configurator for more information.
The Trouble Transmit signal to the PR-300 can be programmed to delay AC power fail. Please refer to the Configurator for more
information.
Note: Jumper JW4 on the FX-2000N main fire alarm board must be removed if a city tie module is installed.
36
P2
I4
3 2 1
JP4
I3
3 2 1
JP3
I2
3 2 1
JP2
I1
3 2 1
JP1
JW1
P1
Mounting hole for
#6-32 screws
P1 P2
Mounting hole for
#6-32 screws
Table 5: PR-300 jumper settings
P4
I8
3 2 1
JP8
I7
3 2 1
JP7
I6
3 2 1
JP6
I5
3 2 1
JP5
P3
