UDACT-300A MAIN BOARD:
There are two jumpers on the UDACT-300A which are used for operation/configuration purposes. Jumper JW1 is
used to reset the default passcode. Jumper JW2 is required for configuring (which can be done using the FX-2000N
Configurator Software) the UDACT-300A. Refer to Figure 22 below for location of jumpers, cable connections,
pushbutton and LEDs. Table 6 following, provides a description of the user items on the UDACT-300A.

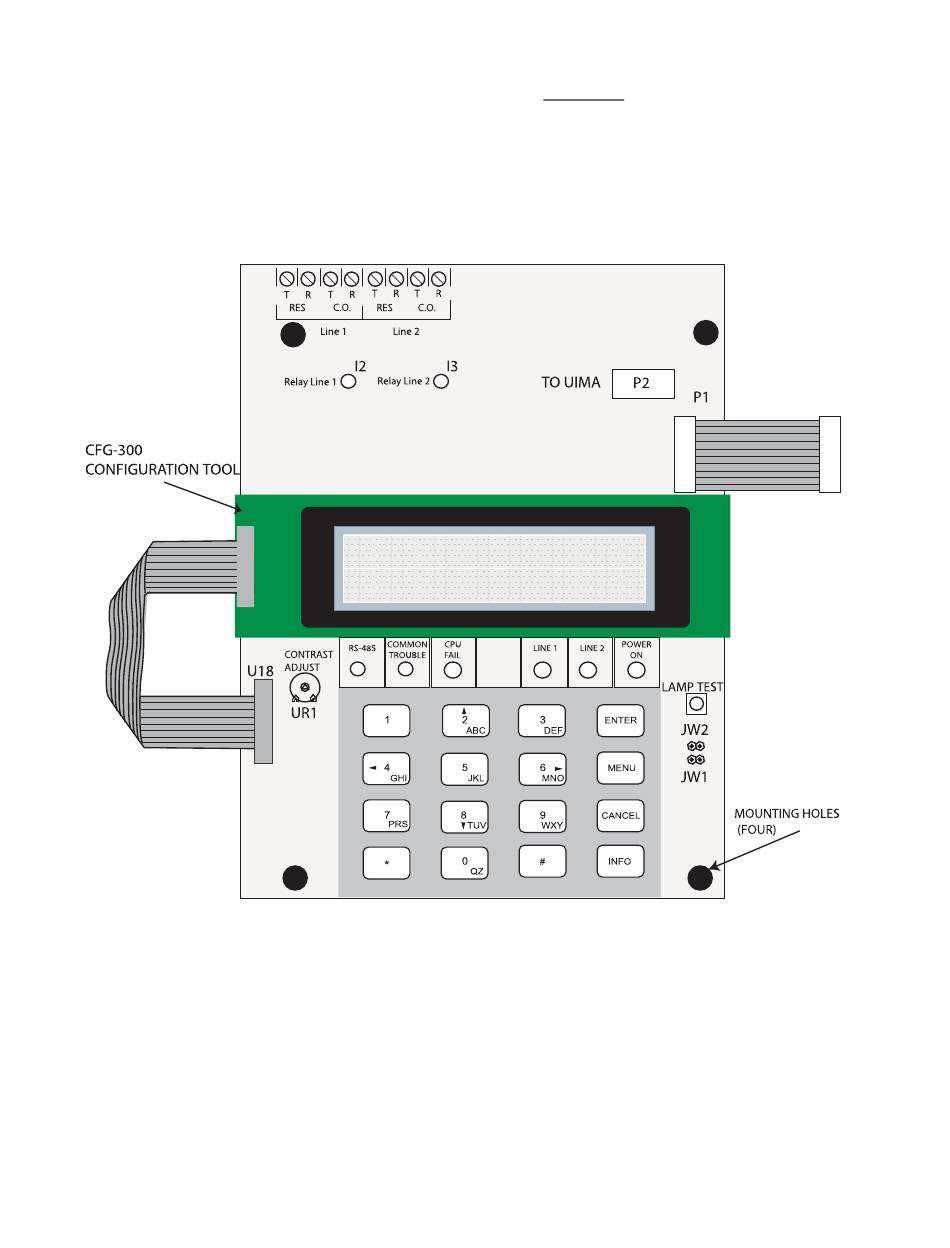

Figure 22: UDACT-300A Board Layout
SYSTEM NORMAL
13:21 MON
2016-02-08
TM
FleX-Net
Installation and Operation Manual
CONNECT RIBBON
CABLE FROM P1
TO MAIN FIRE
ALARM CONTROL
BOARD
37
