Lobby Enclosures
The QMP-5101N paging and QMT-5302N telephone control modules fit into the BB-5008 and BB-5014 lobby
backboxes. All selector panels mount into the BB-5008 and BB-5014 backboxes also. Below find the dimensions for
both the backboxes.

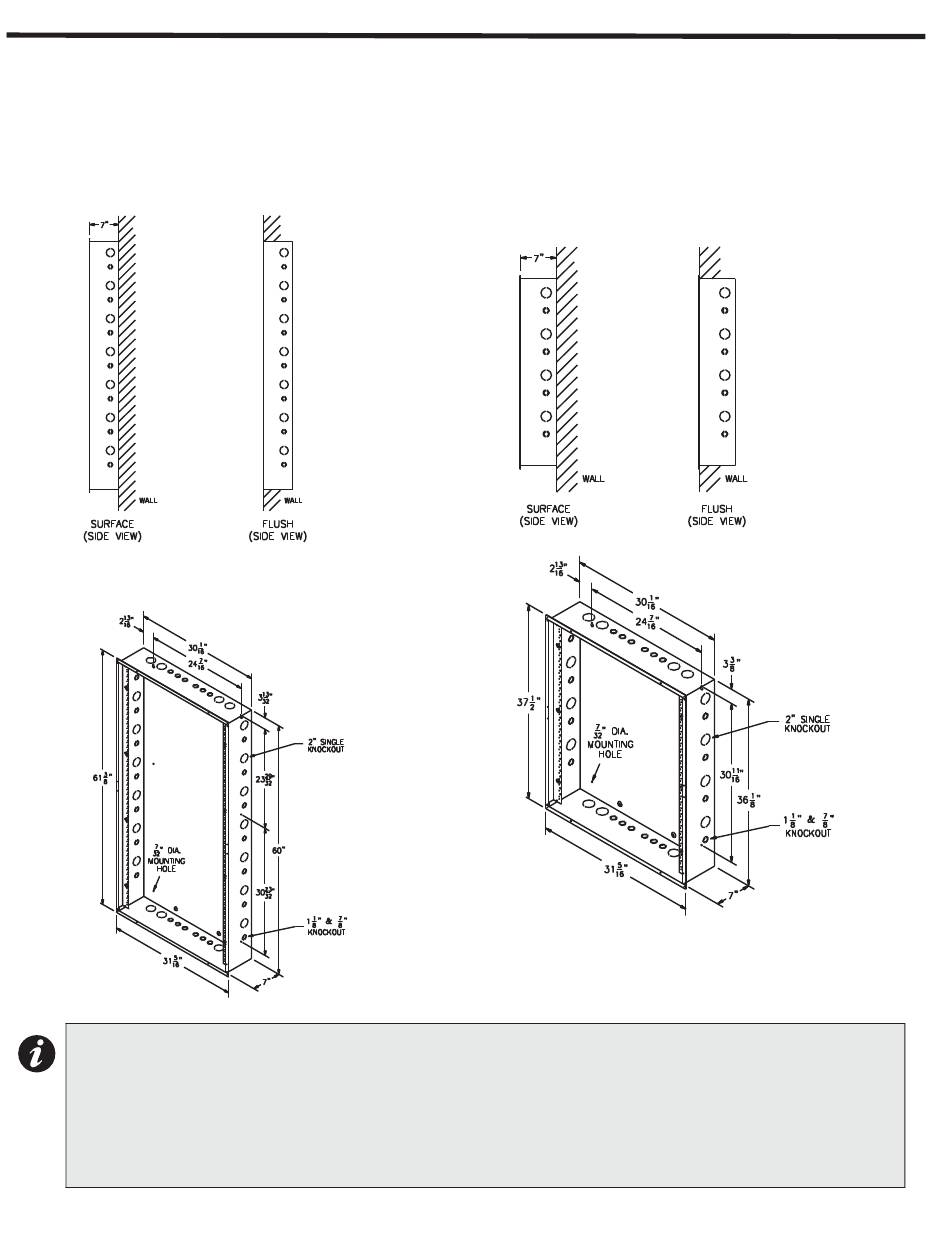

Figure 64:
BB-5008 and BB-5014 Backboxes
BB-5014 Lobby Backbox
Notes:
• Material: 16GA (0.059") cold rolled steel.
• Finish: painted.
• Allow 4" gap between flanges of the backboxes when installing side by side.
• Door is not shown.
• For white door order DOX-50014M and DOX-5008M
• For red door order DOX-5014MR, and DOX-5008MR
98
BB-5008 Lobby Backbox
